Component Tests and General Diagnostics

Parking Aid - Video

Component Test - Video Camera

Fusion/MKZ

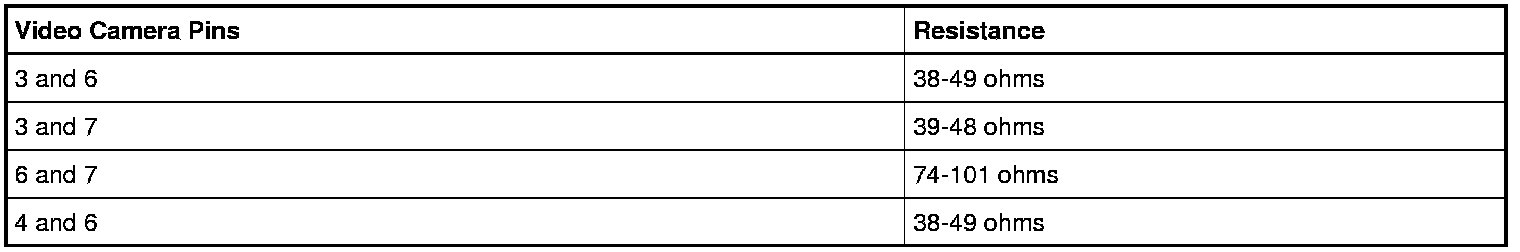

Measure the resistance between the video camera pins, component side, as follows:





If the resistance values for the video camera are within the specifications listed, the video camera is functional at this time.

If the resistance values for the video camera are not within the specifications listed, the video camera is inoperative at this time. Install a new video camera. Refer to Video Camera . Test the system for normal operation.
