Register - LH
Register - LH
Register - LH, MKZ

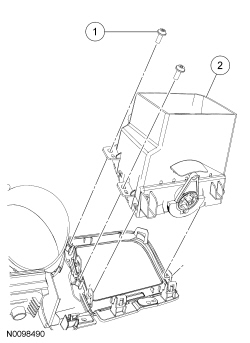

Removal and Installation
1.
Remove the instrument cluster finish panel.
2.
Remove the 2 LH instrument panel register screws.
3.
Remove the LH register.
4.
To install, reverse the removal procedure.
