Fuel Pump: Service and Repair
Fuel Pump Module - All Wheel Drive (AWD)
Removal and Installation
WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.
WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE: Vehicles with an inaccurate or inoperable fuel gauge, follow the instructions for draining a fuel tank with more than one-half of a tank of fuel.
All vehicles
1. Release the fuel system pressure.
2. Disconnect the battery ground cable.
3. Remove the rear seat lower cushion.
2.5L and 3.5L vehicles with more than one-half of a tank of fuel
4. NOTE: The supplemental refueling adapter is located in the luggage compartment.
Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel(TM) (capless) fuel tank filler pipe until the tube enters the fuel tank.
5. NOTE: This step is to remove approximately one-half tank of the fuel from a completely full fuel tank and the majority of any residual fuel in the fuel tank filler pipe, lowering the fuel level below the Fuel Pump (FP) module mounting flange.

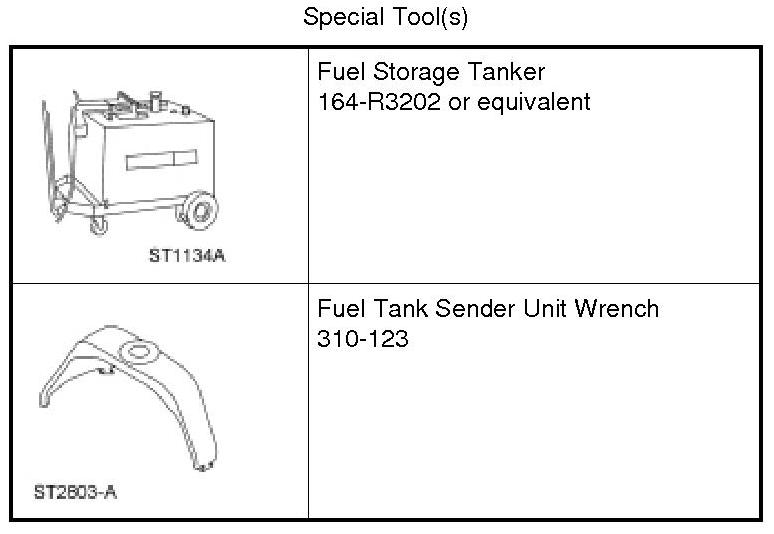

Attach the Fuel Storage Tanker to the fuel drain tube and remove one-half (approximately 8 gallons) of fuel from the tank.
3.0L vehicles with more than one-half of a tank of fuel
NOTE: The Easy Fuel(TM) (capless) fuel tank filler pipe on 3.0L vehicles have an anti-siphon grate that will not allow a fuel drain tube to penetrate the fuel tank and requires the following steps to drain the fuel.
6. With the vehicle in NEUTRAL, position it on a hoist.
7. NOTE: The supplemental refueling adapter is located in the luggage compartment.
Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel(TM) (capless) fuel tank filler pipe.
8. Attach the Fuel Storage Tanker to the fuel drain tube and remove any residual fuel in the fuel tank filler pipe.
9. NOTE: Index-mark the fuel tank filler pipe hose and the clamp prior to removal for correct installation.
Release the clamp and disconnect the hose from the fuel tank filler pipe.
- To install, tighten to 4 Nm (35 lb-in).
10. Insert a semi-rigid fuel drain tube into the fuel tank filler pipe hose until it enters the fuel tank.
11. NOTE: This step is to remove approximately one-half tank of the fuel from a completely full fuel tank, lowering the fuel level below the FP (Fuel Pump) module mounting flange.
Attach the Fuel Storage Tanker to the fuel drain tube and remove one-half (approximately 8 gallons) of fuel from the tank.
All vehicles
12. Remove the 3 screws and the FP (Fuel Pump) module access cover.
- To install, tighten to 2 Nm (18 lb-in).
13. NOTE: Clean the FP (Fuel Pump) module connections, couplings, flange surfaces and the immediate surrounding area of any dirt or foreign material.
Disconnect the FP (Fuel Pump) module electrical connector.
14. Disconnect the fuel tube-to-FP (Fuel Pump) module quick connect coupling.
15. NOTE: Place absorbent pads on the floor pan in the immediate area in case of fuel spills. Carefully remove the FP (Fuel Pump) module from the vehicle to avoid fuel spillage inside the vehicle.
NOTE: Make sure to install a new FP (Fuel Pump) module O-ring seal.
Install the Fuel Tank Sender Unit Wrench and remove the FP (Fuel Pump) module lock ring.
16. Carefully lift the FP (Fuel Pump) module out of the fuel tank enough to access and release the internal fuel tube-to-FP (Fuel Pump) module quick connect coupling.
17. NOTICE: The Fuel Pump (FP) module must be handled carefully to avoid damage to the float arm.
NOTE: The FP (Fuel Pump) module will have residual fuel remaining internally, drain into a suitable container.
Carefully remove the FP (Fuel Pump) module from the fuel tank.
18. NOTICE: Inspect the mating surfaces of the Fuel Pump (FP) module flange and the fuel tank O-ring seal contact surfaces. Do not polish or adjust the O-ring seal contact area of the fuel tank flange or the fuel tank. Install a new FP (Fuel Pump) module or fuel tank if the O-ring seal contact area is bent, scratched or corroded.

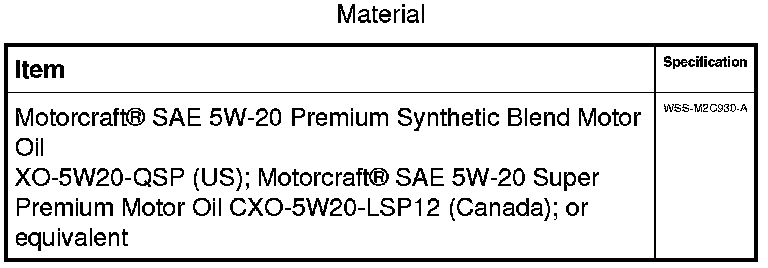

NOTE: To install, apply clean engine oil to the new O-ring seal.
Remove and discard the FP (Fuel Pump) module O-ring seal.
19. To install, reverse the removal procedure.
- Make sure the alignment tab on the FP (Fuel Pump) module and the fuel tank meet before tightening the FP (Fuel Pump) module lock ring.
