Crankshaft Position Sensor: Service and Repair

Crankshaft Position (CKP) Sensor













Removal and Installation

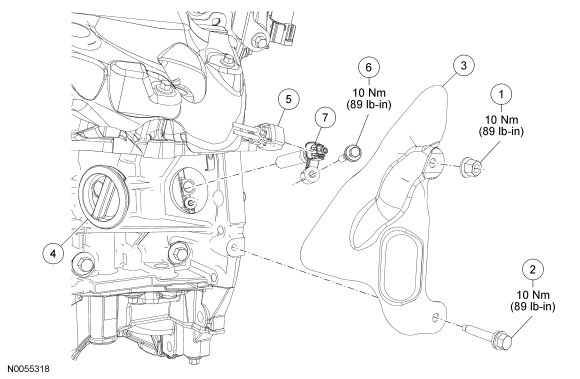

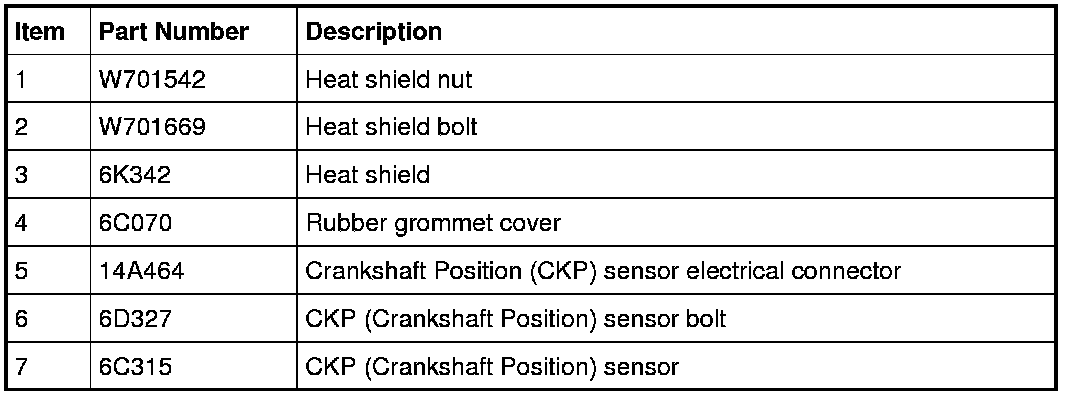

1. With the vehicle in NEUTRAL, position it on a hoist.

2. Remove the LH catalytic converter.

3. Remove the bolt, nut and the heat shield.
- To install, tighten to 10 Nm (89 lb-in).


4. Remove the rubber grommet cover.

5. Disconnect the Crankshaft Position (CKP) sensor electrical connector.

6. Remove the bolt and the CKP (Crankshaft Position) sensor.
- To install, tighten to 10 Nm (89 lb-in).


7. To install, reverse the removal procedure.

8. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure following the on-screen instructions.
