Hydraulic System

Hydraulic System

Transmission Fluid Filter

The transmission fluid in the sump area at the bottom of the transaxle case flows through a transmission fluid filter to the pump assembly. The pump is bolted to the torque converter housing and is driven by the torque converter hub.

Fluid Pump and Transmission Fluid Filter Components









Transmission Fluid Level

The transmission fluid level is checked with the transaxle at normal operating temperature between 85°C and 93°C (185°F and 200°F).

The transmission fluid level indicator is part of the transmission fluid filler tube located at the back of the torque converter housing.

The correct transmission fluid level is between the minimum and maximum marks on the transmission fluid level indicator.

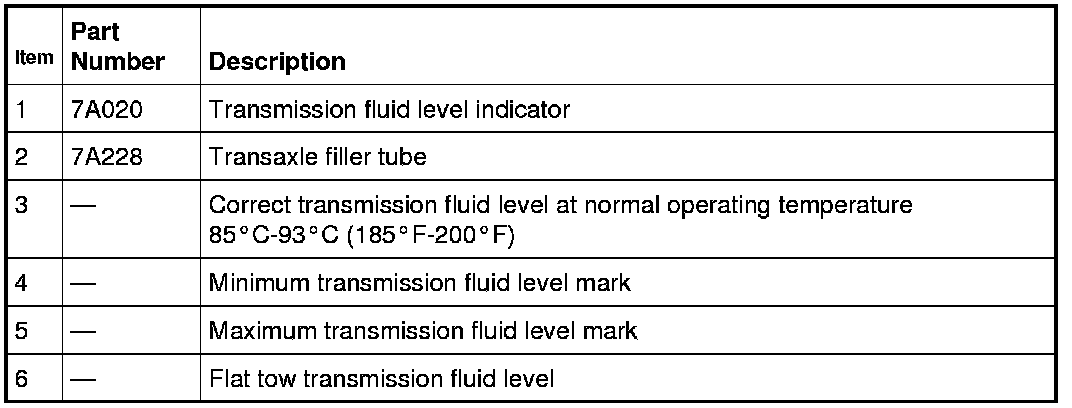

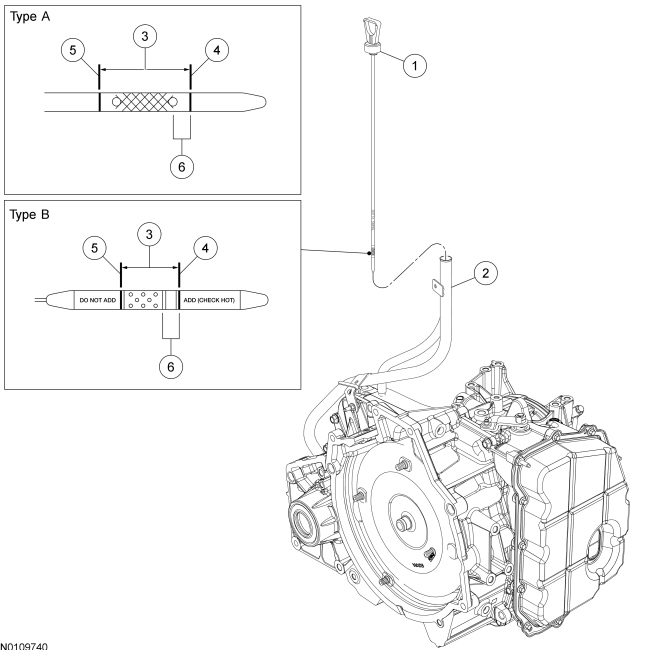

Transmission Fluid Level Indicator









Main Control

The hydraulic system has a main control assembly. The main control assembly consists of a valve body and a solenoid body. Both the valve body and the solenoid body contain hydraulic shift valves. The solenoid body contains the shift solenoids that control the hydraulic valves. The solenoid body can be serviced as an assembly with the solenoids or the solenoids can be serviced individually. The solenoid body is controlled by the PCM. The PCM has software stored in it specific to the solenoid body currently in the transaxle, called the solenoid body strategy. A new solenoid body strategy must be downloaded into the PCM anytime a new solenoid body is installed.

The pump assembly contains the main pressure regulator valve assembly and the Torque Converter Clutch (TCC) control valve assembly.

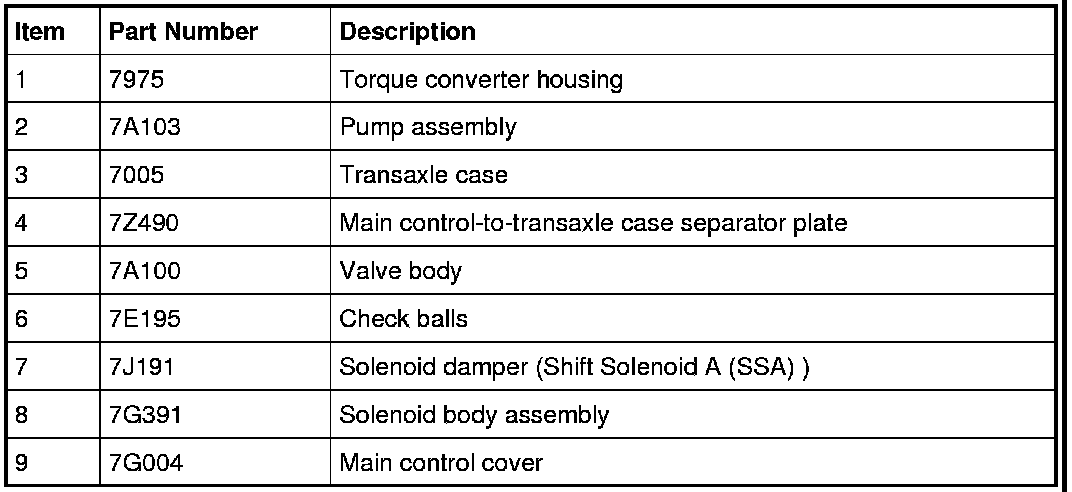

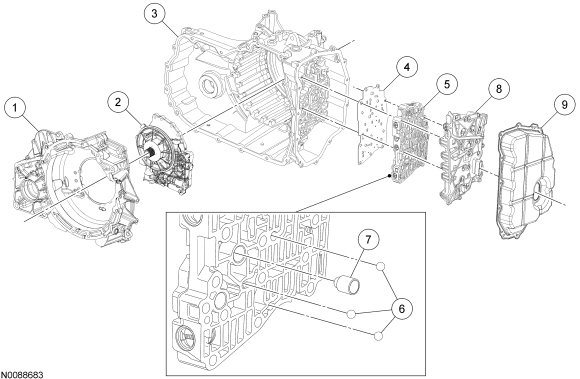

Main Control Components

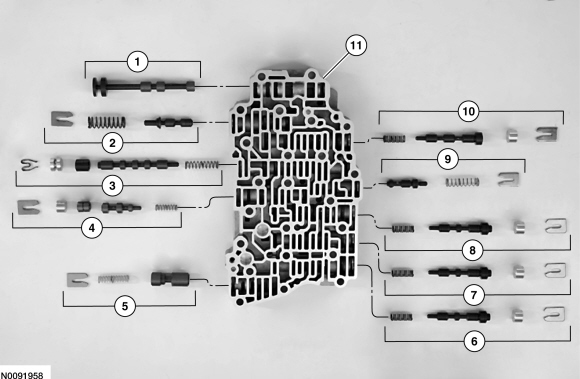

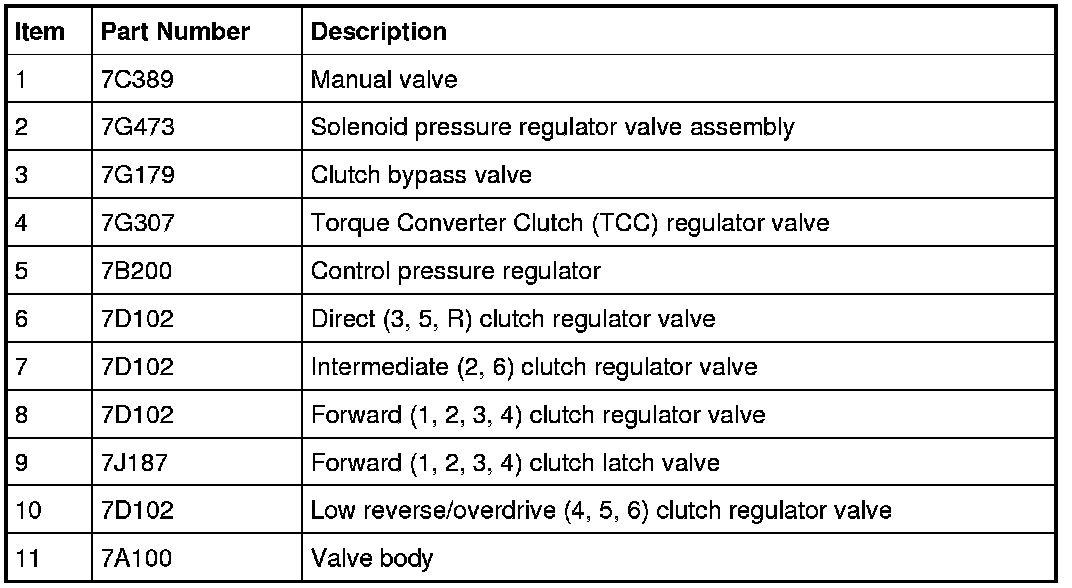

Main Control Valve Body

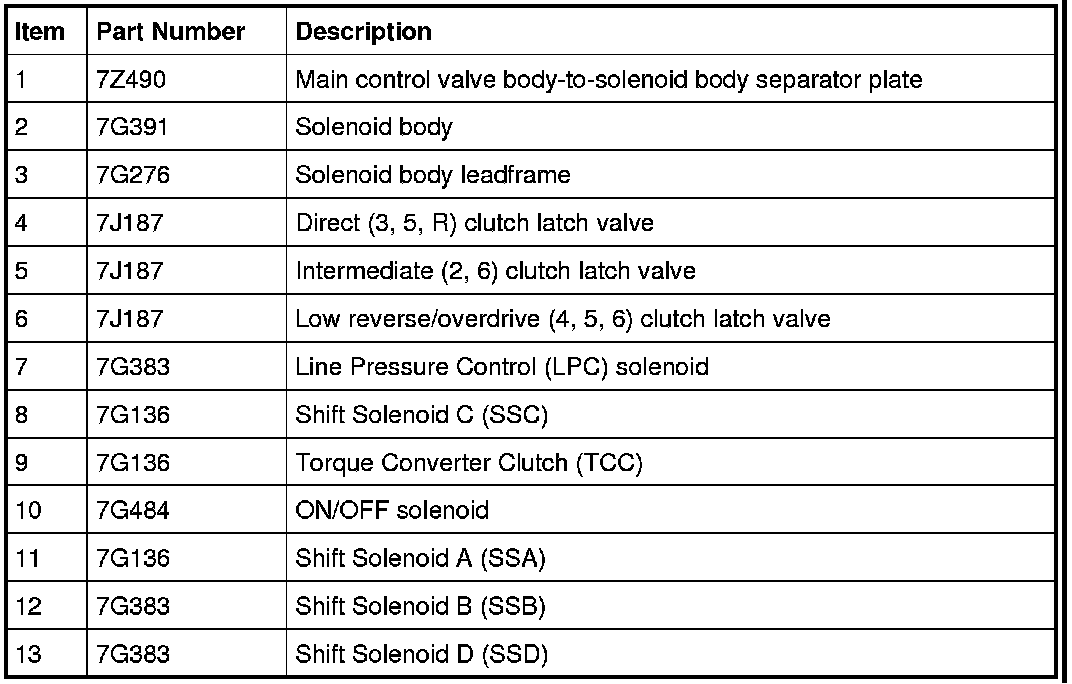

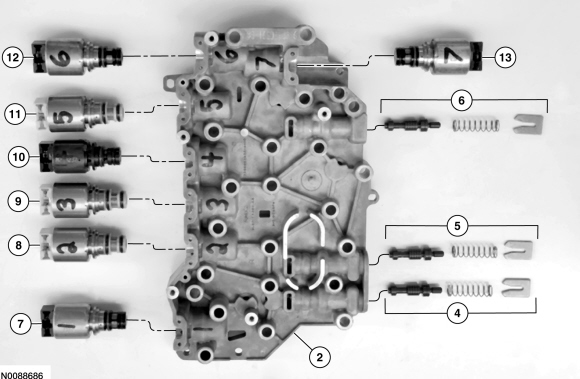

Solenoid Body

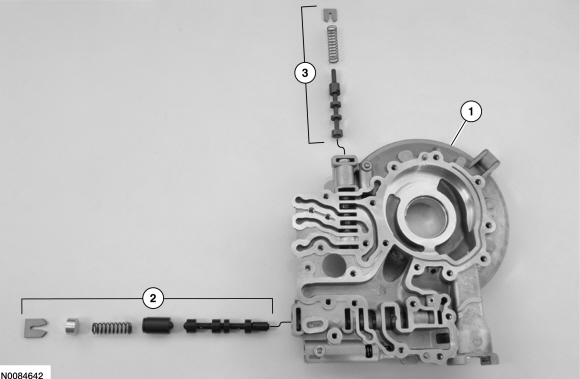

Pump Assembly
