Courtesy Lamp: Service and Repair

Puddle Lamp









Removal and Installation

1. Remove the exterior mirror glass.

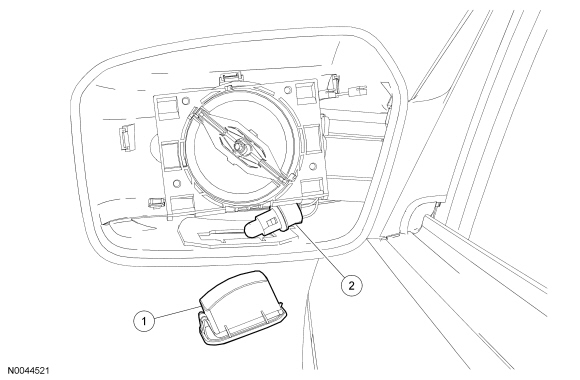

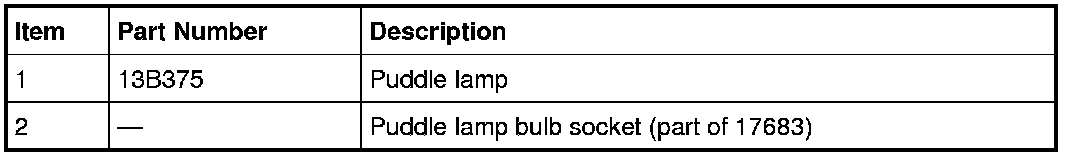

2. Release the tab to remove the puddle lamp from the mirror housing.





3. NOTE: The LH puddle lamp bulb socket is rotated clockwise to remove and the RH puddle lamp bulb socket is rotated counterclockwise to remove.
Rotate the puddle lamp bulb socket approximately one-quarter turn and remove it from the puddle lamp.


4. NOTE: When rotating the bulb socket in the puddle lamp, the socket should come to a stop indicating it is completely installed.

NOTE: An audible click can be heard when the puddle lamp is fully seated.
To install, reverse the removal procedure.
