Connector Locations

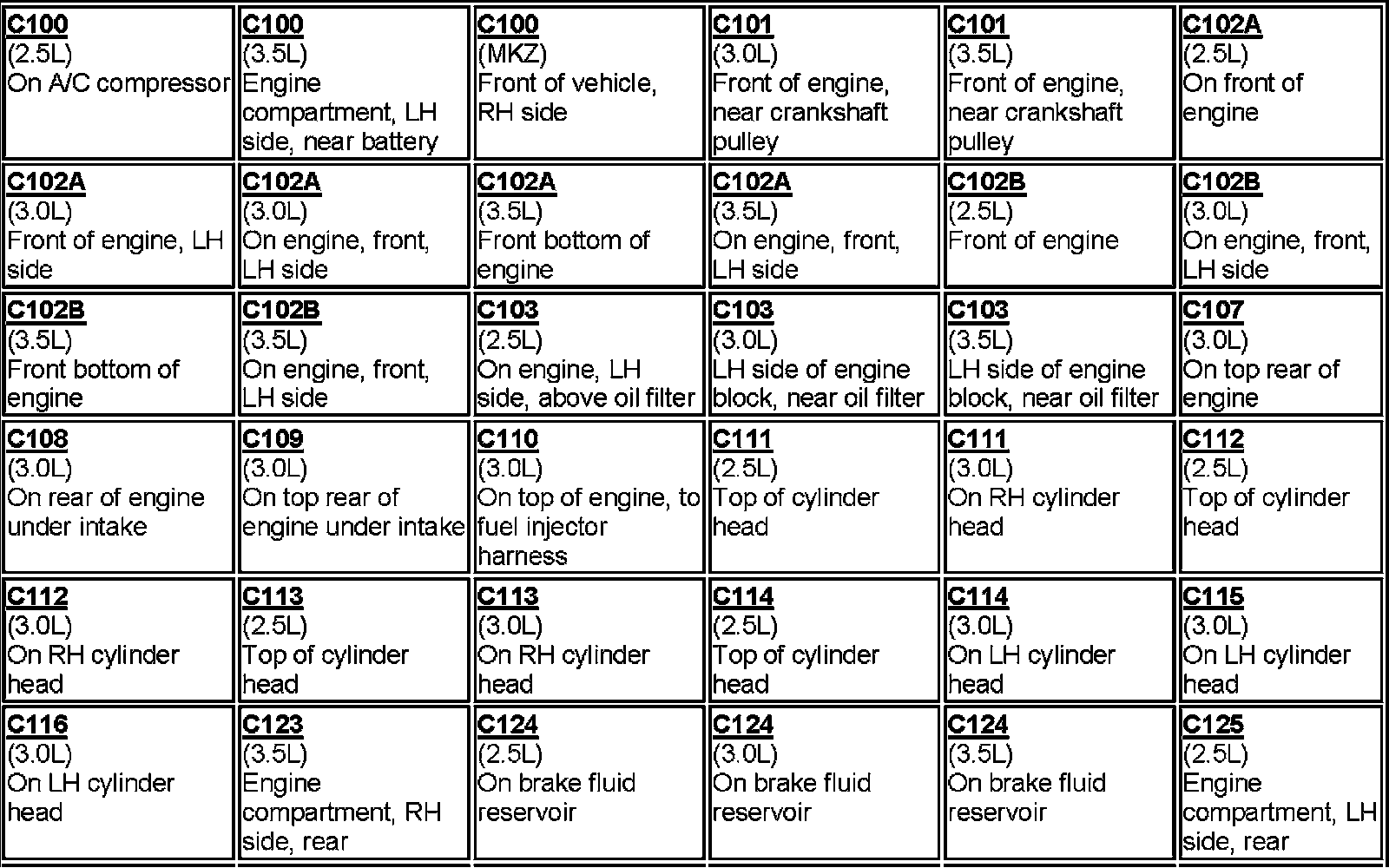

C100-C125:





C125-C150:





C150-C184:





C184-C240C:





C240D-C365:





C367-C505:





C510-C819:





C828-C1100A:





C1100A-C1452:





C1454-C1600:





C1603-C2304:





C2305-C3159:





C3187-C3651:

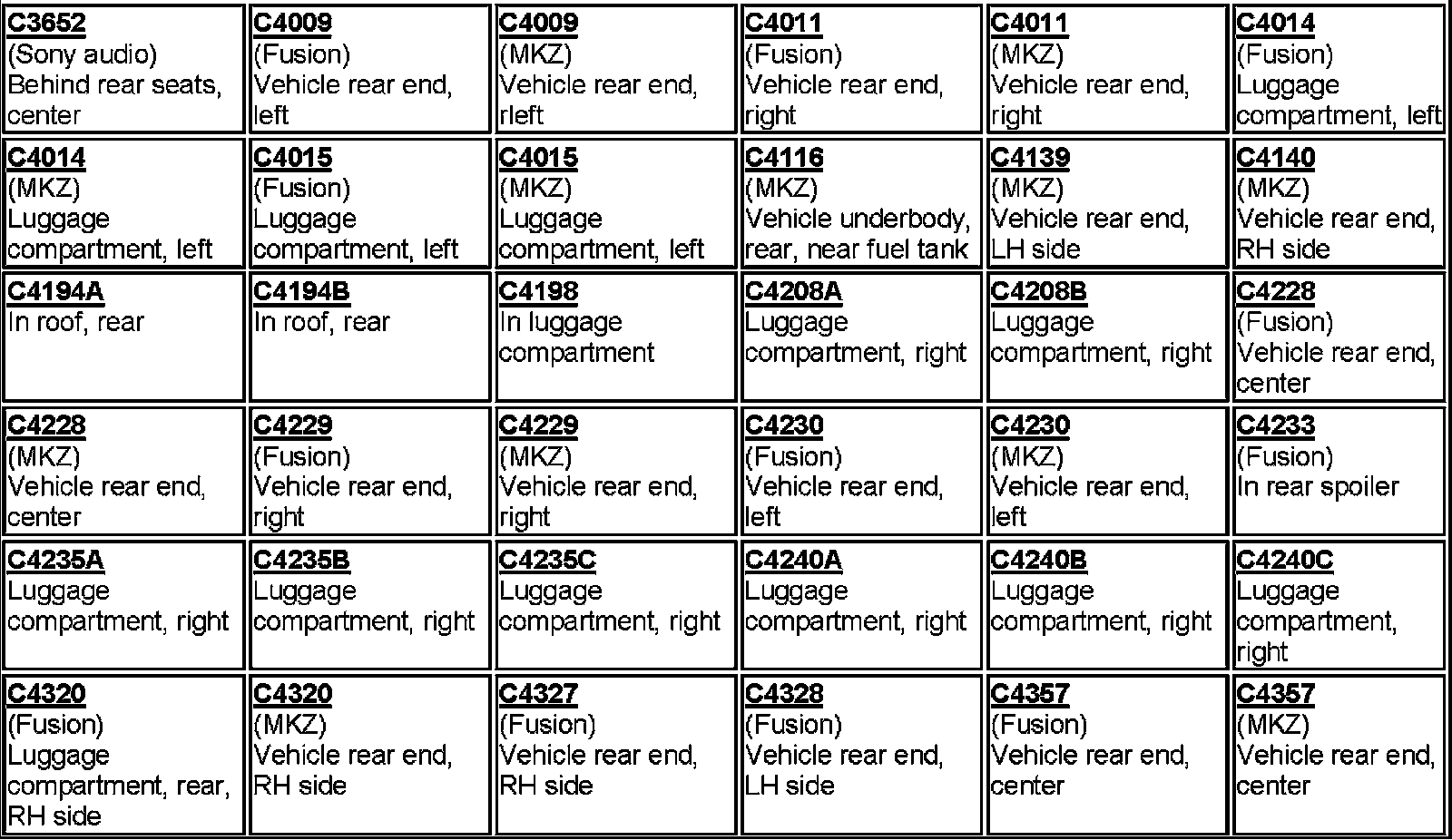

C3652-C4357:





C9021-C9045:
