Automatic Transaxle/Transmission - 6F35

Specifications

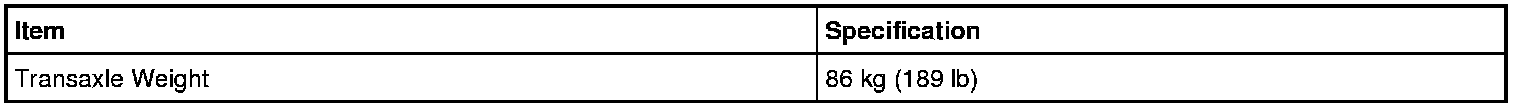

General Specifications

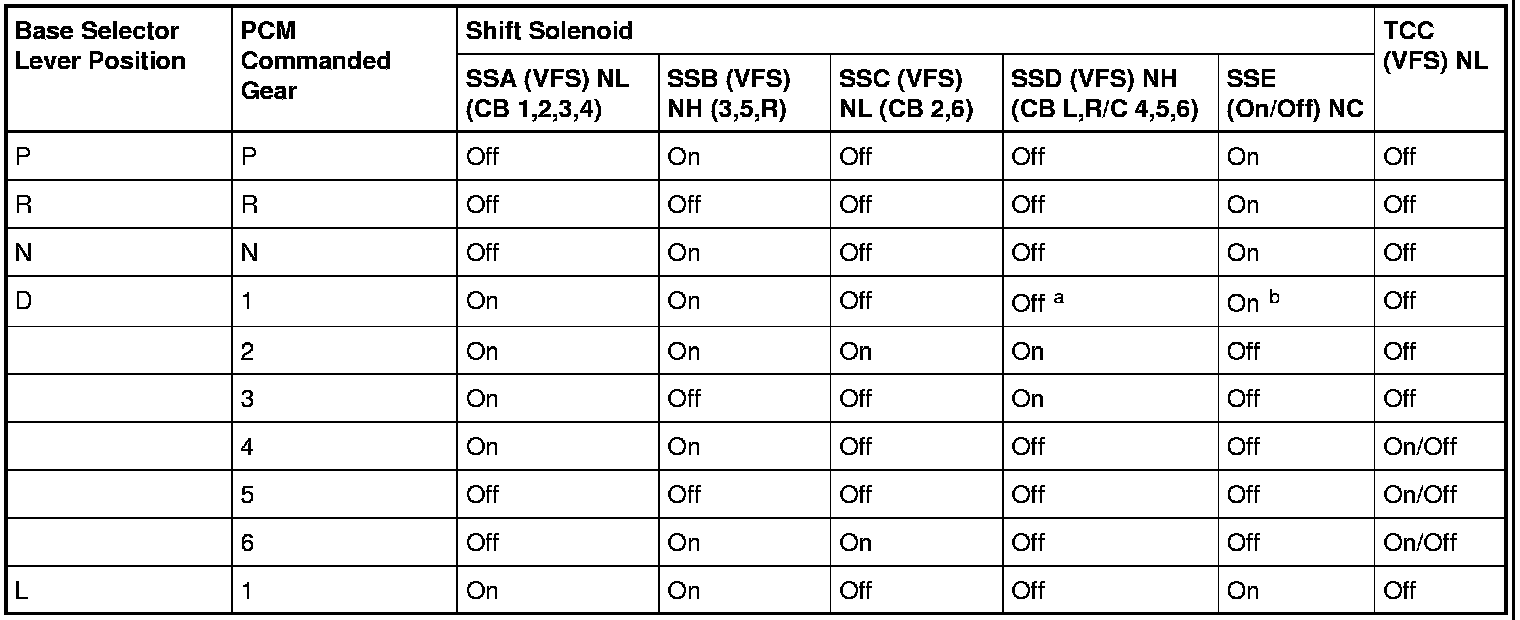

Solenoid Operation Chart





CB = Clutch brake

NC = Normally closed

NH = Normally high

NL = Normally low

a Turns on above 8 km/h (5 mph).

b Turns off above 8 km/h (5 mph).

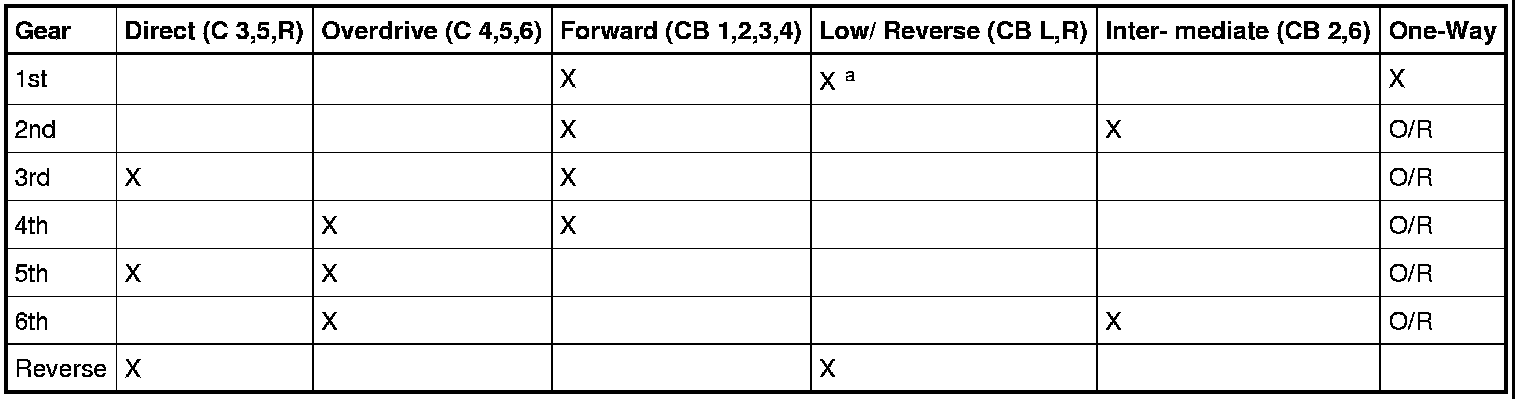

Clutch Application Chart





CB = Clutch brake

O/R = Overrunning

a Turns off above 8 km/h (5 mph).

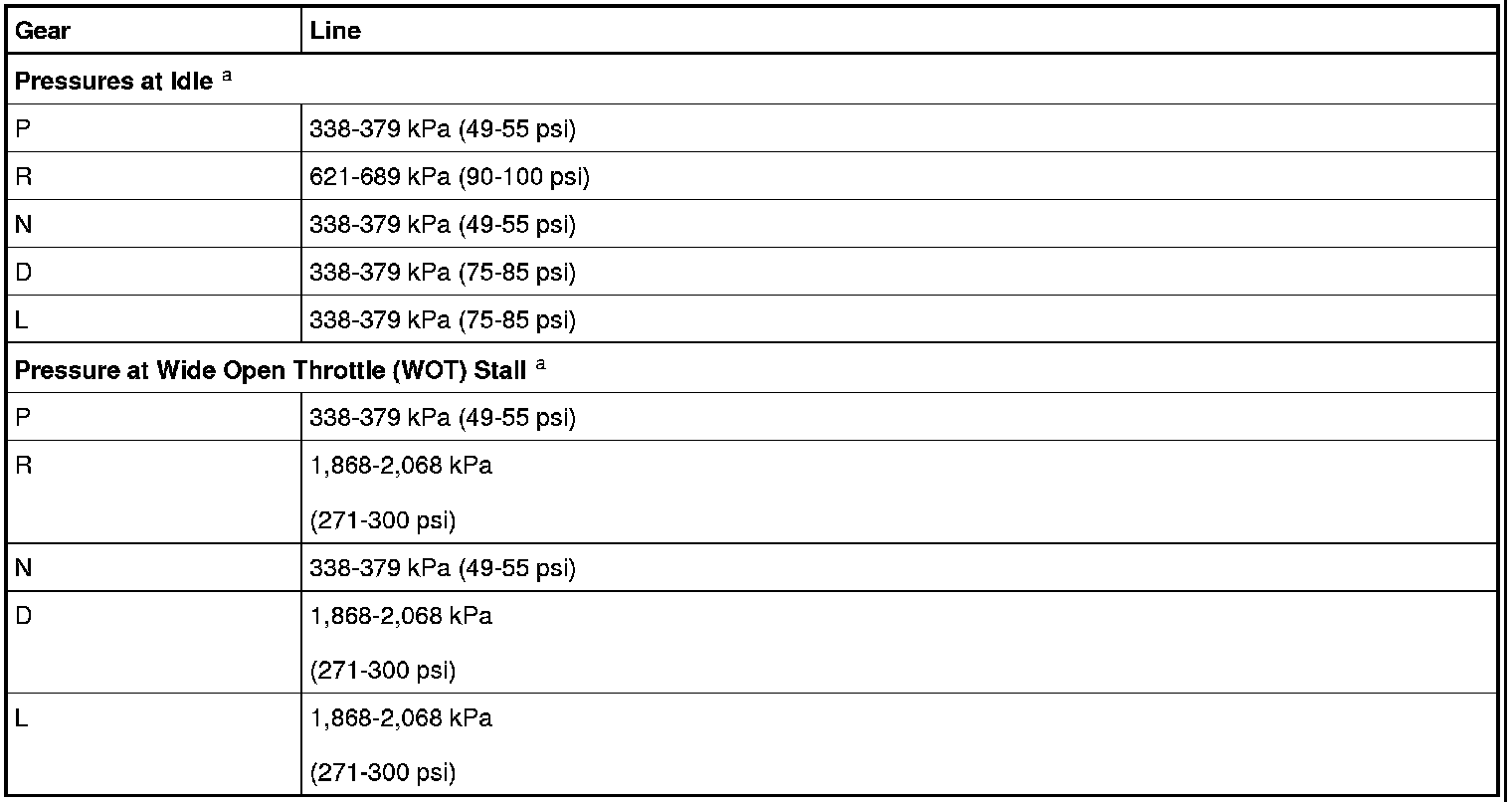

Line Pressure Chart





a All pressures are approximate.

Stall Speed Chart

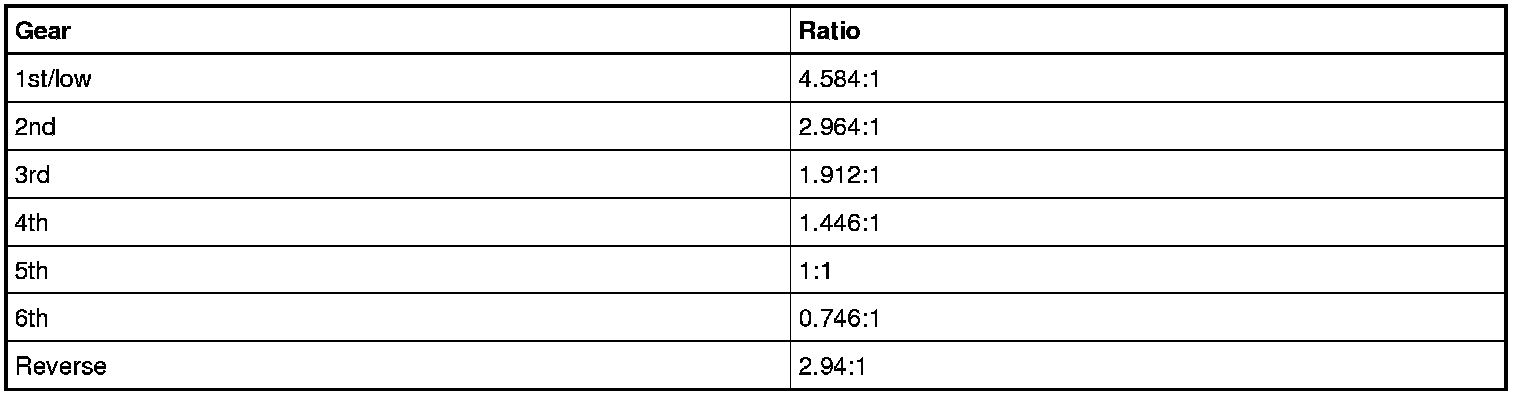

Gear Ratio Chart

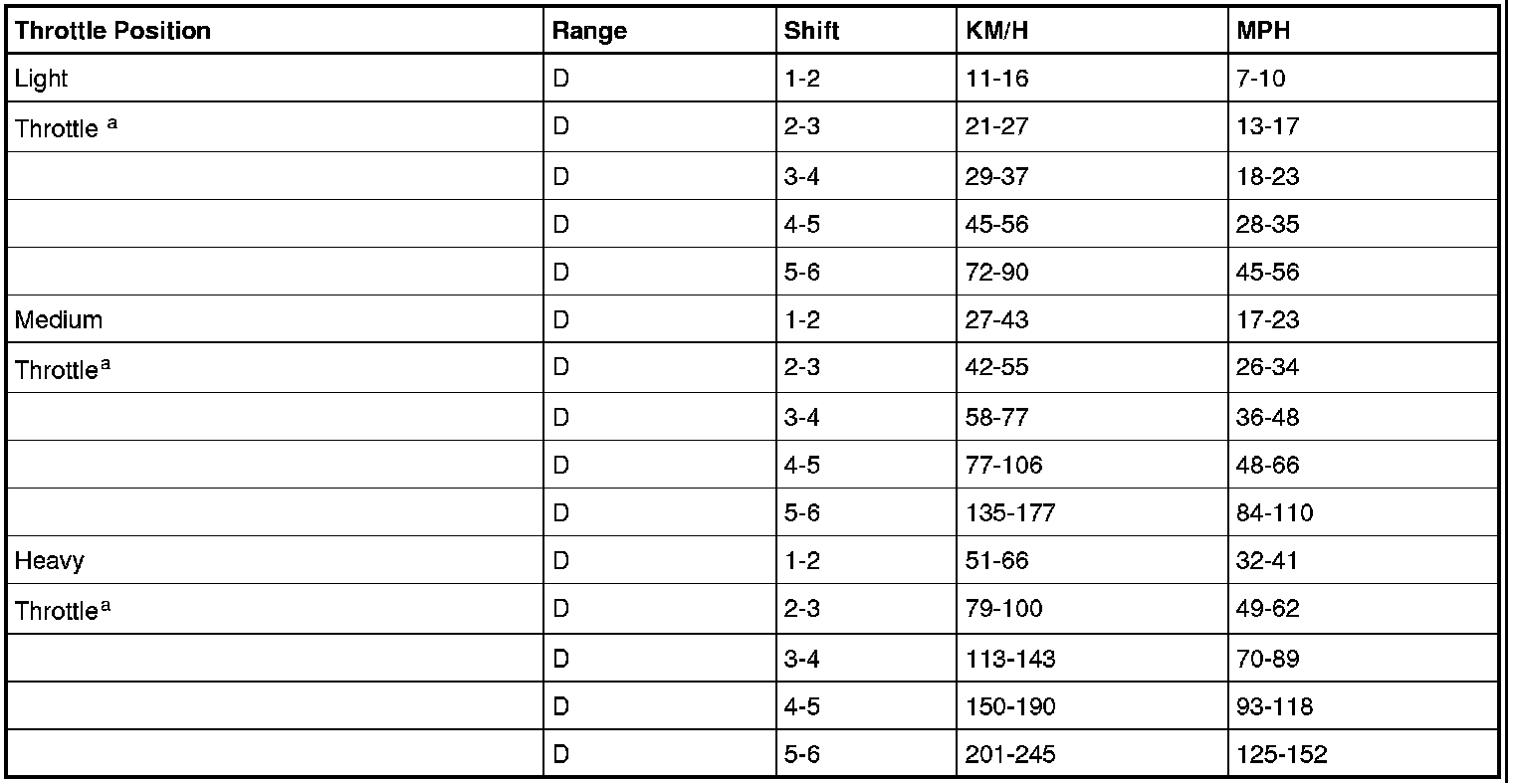

Shift Speeds 2.5L





a Do not exceed the speed limit.

Shift Speeds 3.0L





a Do not exceed the speed limit.

Torque Specifications





a Refer to the procedure for the specification.
