Transaxle Cooling - Aisin AW21

Transaxle Cooling - Aisin AW21

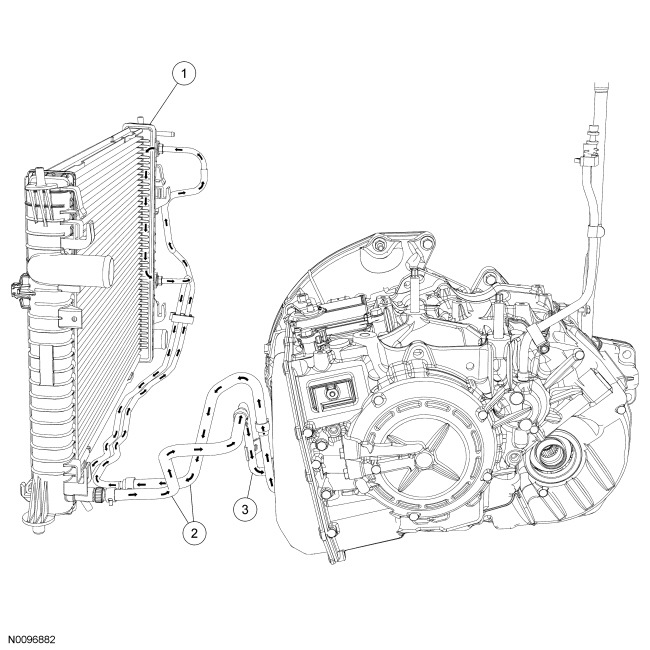

These vehicles are equipped with an internal transmission fluid cooler. The transmission fluid cooler is mounted in the engine radiator tank. During operation, transmission fluid travels from the transaxle to the transmission fluid cooler, then back to the transaxle. The transmission fluid cooler transfers heat from the transmission fluid to the engine coolant.

Transaxle Cooling - Aisin AW21
