Compressor To Condenser Discharge Line

Compressor to Condenser Discharge Line













Removal and Installation

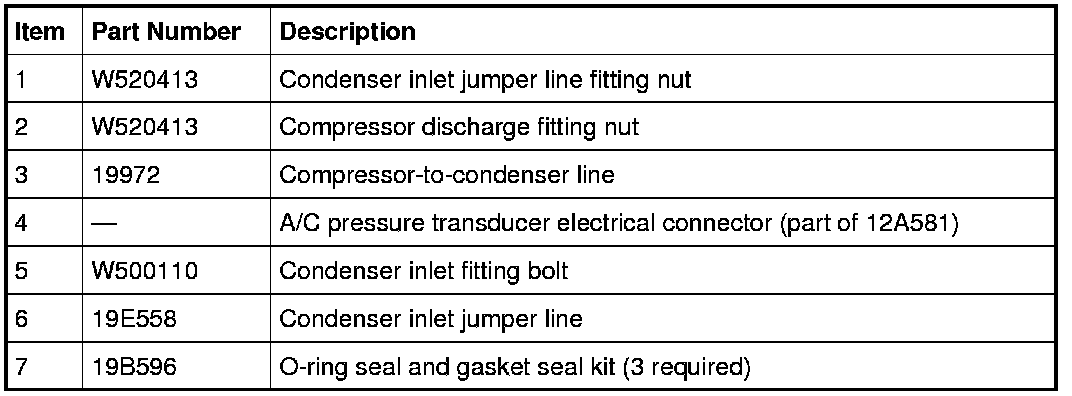

1. Recover the refrigerant.

2. Remove the compressor discharge fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.

- To install, tighten to 15 Nm (133 lb-in).


3. Remove the condenser inlet jumper line fitting nut and disconnect the fitting.
- Discard the O-ring seal and gasket seal.

- To install, tighten to 15 Nm (133 lb-in).


4. Remove the compressor-to-condenser discharge line.

5. If removing the condenser inlet jumper line, remove the RH headlamp assembly.

6. If removing the condenser inlet jumper line, disconnect the A/C pressure transducer electrical connector.

7. If removing the condenser inlet jumper line, remove the condenser inlet fitting bolt and disconnect the fitting.
- Discard the O-ring and gasket seals.

- To install, tighten to 15 Nm (133 lb-in).


8. Remove the condenser inlet jumper line.

9. To install, reverse the removal procedure.
- Install new gasket seals and O-ring seals.

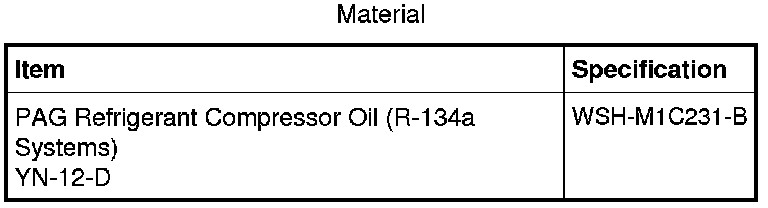

- Lubricate the refrigerant system with the correct amount of clean PAG oil.
