Backdoor Garnish - Modification

Category 14
Applicable Model/s 1984 626
Subject BACKDOOR GARNISH MODIFICATION
Bulletin No.. 002/84
Issued 2/15/84
Revised

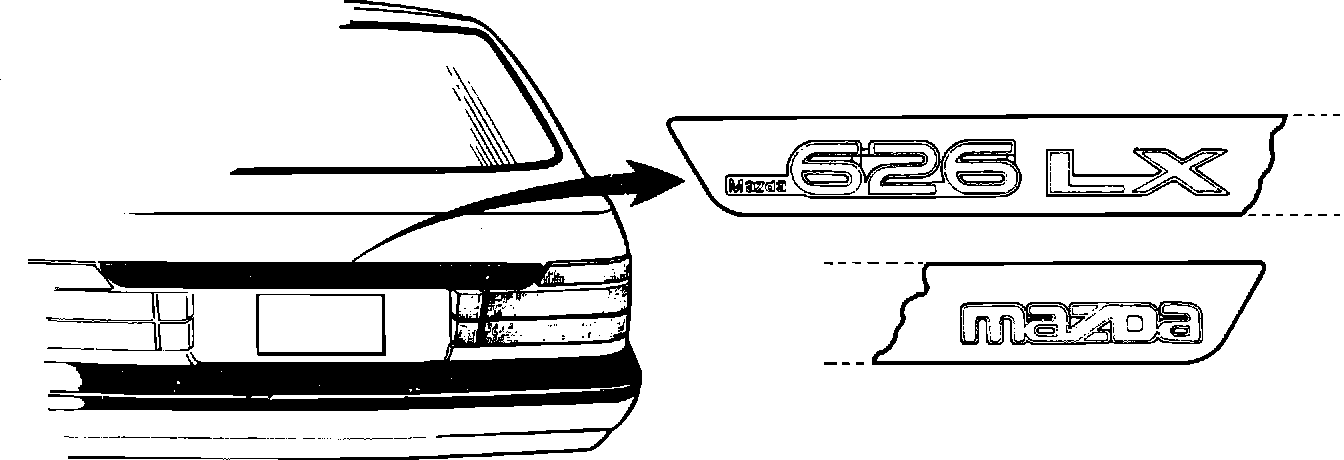

Backdoor Garnish:

DESCRIPTION

The material of the back door garnish has been changed since the production date of November, 1983. With this change, the emblems are nearly established and attached to the garnish rather than molded onto the garnish. These new emblems can be replaced separately.

VIN OF PRODUCTION CHANGE

Hatchback: JM1GC241 E1604863 November, 1983


PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABLILTY

GB14 50 970 GB06 50 970 Back Door Garnish w/o LX Emblem NEW + P to OLD

GB15 50 970 GD27 50 970 Back Door Garnish w/LX Emblem NEW + P to OLD

GD27 51 761 - Emblem LX for Hatchback Only -

GD27 51 721 - Emblem Mazda 626 -

GD27 51 781 - Emblem Mazda -
