Interior Lighting Module

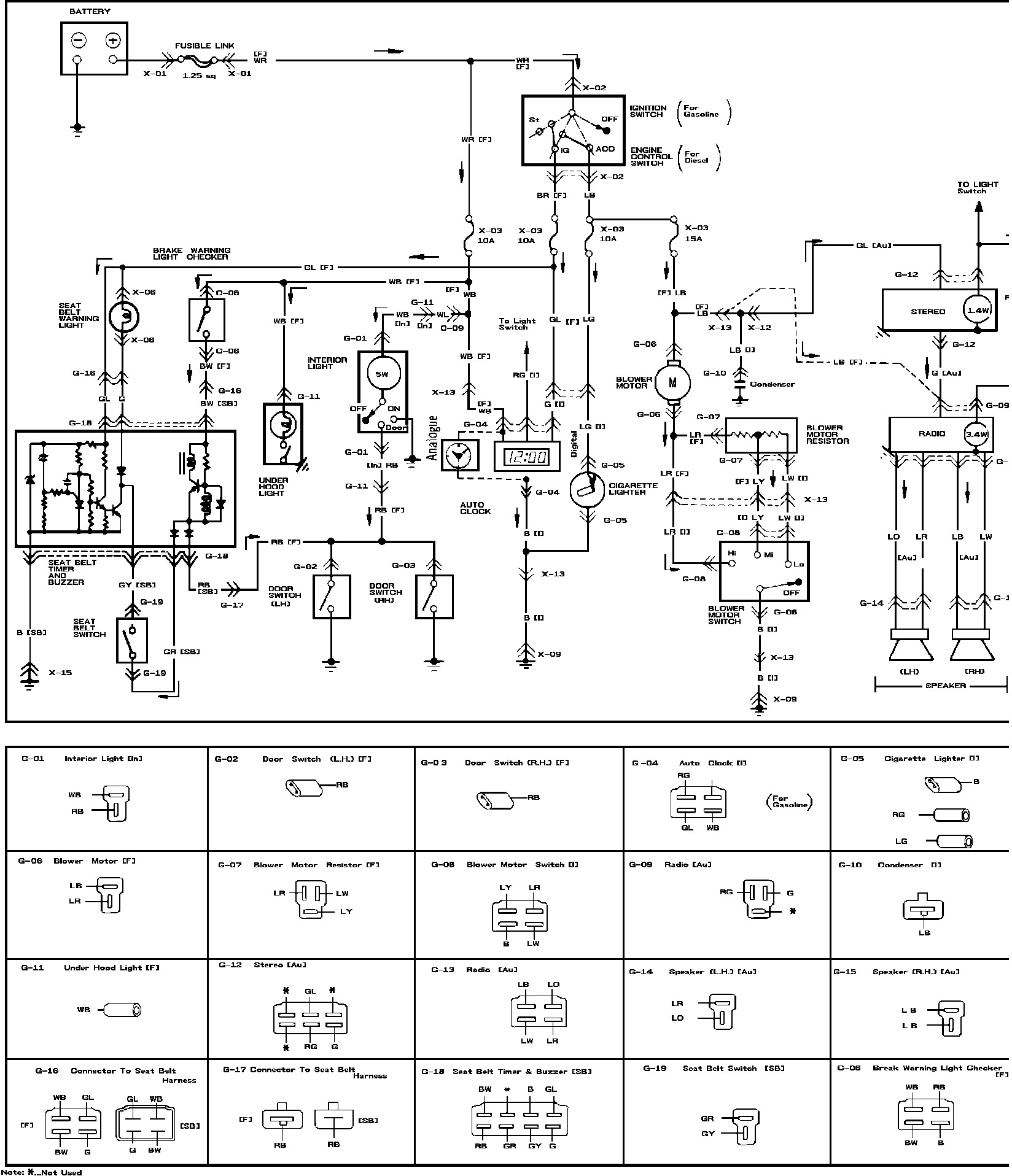

<��Fig. 85b Cigarette Lighter, Clock, Heater, Interior Light, Radio, Seat Belt Warning System & Stereo:
