Exhaust Gas Recirculation: Diagrams

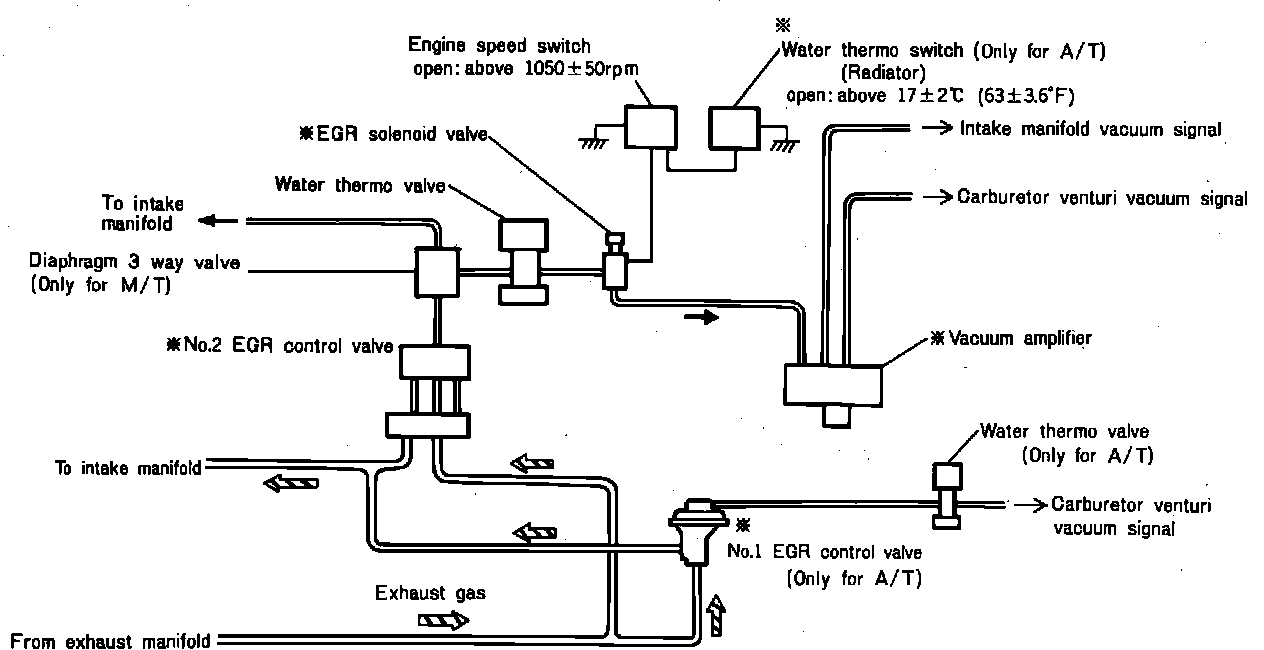

Fig. 45 EGR control system:

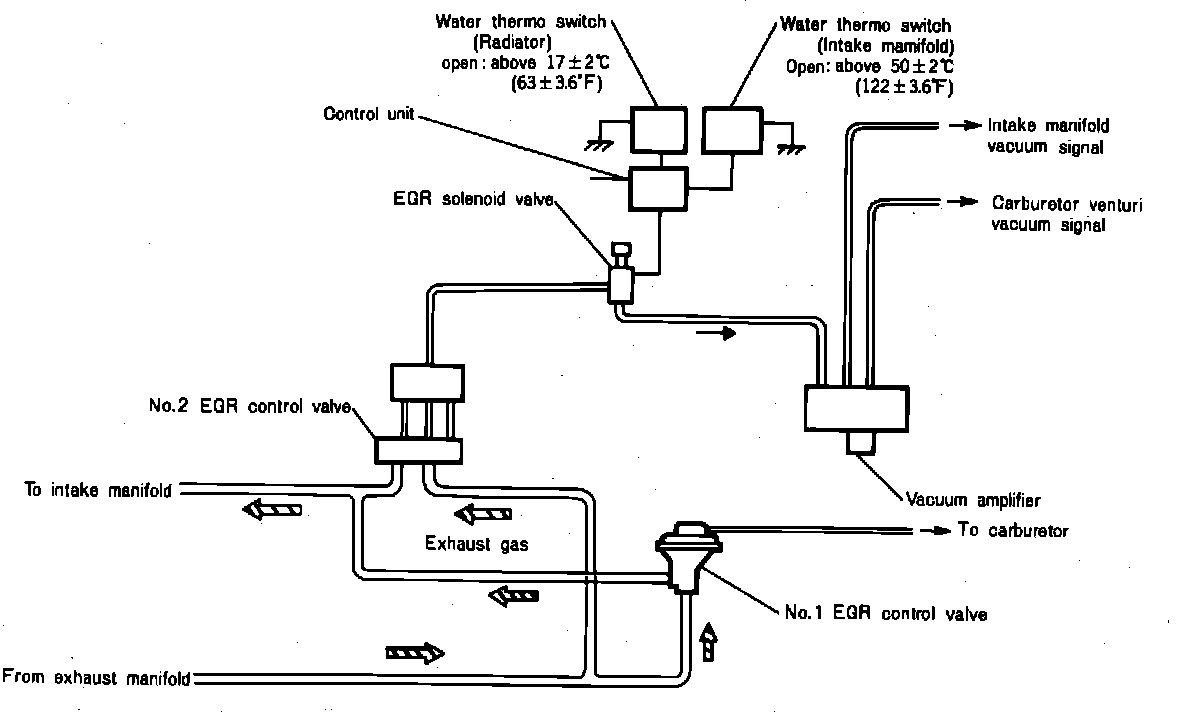

Fig. 51 EGR control system. Exc. California:
