Home >> Mazda >> 1986 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> A/C Logic Control System

A/C Logic Control System

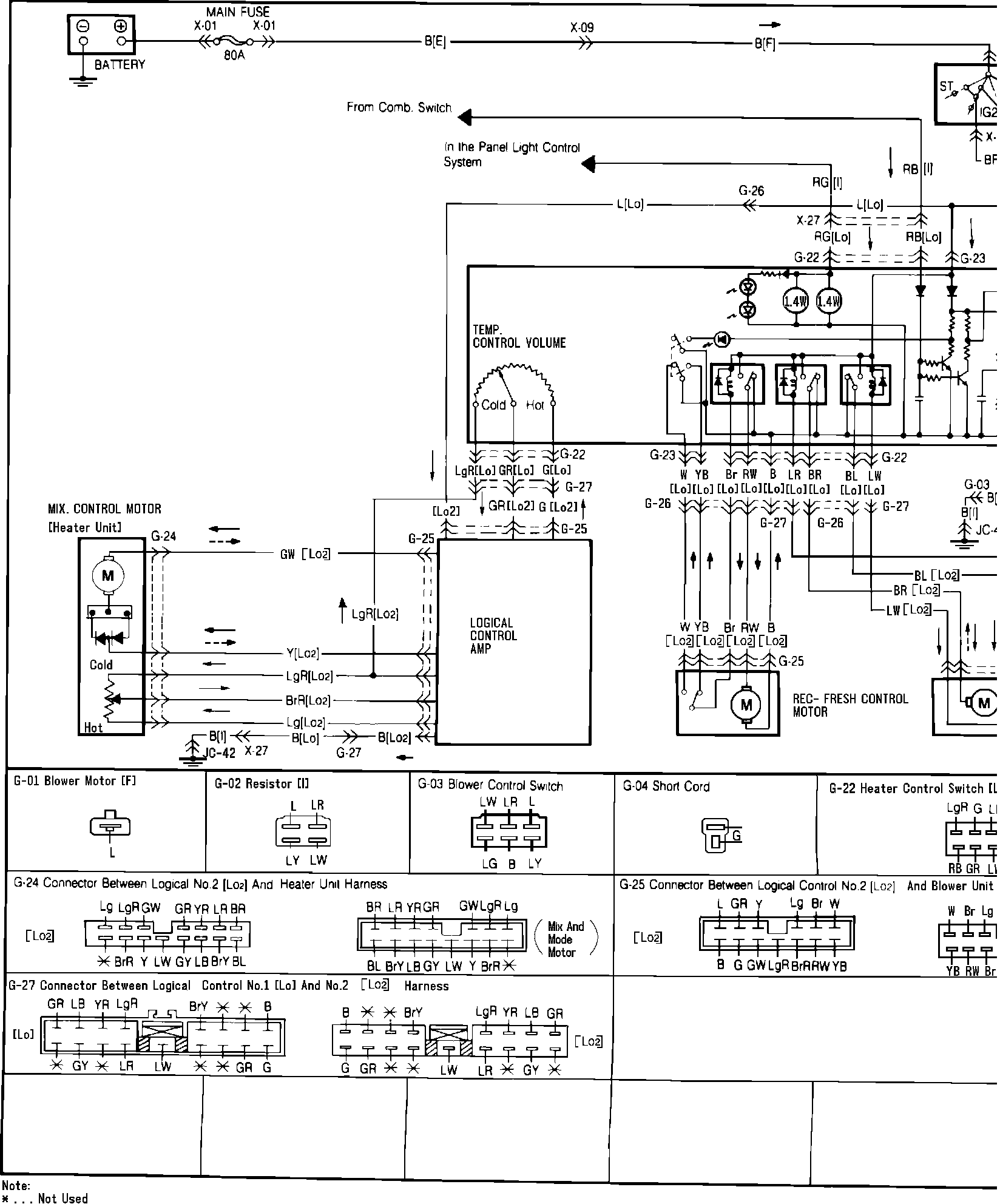

'��eFig. 100b Logical Mode Control System Wiring Circuit:
