Home >> Mazda >> 1986 >> 323 L4-1600 1597cc >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Engine - Coolant Temperature Sensor/Switch

Engine - Coolant Temperature Sensor/Switch

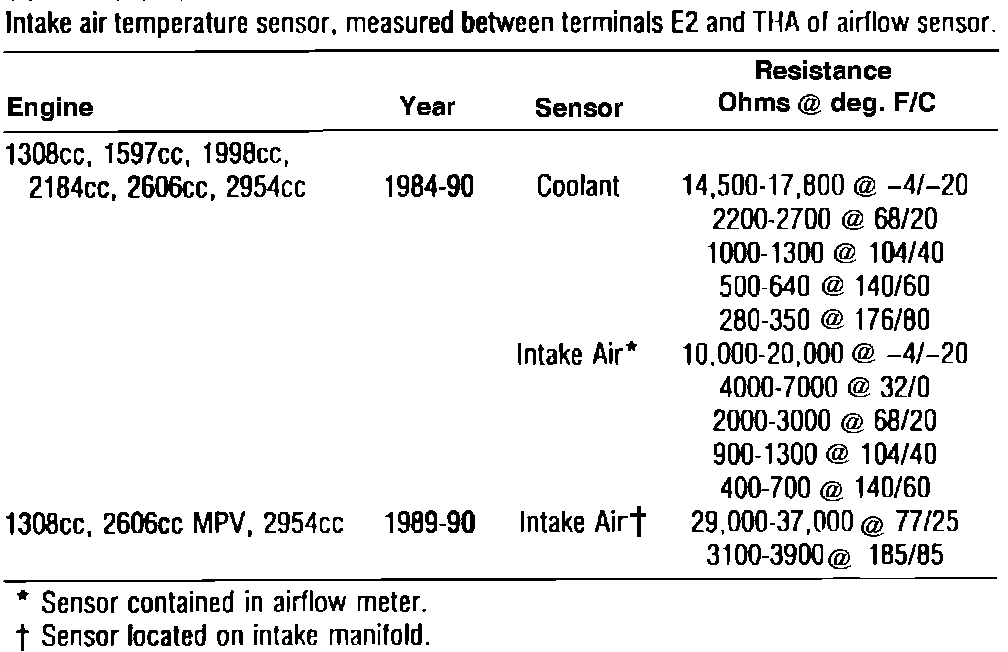

Fig. 1 Temperature Sensors:
