Interior Lighting Module

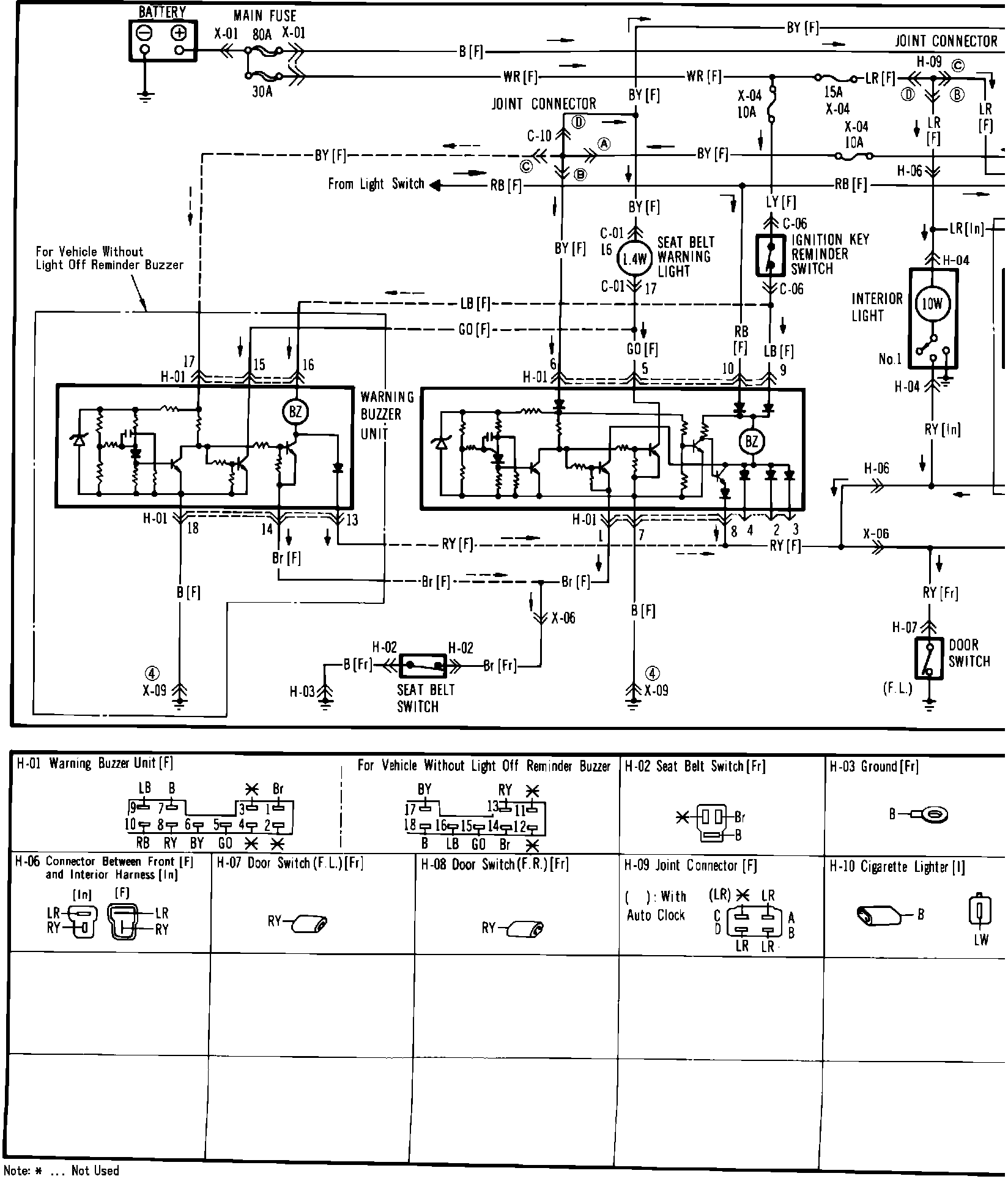

4��Fig. 86 Clock, Cigarette Lighter, Ignition Key Reminder Buzzer, Interior Lights & Lights Off Reminder & Seat Belt Warning Buzzers Wiring Circuit:
