Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1986
>>
B Series Truck L4-2000 1998cc
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations

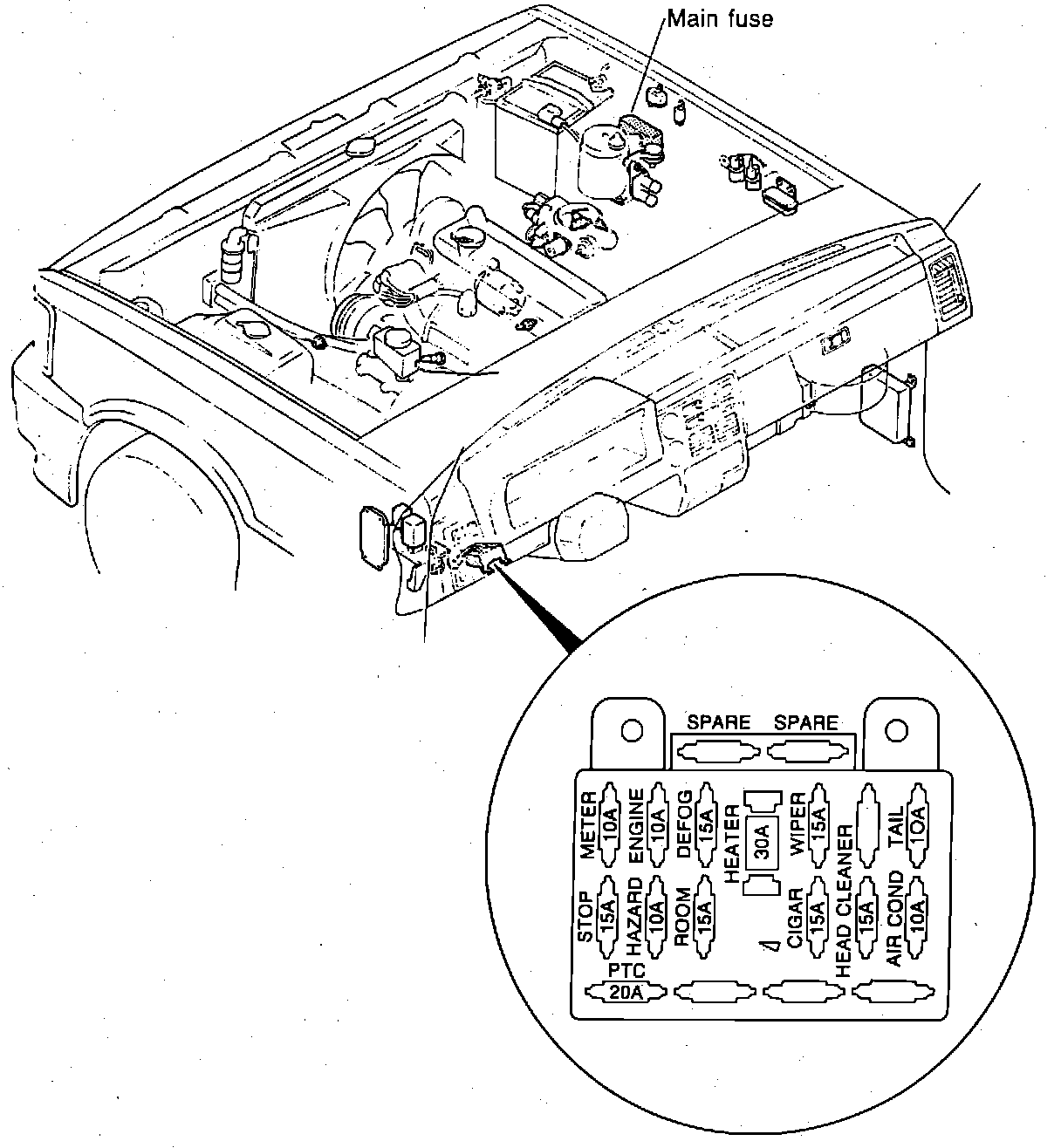

Fuse: Locations
Main Fuse & Fuse Panel.:
RH Front Of Engine Compartment
Applicable to: 1986 Models
