Mazda
>>
1986
>>
B Series Truck L4-2000 1998cc
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Mixture Control Solenoid
>>
Locations
Mixture Control Solenoid: Locations

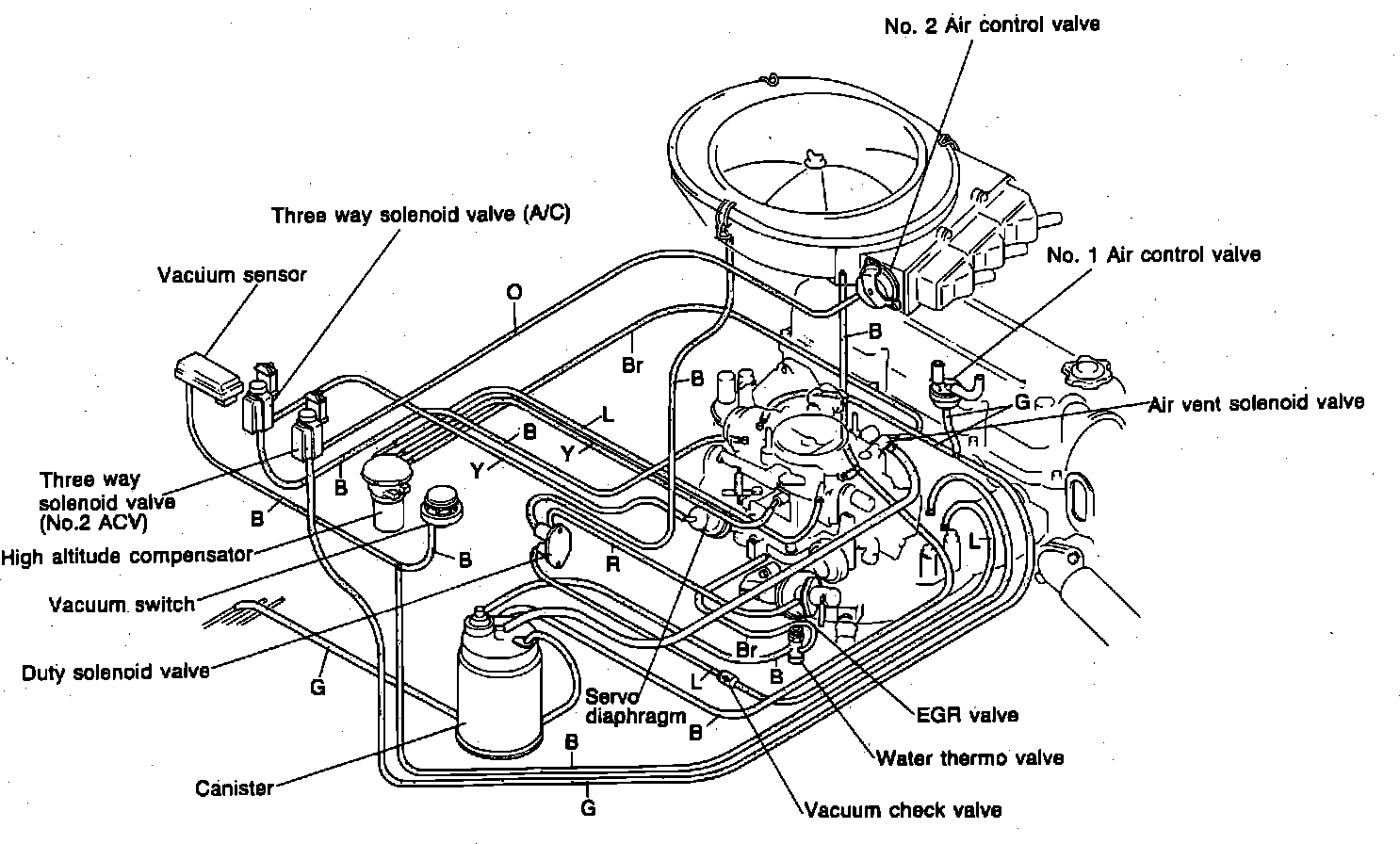

Vacuum Hose Routing.:
RH Side Of Engine
Applicable to: 1986 Models
