Testing W/Voltmeter

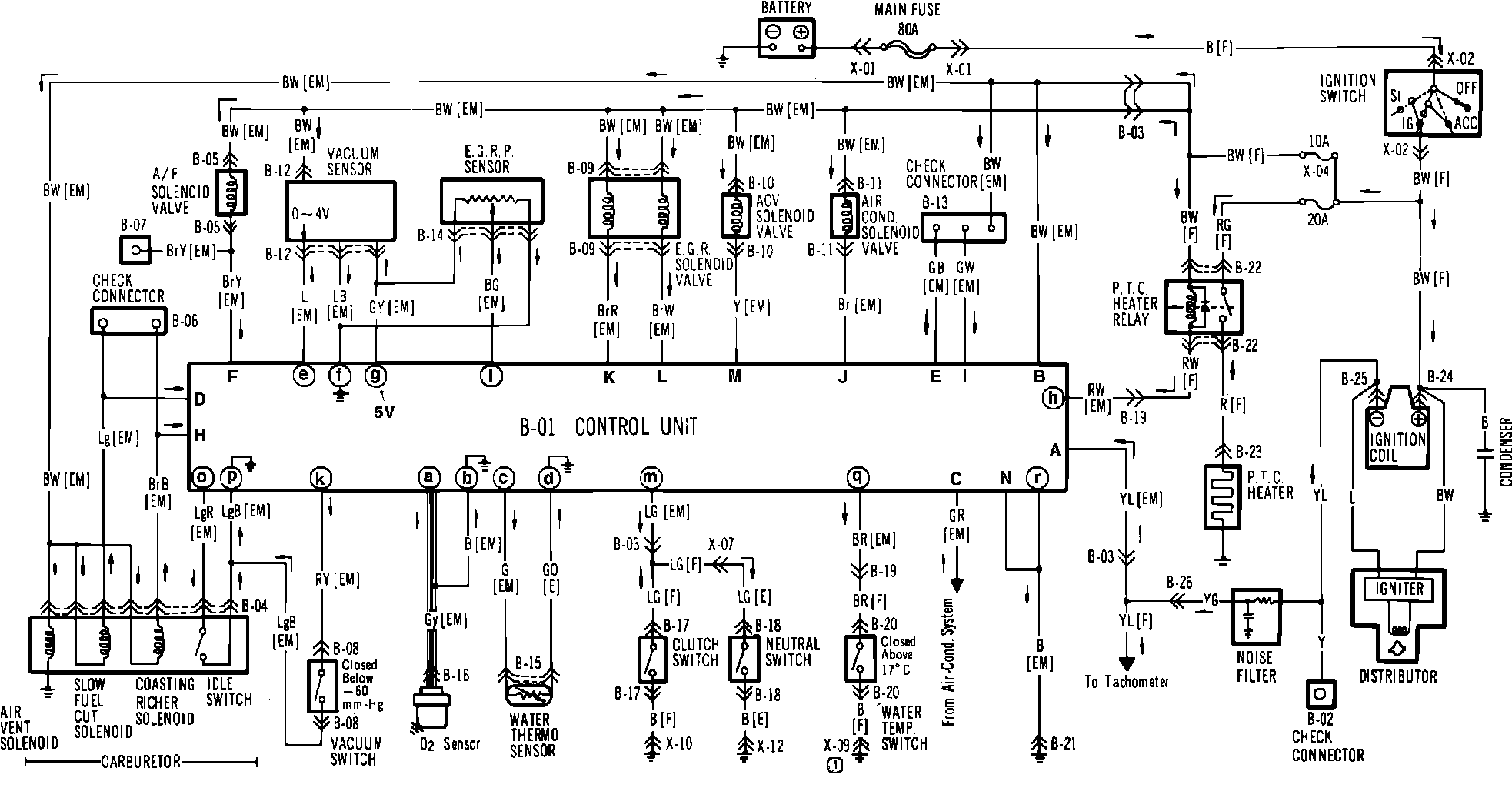

Fig. 1 Closed Loop System electrical schematic.:

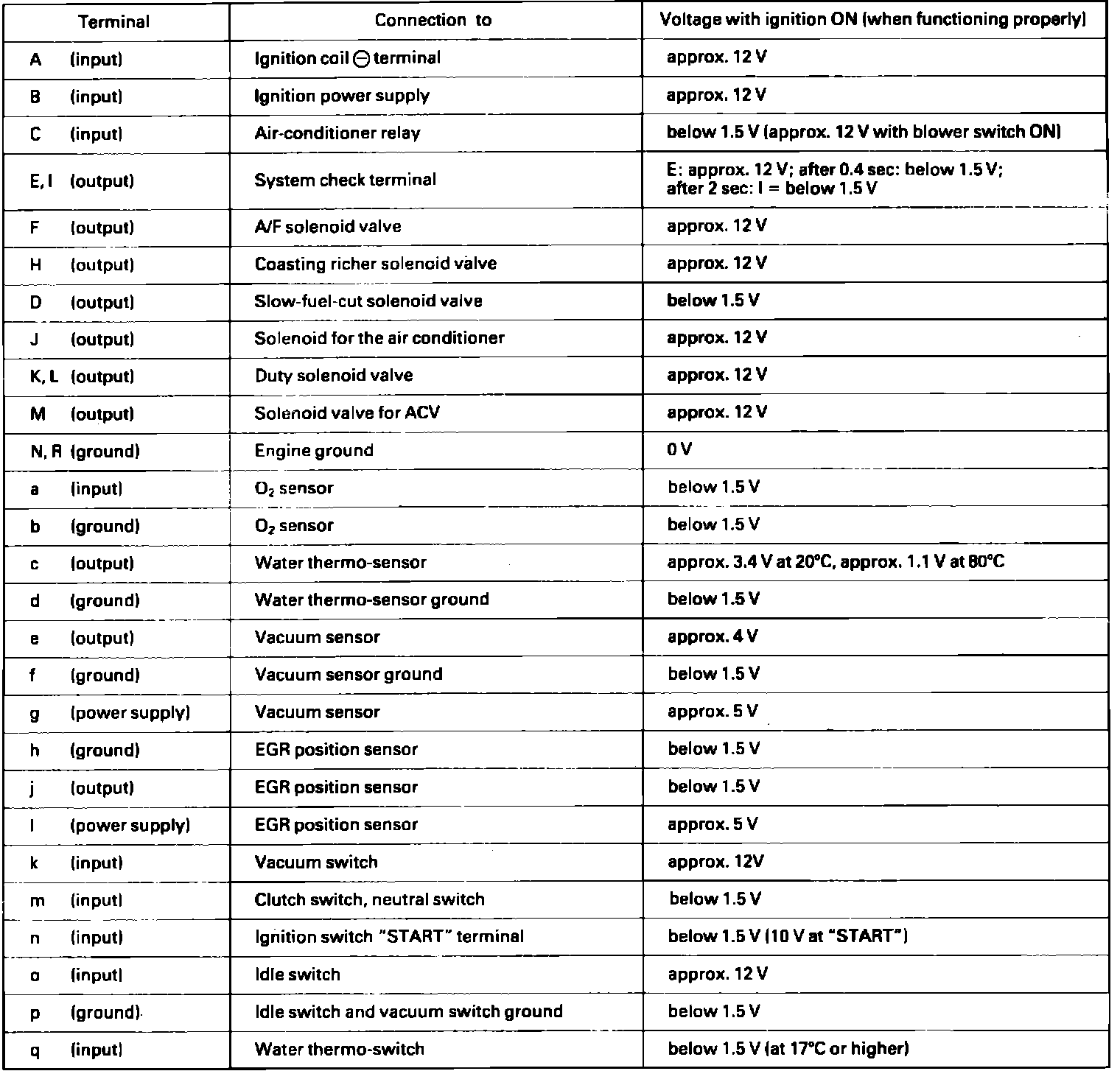

Fig. 2 Engine control unit testing procedure chart.:

DO NOT START ENGINE
1. Connect voltmeter to control unit.
2. With ignition switch ON and engine OFF, measure voltage at each terminal and compare values listed in Fig. 2. Refer to Fig. 1, for terminal locations.
