System Diagram
System Diagram

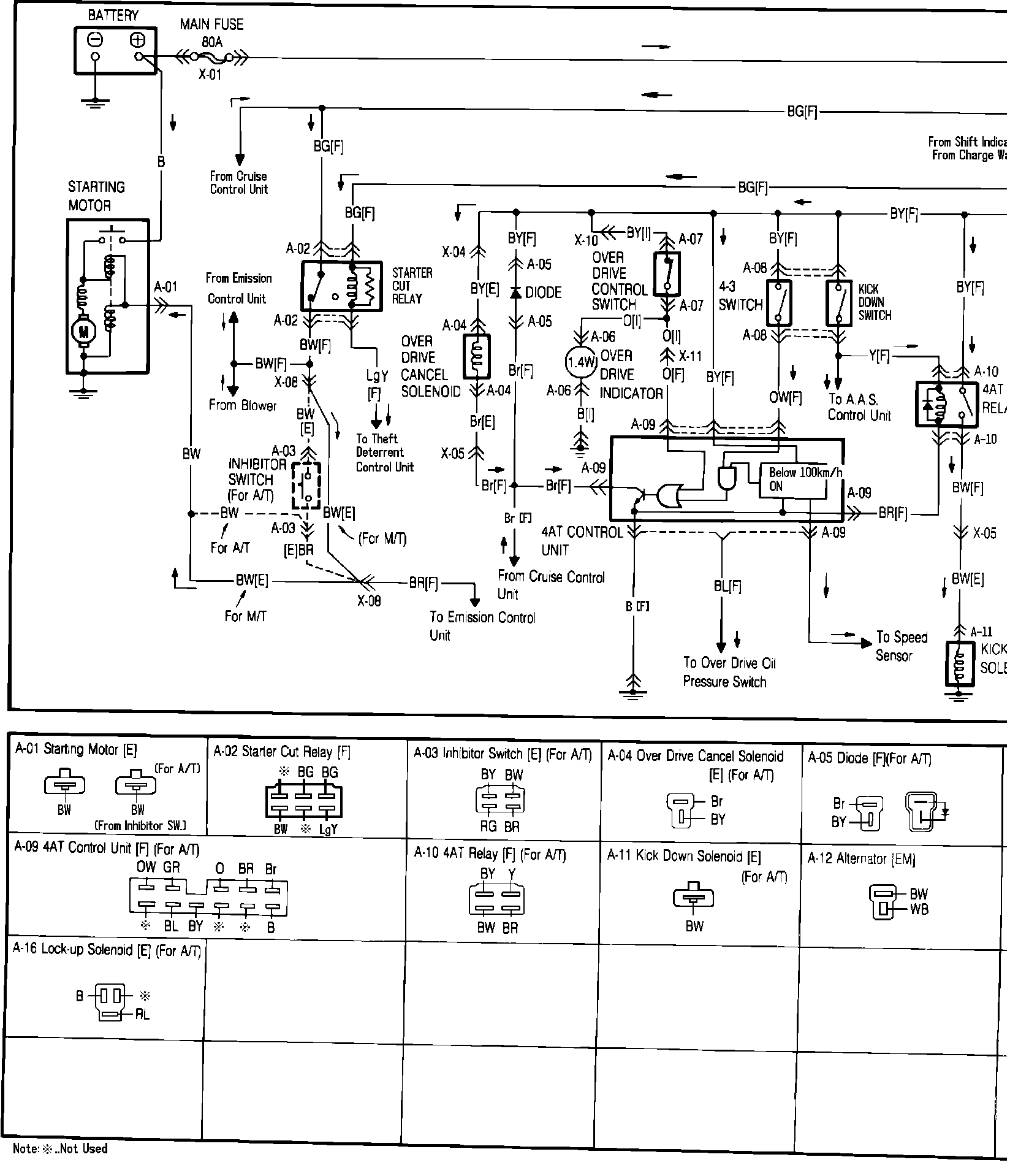

�^QFig. 29b Automatic Transmission Lock-up & Charging, Over Drive & Starting Systems Wiring Circuit.:
