Instrument Cluster / Carrier
Instrument Cluster / Carrier

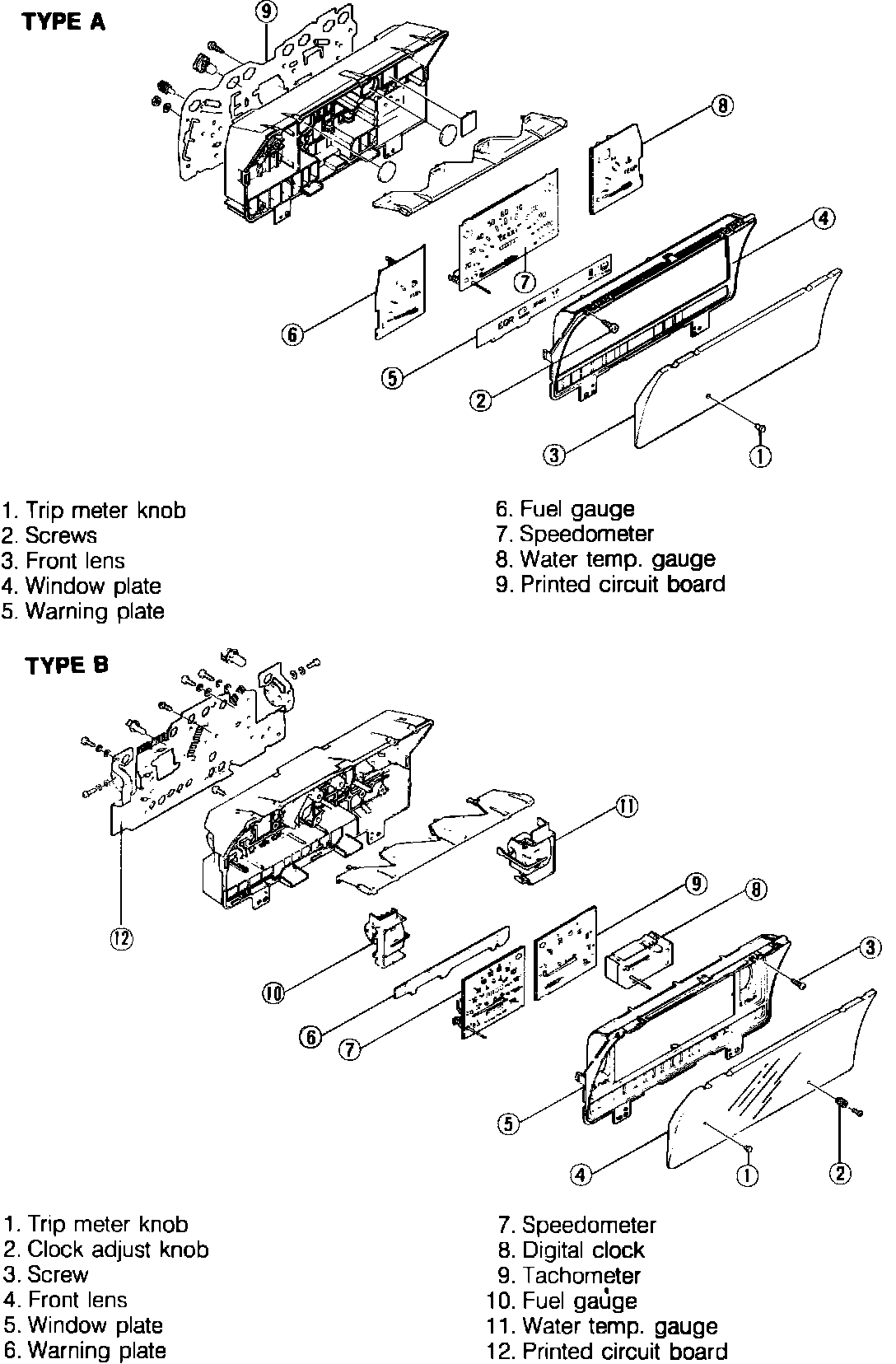

Fig. 12 Instrument cluster, replace. 1986 B2000 & 1987-88 B2200 & B2600:
