B Series Truck L4-2000 1998cc
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Carburetor
Carburetor

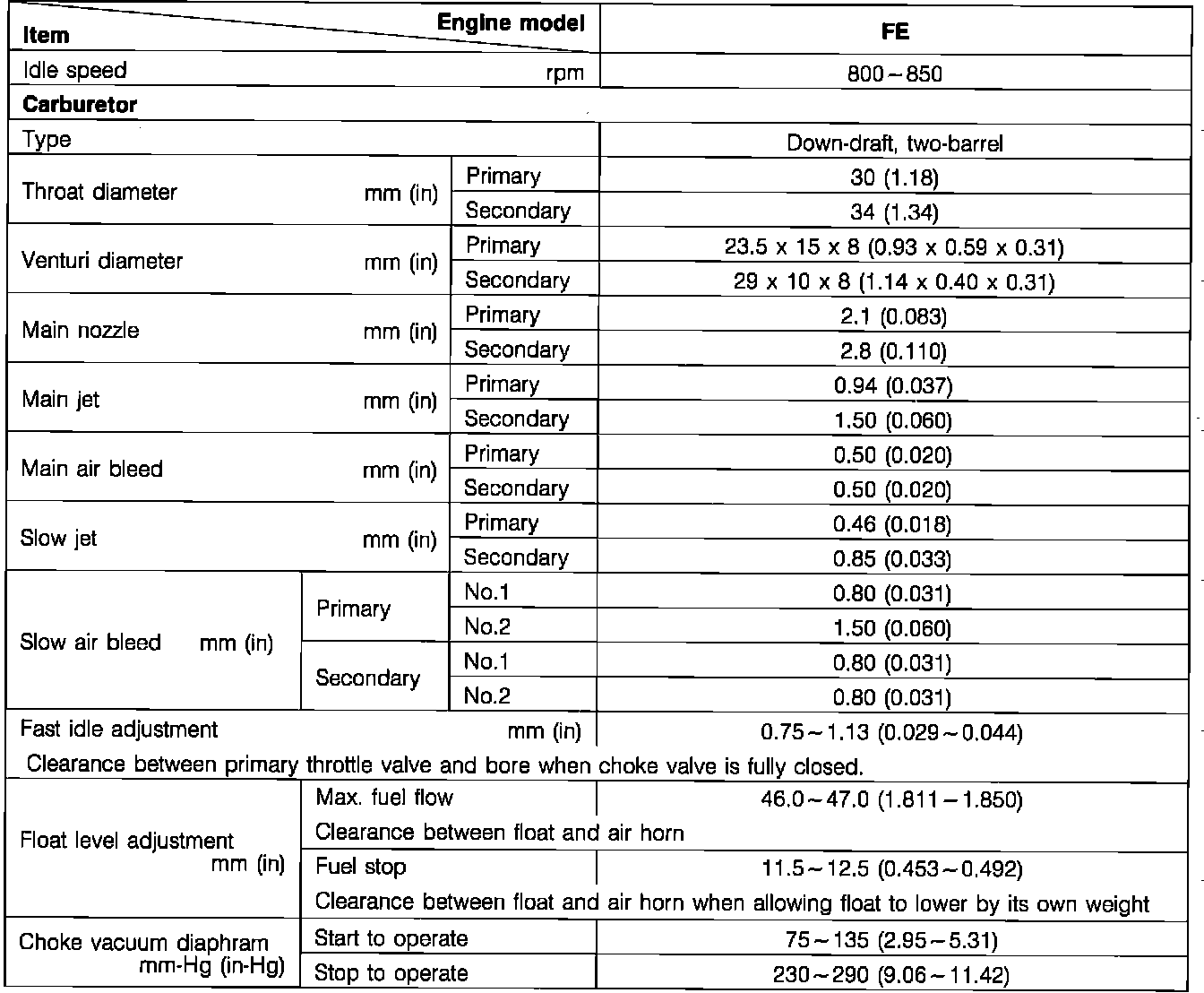

Fig. 12 Carburetor Specifications:
