Torque Specifications

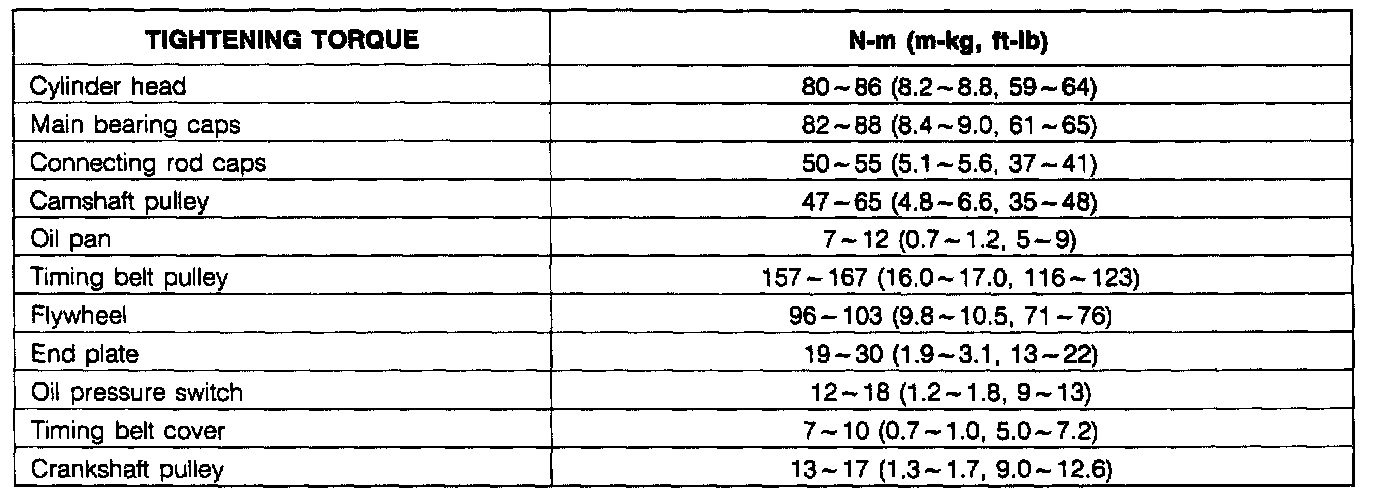

Torque Chart:

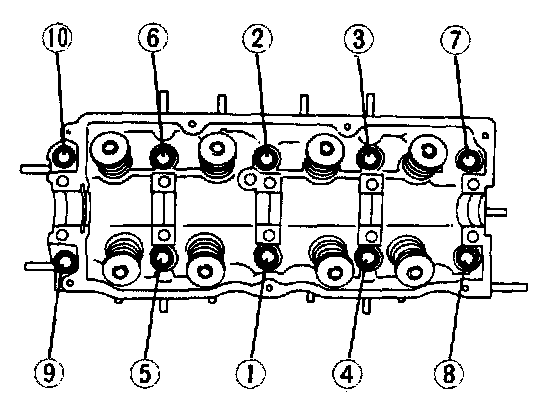

Cylinder Head Installation:

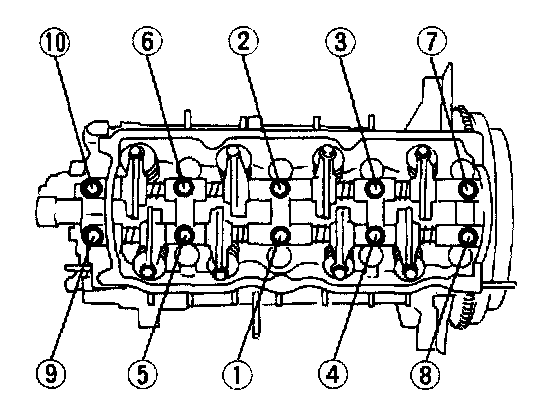

Camshaft/Rocker Arm Installation:

Torque Specifications

Rocker Shaft Assembly Bolts 18 - 26 Nm (13 - 20 ft. lbs.)
Camshaft Pulley Bolt 47 - 65 Nm (35 - 48 ft. lbs.)
Timing Belt Cover Bolts 7 - 10 Nm (61 - 87 ft. lbs.)
Exhaust Manifold X Cyl. Head 21 - 28 Nm (16 - 21 ft. lbs.)
Intake Manifold X Cyl. Head 19 - 25 Nm (14 - 19 ft. lbs.)
Cylinder Head Cover 3 - 4 Nm (24 - 34 inch lbs.)
Spark Plugs 15 - 23 Nm (11 - 17 ft. lbs.)
