Engine Control Module: Testing and Inspection

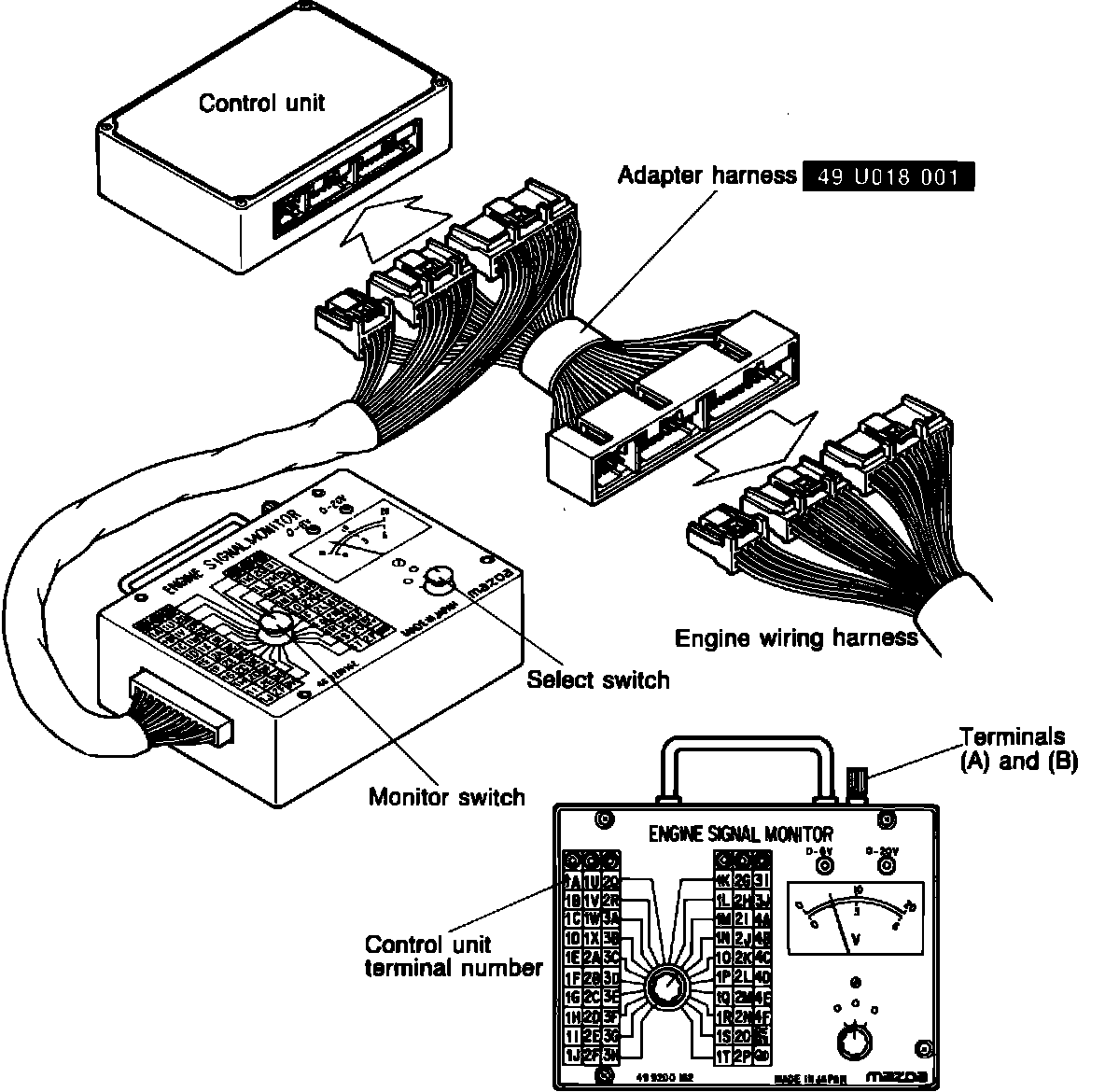

Fig. 17 Emission control unit test connections:

1. Start engine and allow to reach normal operating temperature, then shut engine off.
2. Connect engine signal monitor and adapter to control unit as shown, Fig. 17.

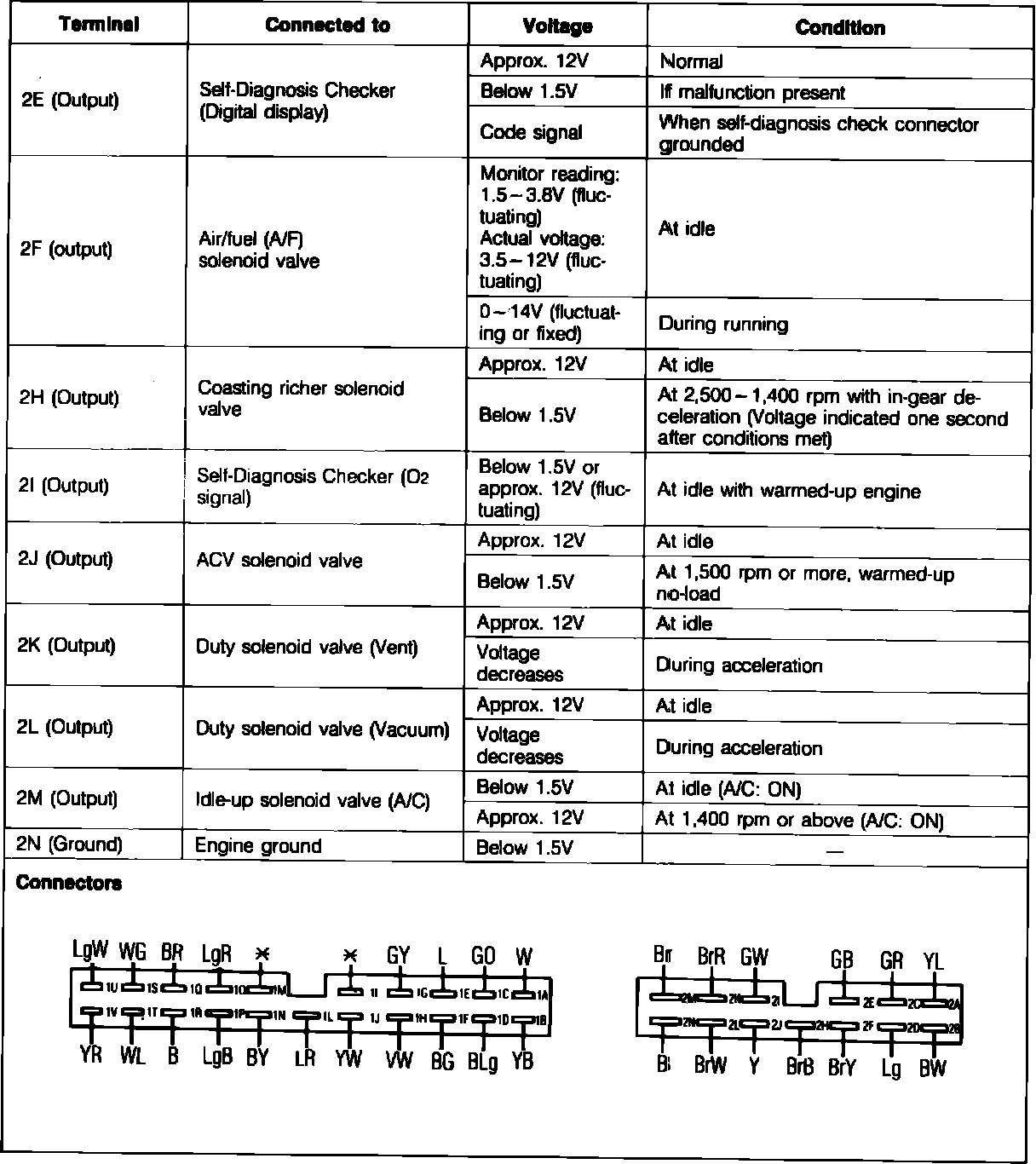

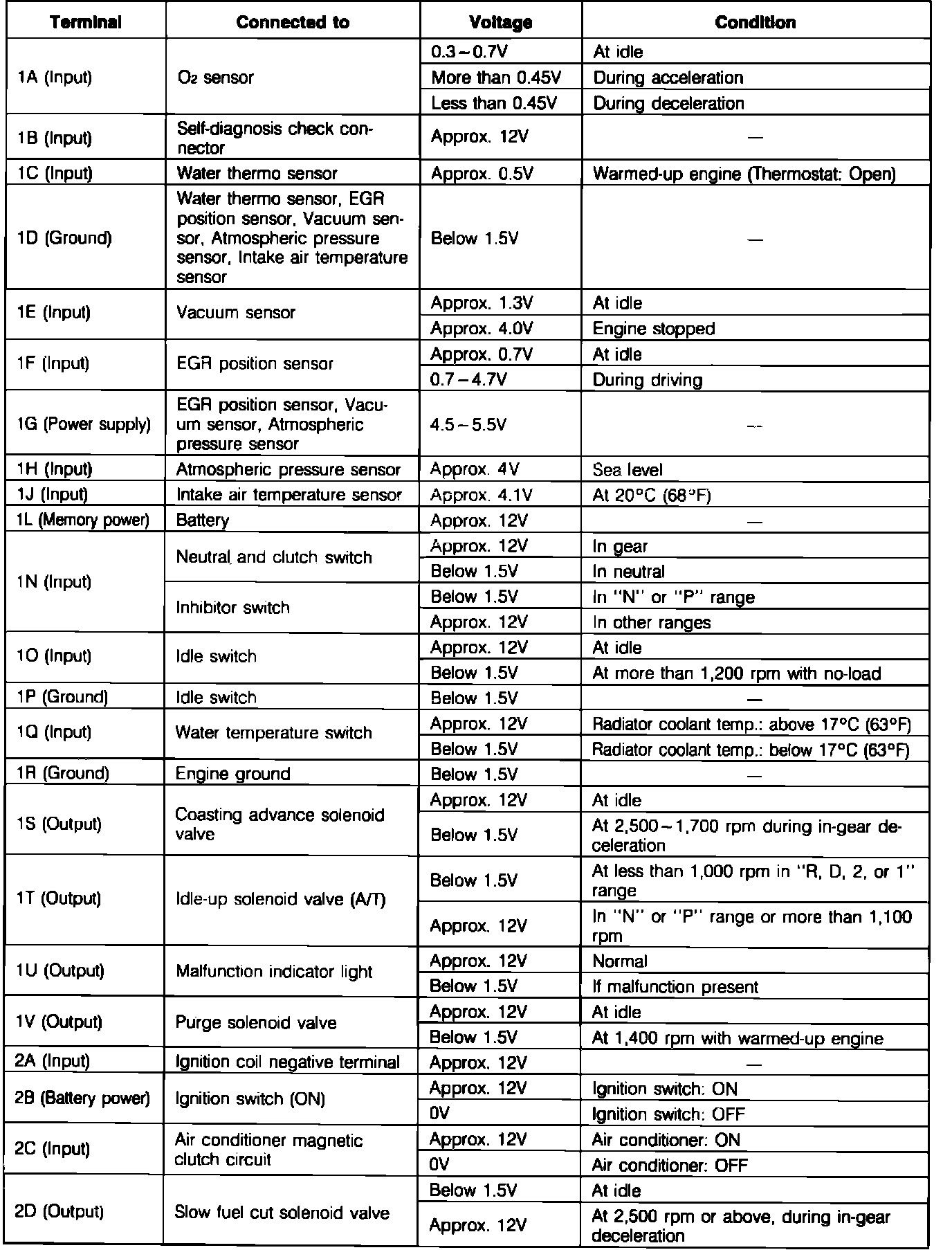

Fig. 18 Emission control unit test specifications.:

3. Turn ignition switch to On position, then measure voltage of each terminal and compare to specifications, Fig. 18. If voltage readings are not as specified, check all wiring and connections in circuit before checking or replacing component.
