Pick-Up Coil: Testing and Inspection

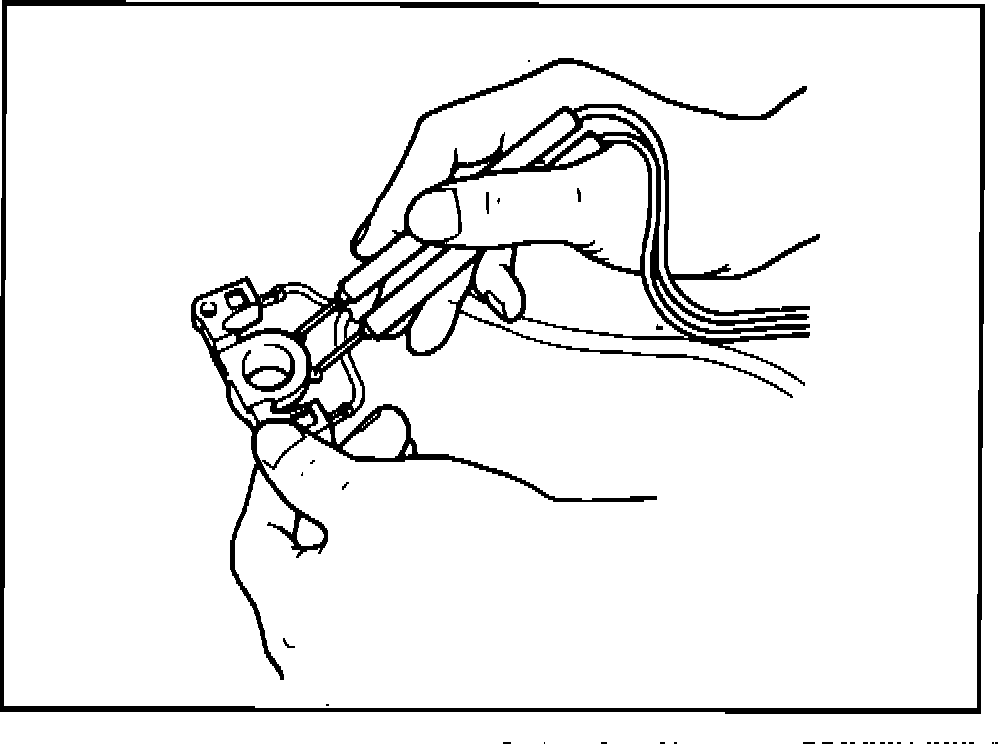

Fig. 19 Testing pickup coil:

1. Connect an ohmmeter to the pick-up coil Fig. 19.
2. Measure the resistance (900-1,200 ohms).
3. If not within specification, replace it.
