Cruise Control: Testing and Inspection

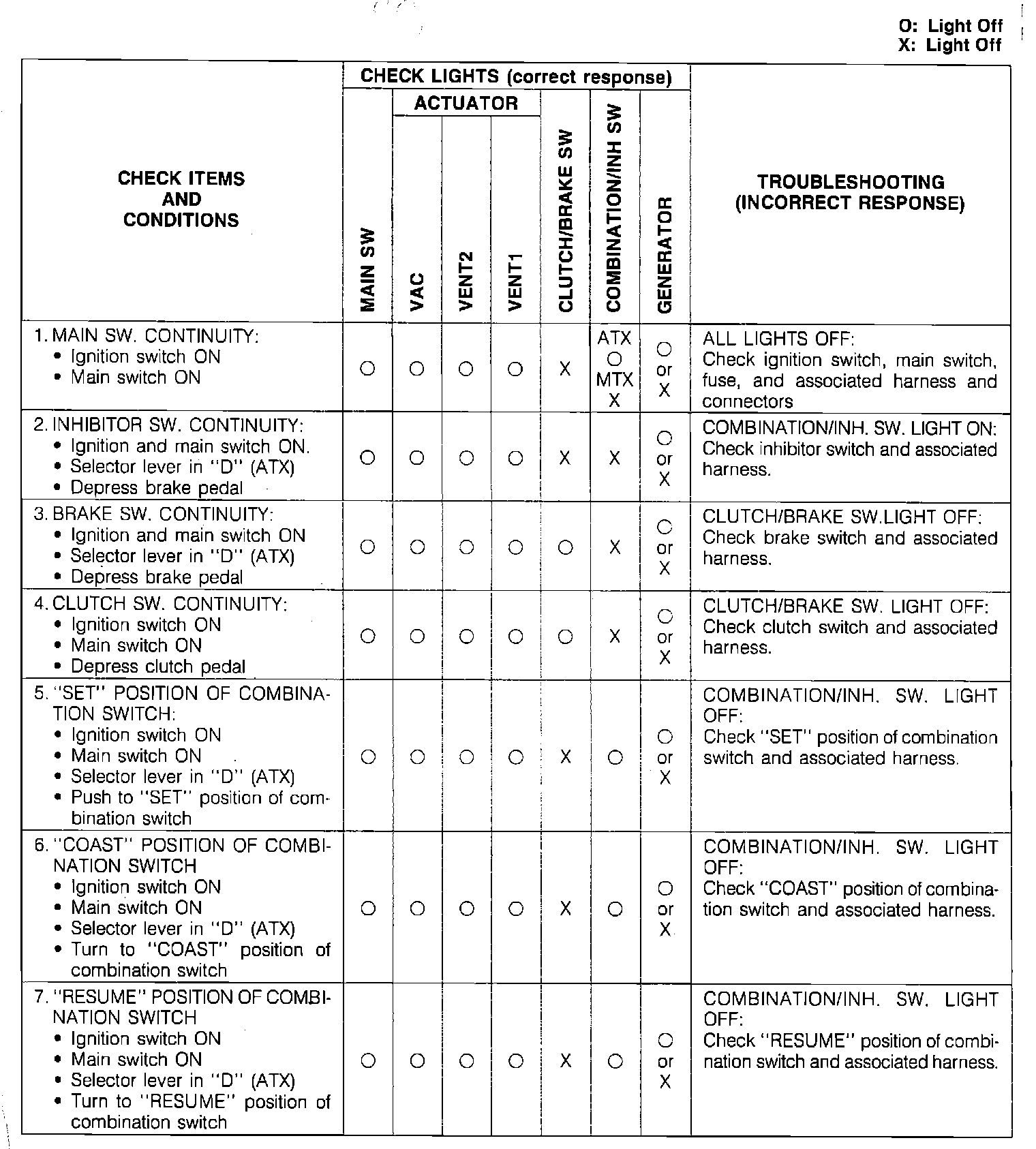

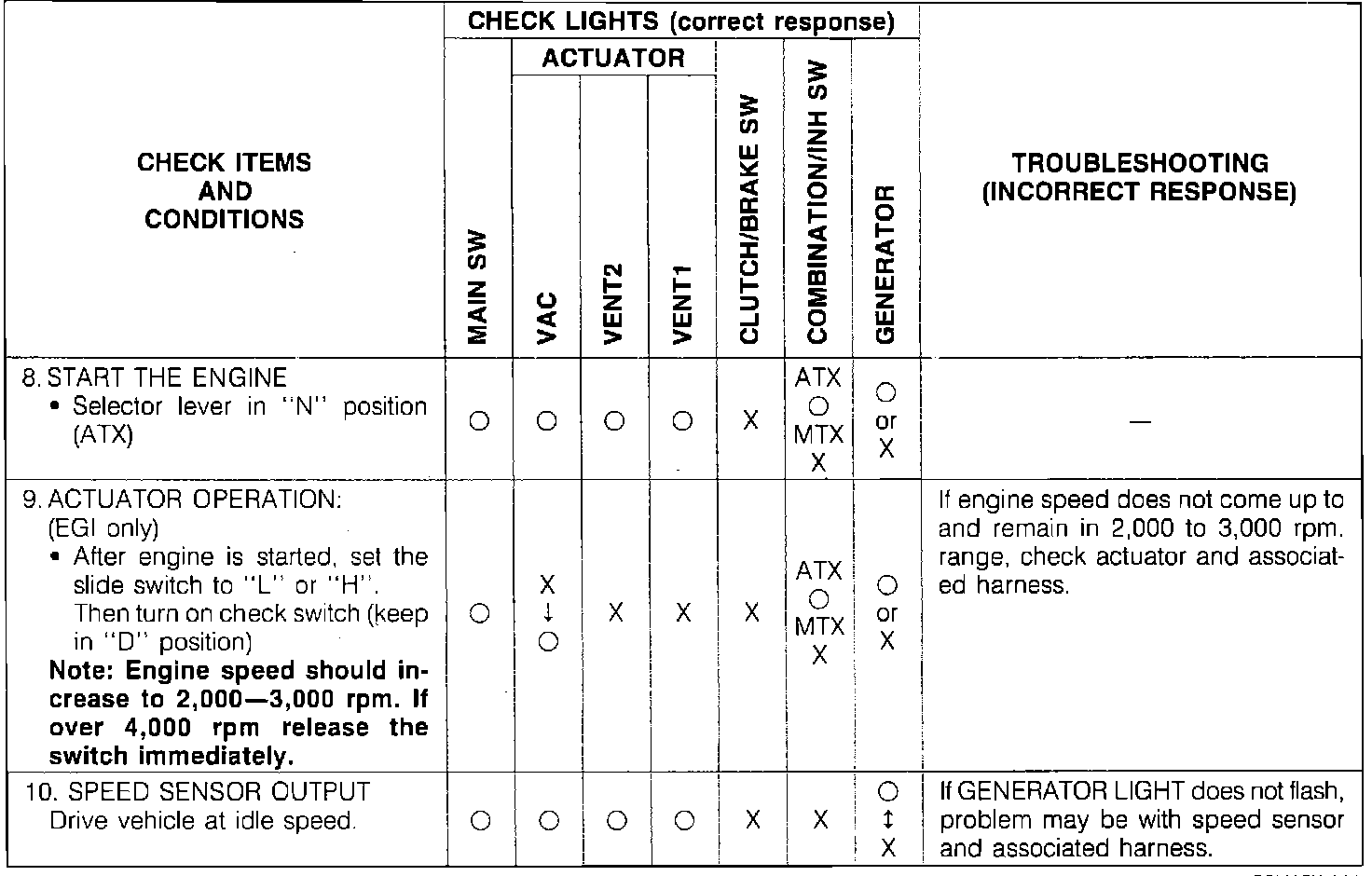

Fig. 3 Speed Control Troubleshooting Chart Using ACC Checker.:

1. To connect ACC checker No. 499200010, proceed as follows:
a. Depress lock hook of the harness connector.
b. Ensure ignition is turned off, then remove connector from ACC control unit.
c. Connect harness connector to ACC harness connector.
2. Check speed control components as shown in Fig. 3.
3. If there is a malfunction in the speed control system, and no problem is found when using the ACC checker, replace the cruise control unit.
