Mazda
>>
1989
>>
626 L4-2184cc 2.2L SOHC F2
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Charging System
>>
Manual Transmission
Manual Transmission

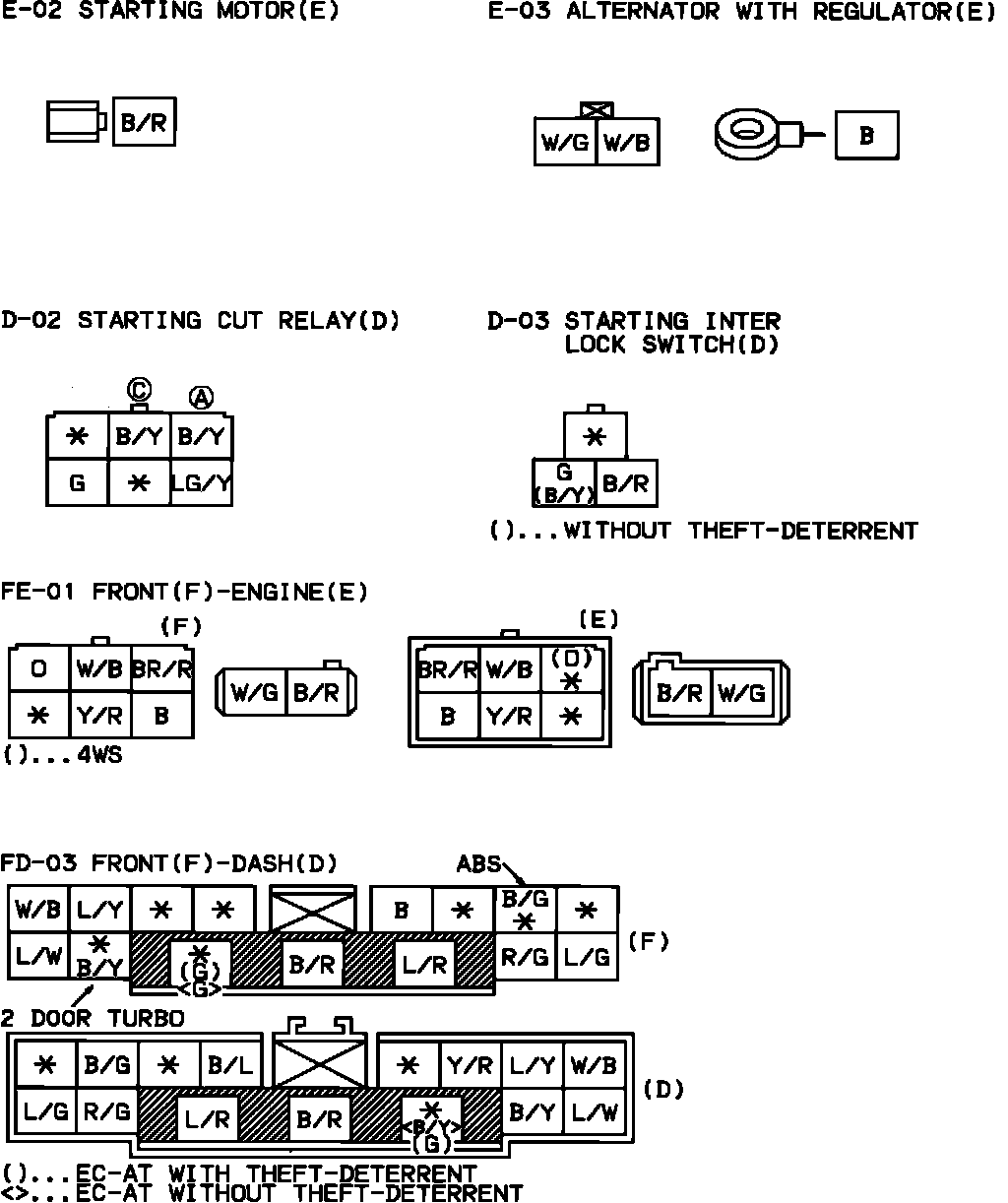

Connector Identification:
