Control Assembly: Testing and Inspection

Rec-Fresh Selector Door Actuator Inspection

1. Remove the undercover and glove box.

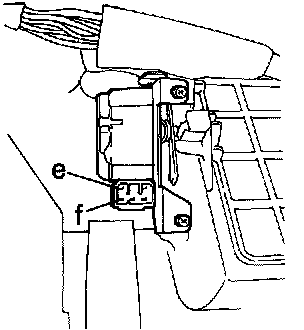

2. Disconnect the REC-FRESH selector door actuator connector.

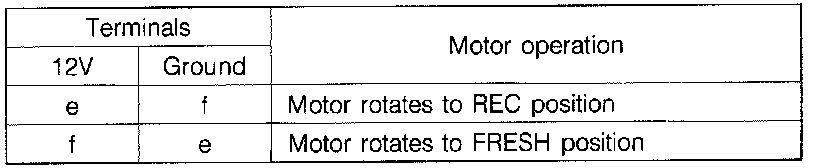

3. Check the actuator operation by applying battery voltage.
4. If not as specified, replace the actuator
