Clutch Switch: Testing and Inspection

1. Disconnect the clutch switch connector.

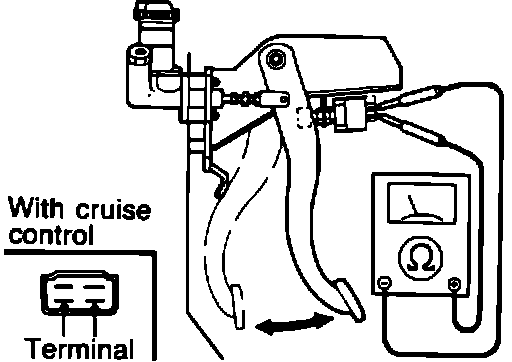

Clutch Switch Inspection:

2. Check for continuity of the switch with an ohmmeter. With the clutch pedal depressed, there should be no continuity between the switch terminals. With the clutch pedal released, there should be continuity between the switch terminals.
3. Reconnect the clutch switch connector after testing.
