Electric Load Sensor: Testing and Inspection
Engine Load Control Unit Inspection:
1.

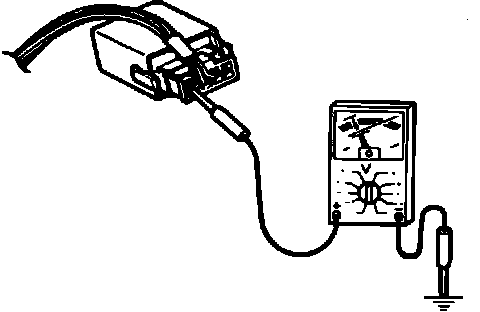

Connect a voltmeter between the engine load control unit and ground.
2.
Start the engine and check the terminal voltages as described in the chart below.

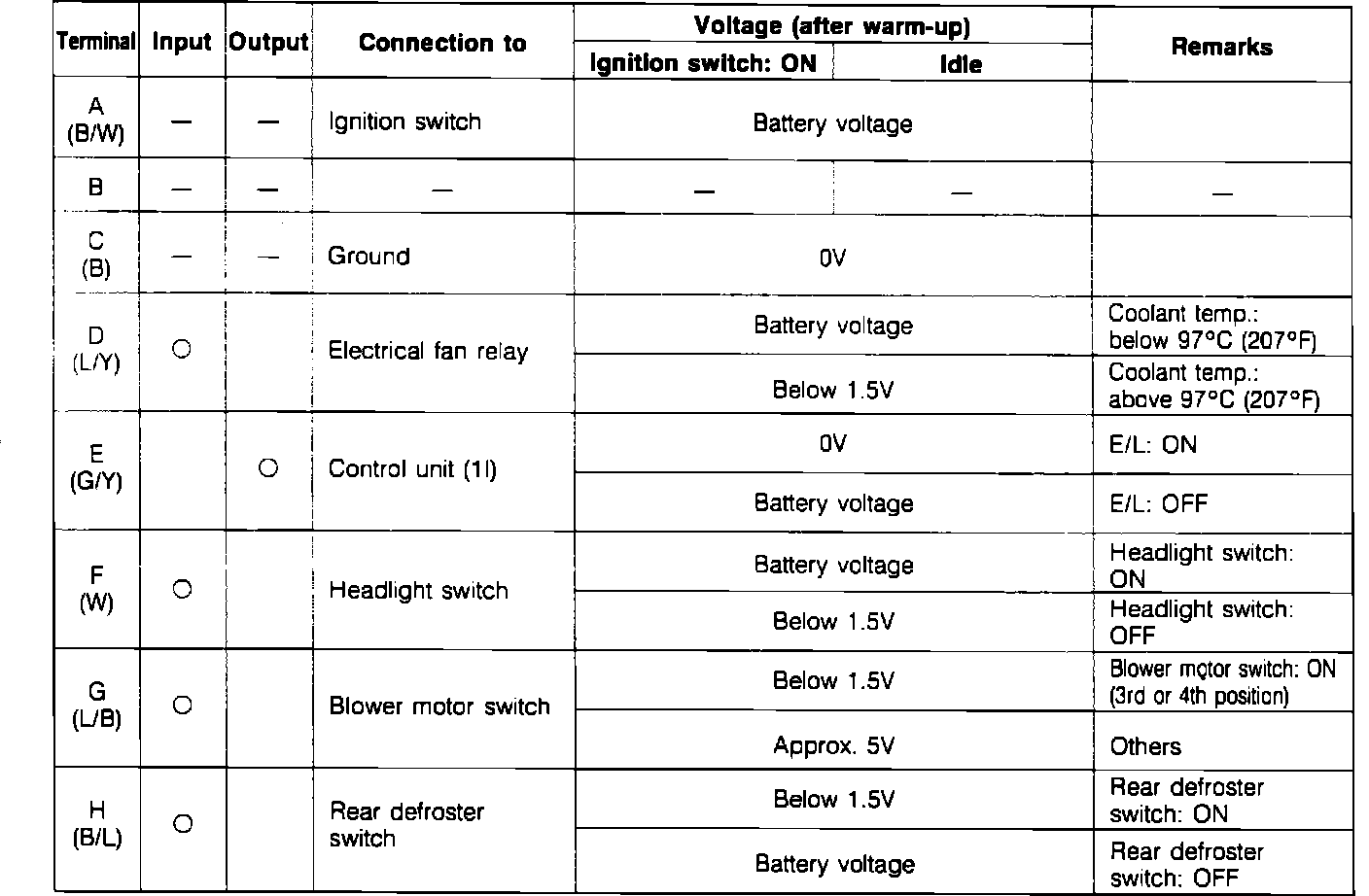

Engine Load Control Unit Terminal Voltages:
