Inhibitor Switch

1. Disconnect the inhibitor switch connector.

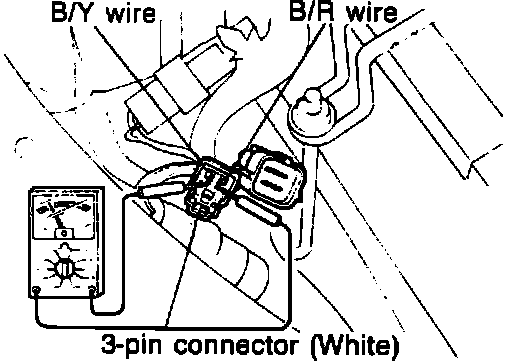

Inhibitor Switch Connector:

2. Connect an ohmmeter to the switch connector. In Park and Neutral, there should be continuity through the switch. In any other range, there should be no continuity through the switch.
3. Reconnect the switch connector after checking.
