Neutral Switch

1. Disconnect the neutral switch connector.

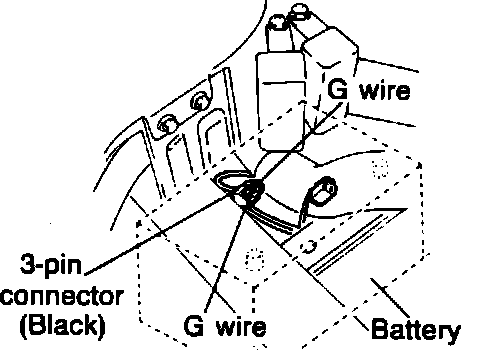

Neutral Switch Connectors:

2. Check for continuity of the switch with an ohmmeter. With the transmission in neutral, there should be no continuity between the switch terminals. With the transmission in gear, there should be continuity between the switch terminals.
3. Reconnect the neutral switch connector after testing.
