Distributor: Service and Repair

DISTRIBUTOR

Distributor Replacement:

REMOVAL

1. Remove high tension leads.
2. Disconnect vacuum hoses and wiring.
3. Turn crankshaft to #1 cylinder TDC.
4. Remove mounting bolts and lift off distributor. Do not turn engine while distributor is removed.

INSTALLATION

Install in the reverse order of removal and note the following:

1. Coat the O-ring with engine oil.
2. Ensure that #1 cylinder is at TDC.

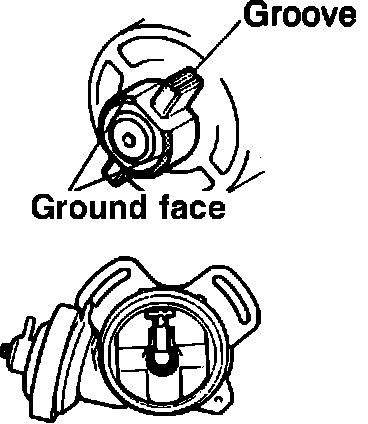

3. Align distributor drive blade and rotor as shown on image.
4. After installation, adjust ignition timing. Refer to ADJUSTMENT PROCEDURES.
5. Tighten mounting bolts to 14 - 19 ftlb (19 - 25 Nm).
