Torque Specifications

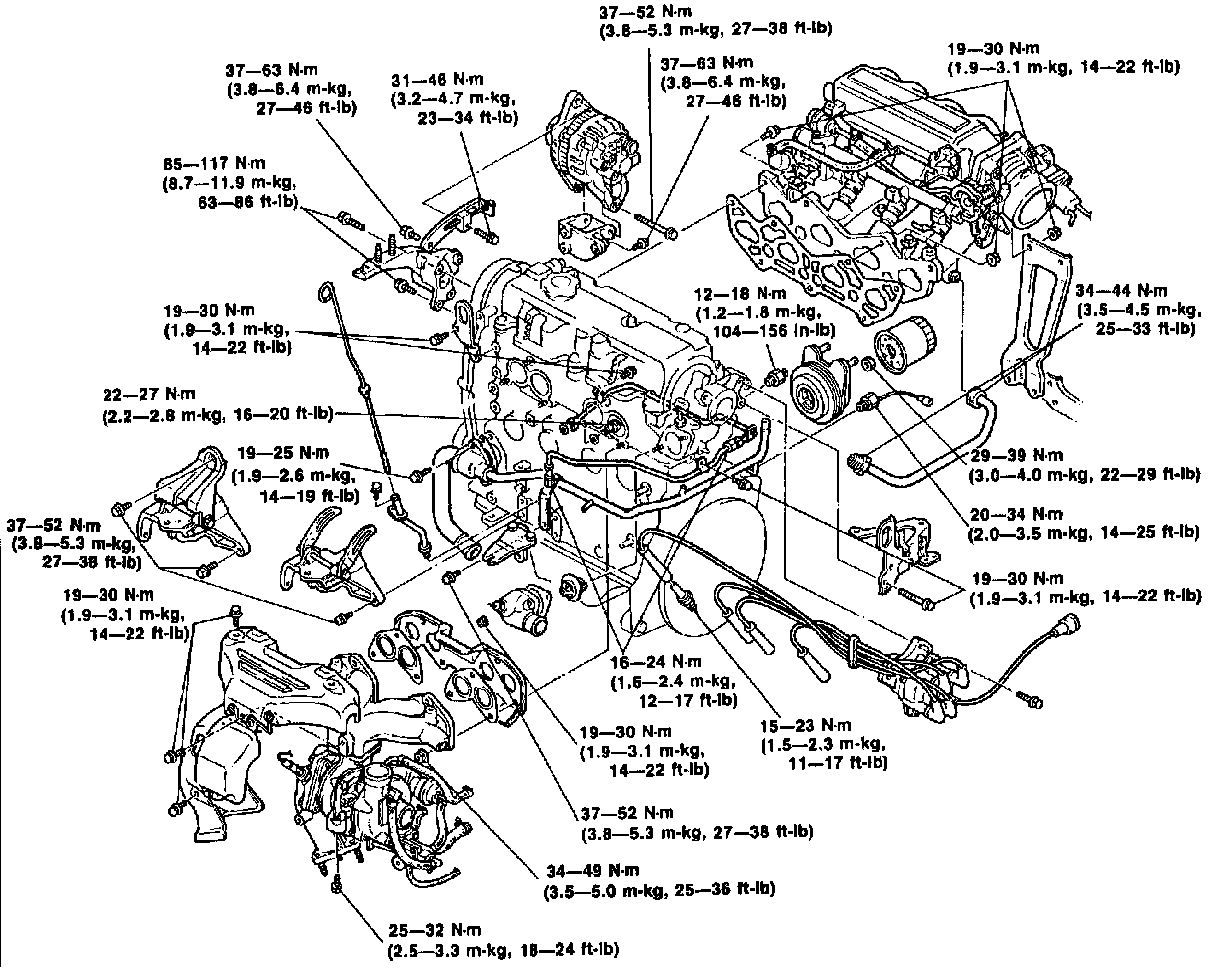

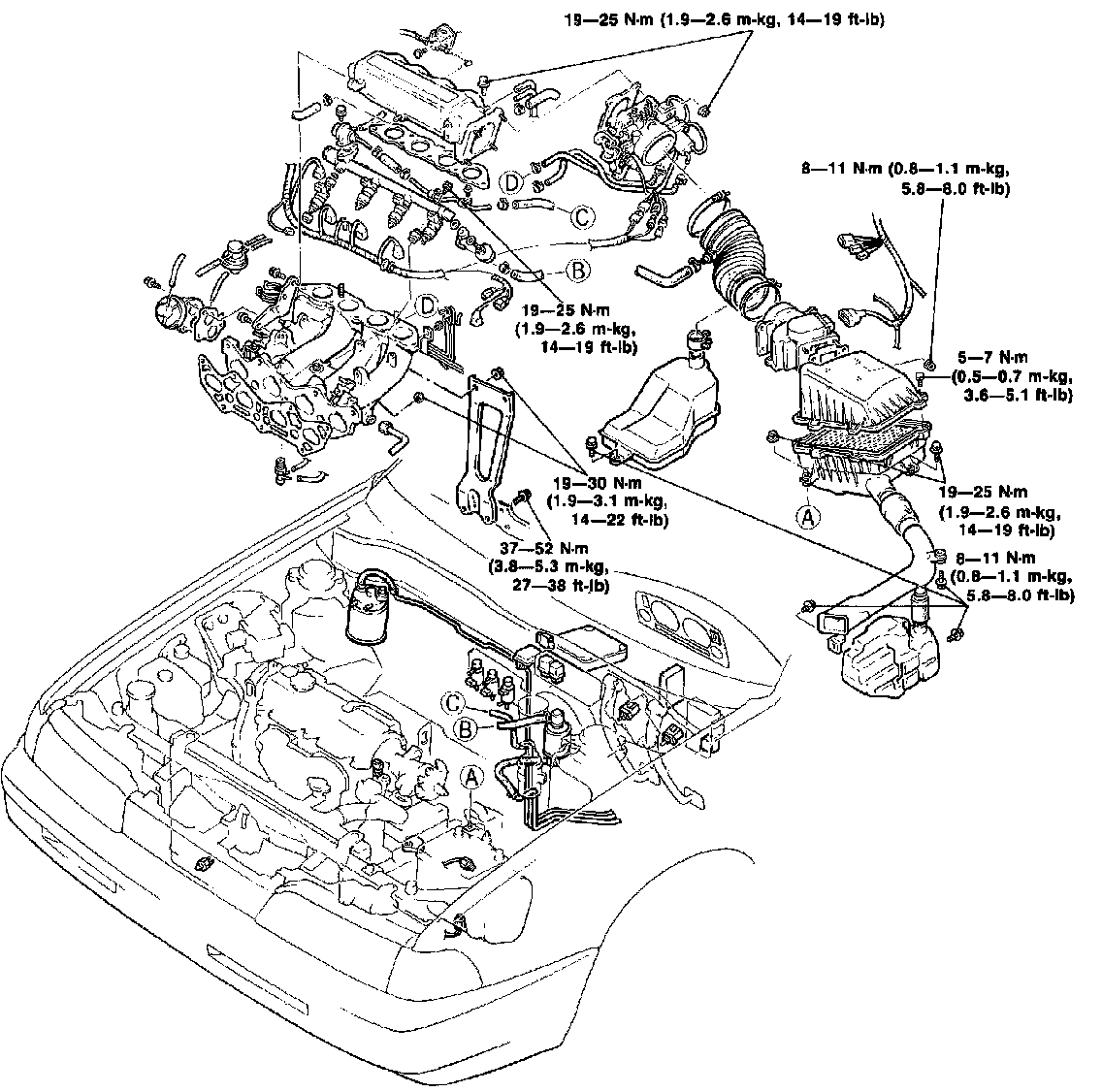

Intake Non-turbo:

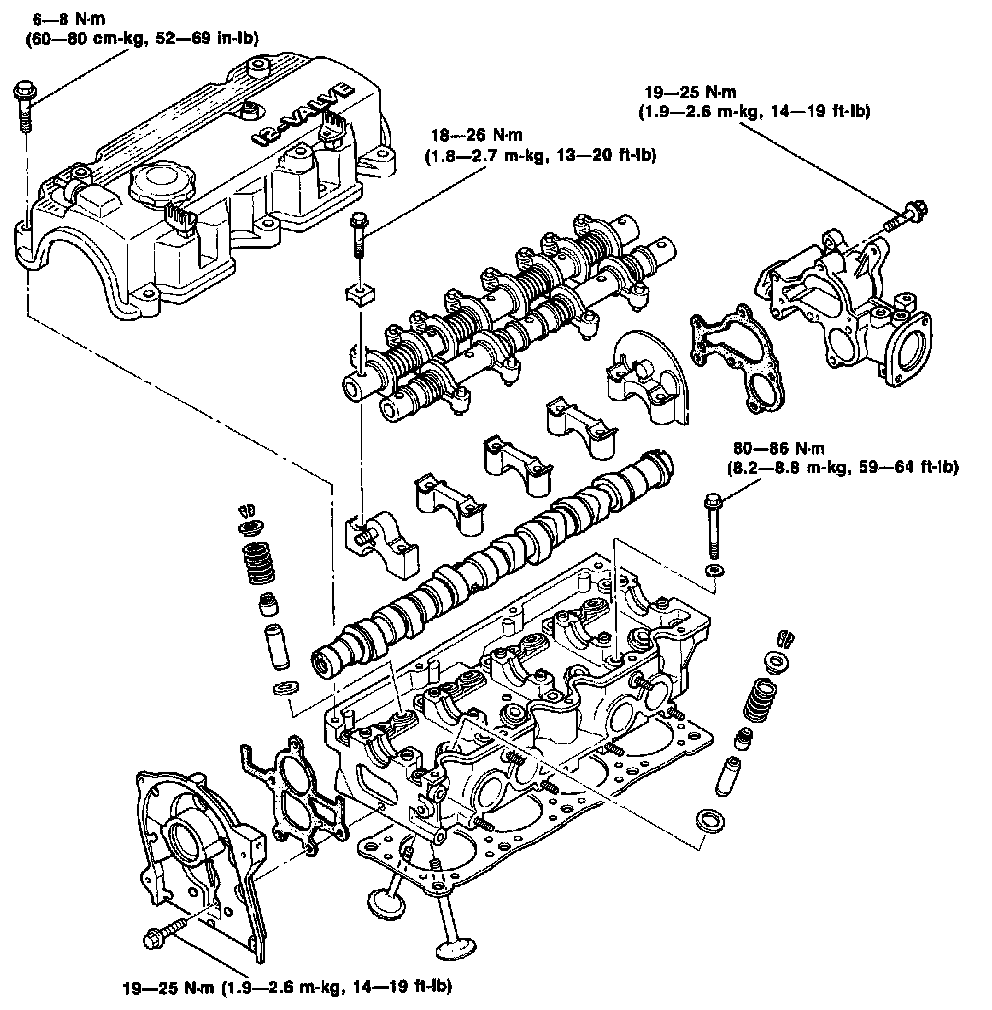

Upper Engine:

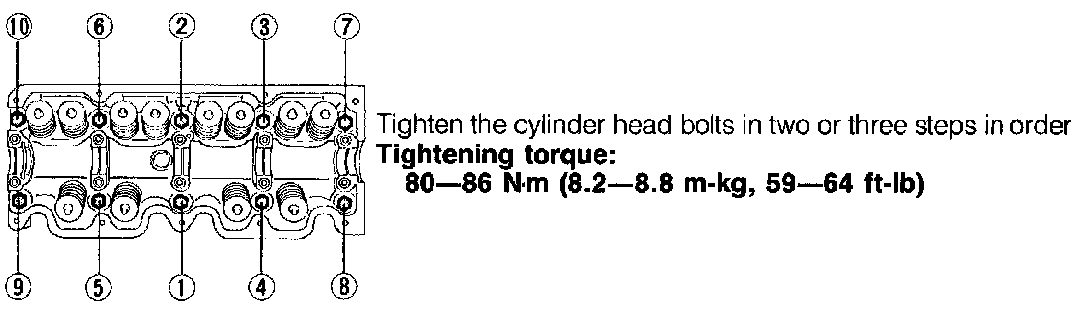

Head Bolt Torque/Sequence:

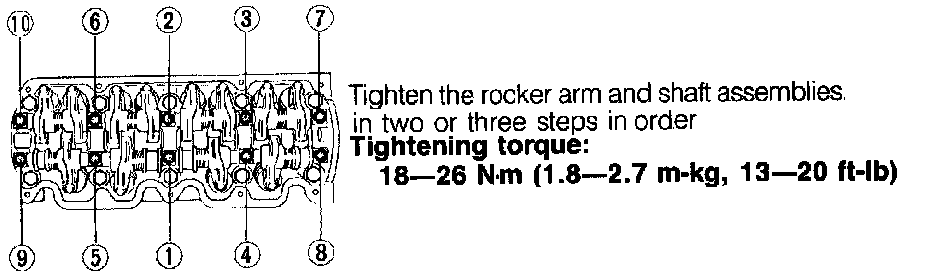

Rocker Shaft Torque/Sequence:
