Without Scantool

AFTER-REPAIR PROCEDURE

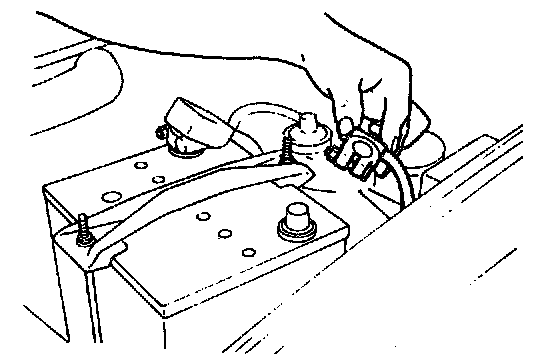

1. Cancel the memory of malfunctions by disconnecting the negative battery terminal for at least five seconds, then reconnect it.

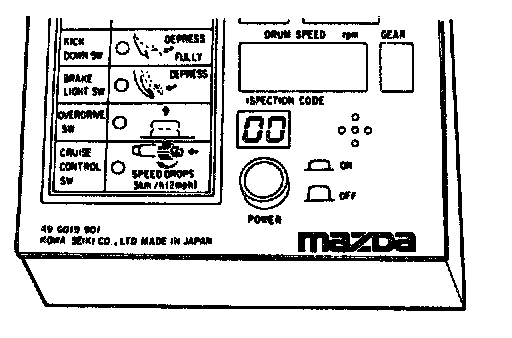

2. Remove the EC-AT tester if it is connected.

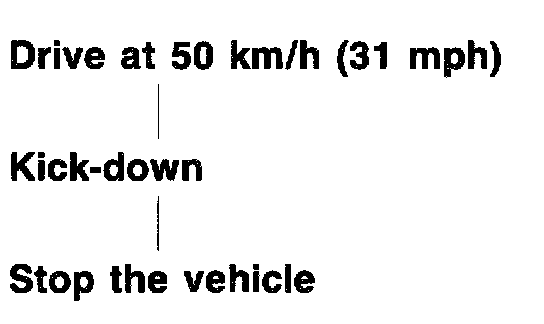

3. Drive the vehicle at 50 km/h (31 mph), then depress the accelerator pedal fully to activate kick-down. Stop the vehicle gradually.





4. Reconnect the EC-AT tester to the service connector.
5. Ground the EC-AT service connector with a jumper wire.
6. Turn the ignition switch ON.
7. Check that no code numbers are displayed.
