Location 1 (Door Mirrors)

A. Manual & Powered Mirrors.

1. Using a flat screwdriver, carefully pry the inner sail garnish out of its position. (Start prying at top corner of sail garnish then work downward).

CAUTION: Take care not to break the fastening tab at the bottom of the sail garnish.

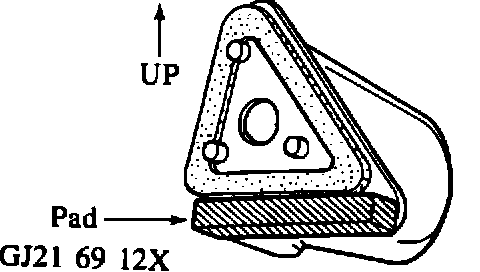

2. Remove mirror and install pad on lower side of base as shown in the illustration.

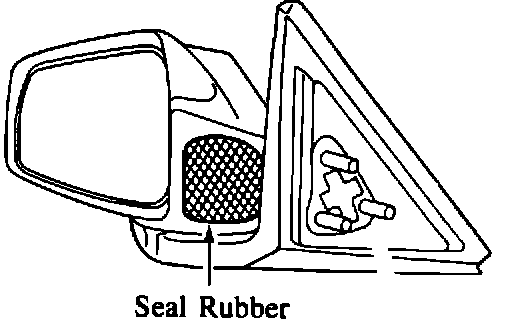

3. Install seal rubber. P/N GJ25 69 11X (RH) P/N GJ25 69 17X (LH)



B. Power Mirror

1) Remove seal rubber.

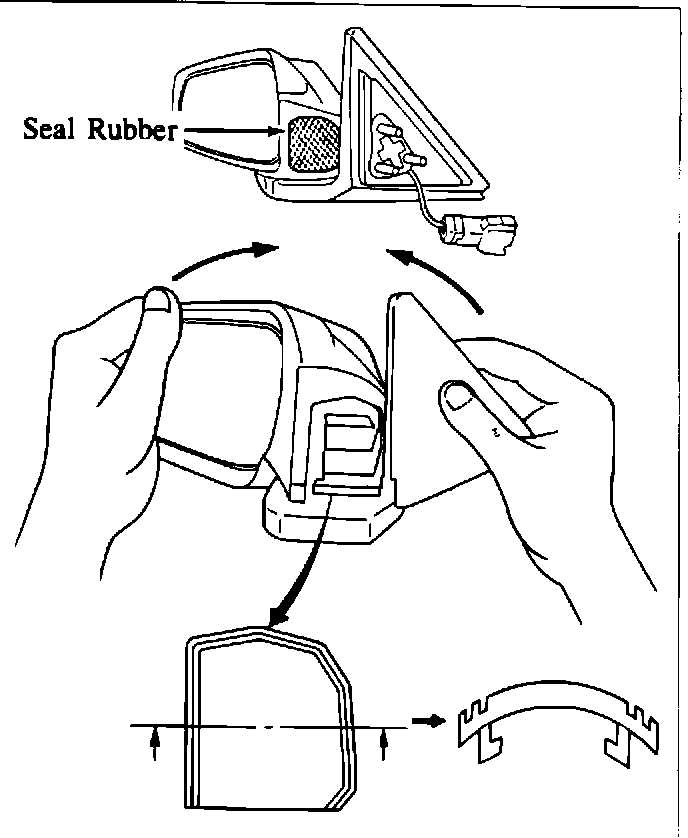

2) While holding mirror assembly between thighs, push the assembly in the direction indicated by the arrows shown in the illustration and install new seal rubber.

Seal Rubber:
P/N GJ35 69 11X (RH) P/N GJ35 69 17X (LH)

3) Move assembly in the direction opposite that described in step 2), and confirm proper position of seal rubber.



C. Manual Mirror

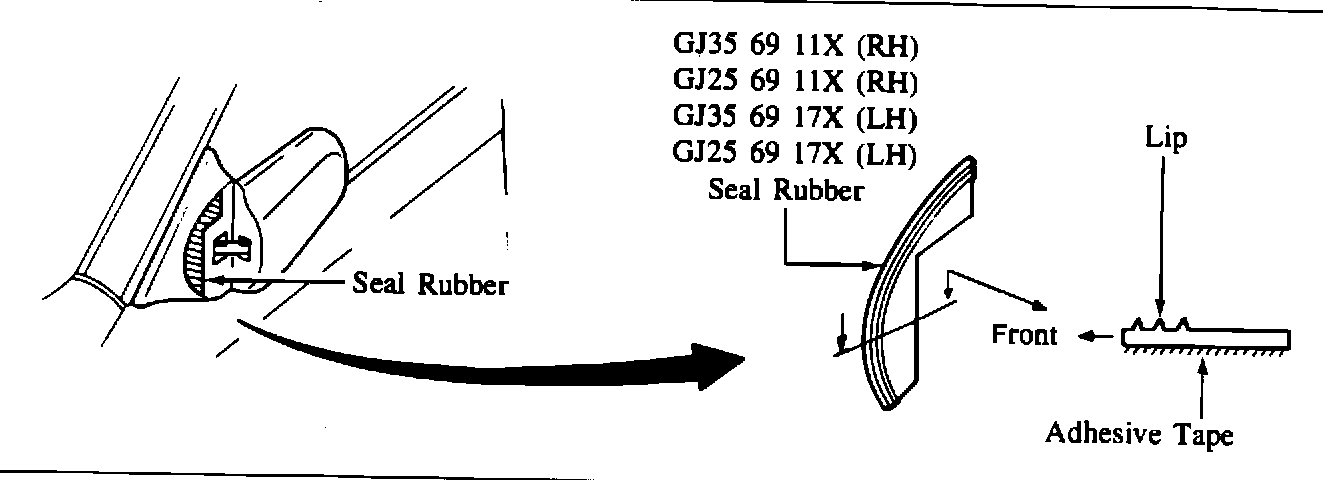

Add respective (right and left) seal rubber to the mirror base.
