Location 4: Glass Guide Rail (Front Door)

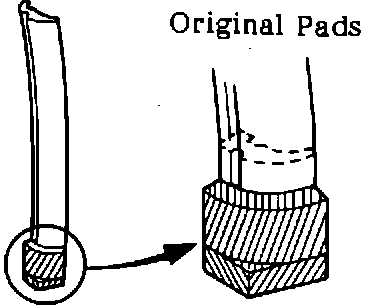

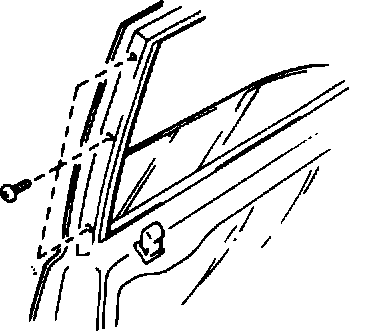

1. Remove the 3 screws which secure the glass guide rail and remove door panel.

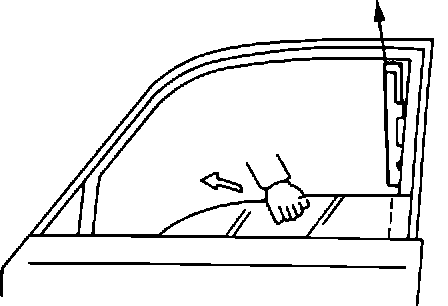

2. Pull the glass guide rail toward the inside of the window frame and up. Move the window glass toward the front of the vehicle as shown.



3. Remove the original glass guide rail pad and replace it with a new one.

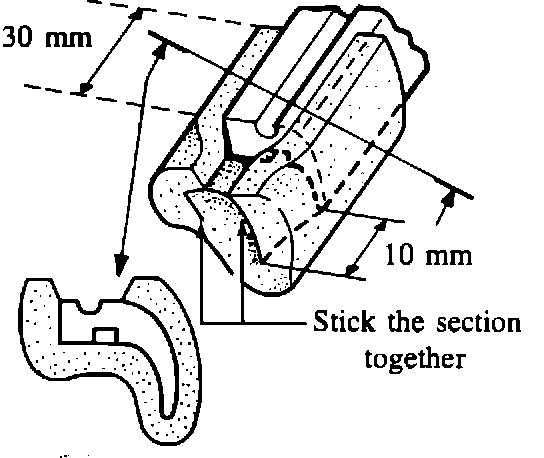

A) Install the glass rail pad so that the top of the pad is 30 mm from the bottom of the guide rail (see illustration).

(P/N GJ21 58 619)



B). The remaining length of the pad (10 mm) should be pinched so that the sides stick together.

4. Reinstall glass guide rail and door panel.

CAUTION: For ease of installation door glass must be up approximately 4 in.
