B Series Truck L4-2184cc 2.2L 2200
>>
Repair and Diagnosis
>>
Diagrams
>>

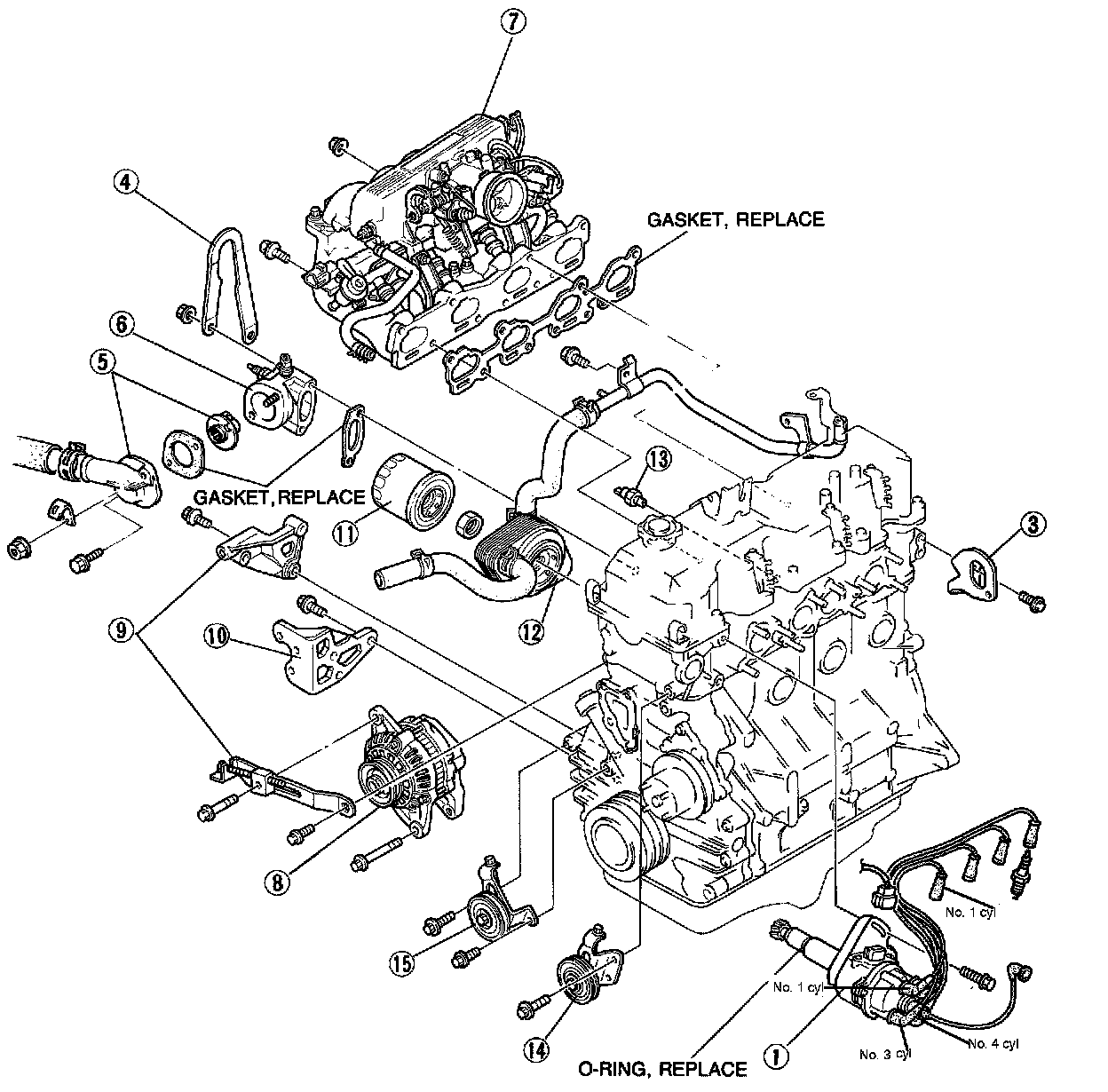

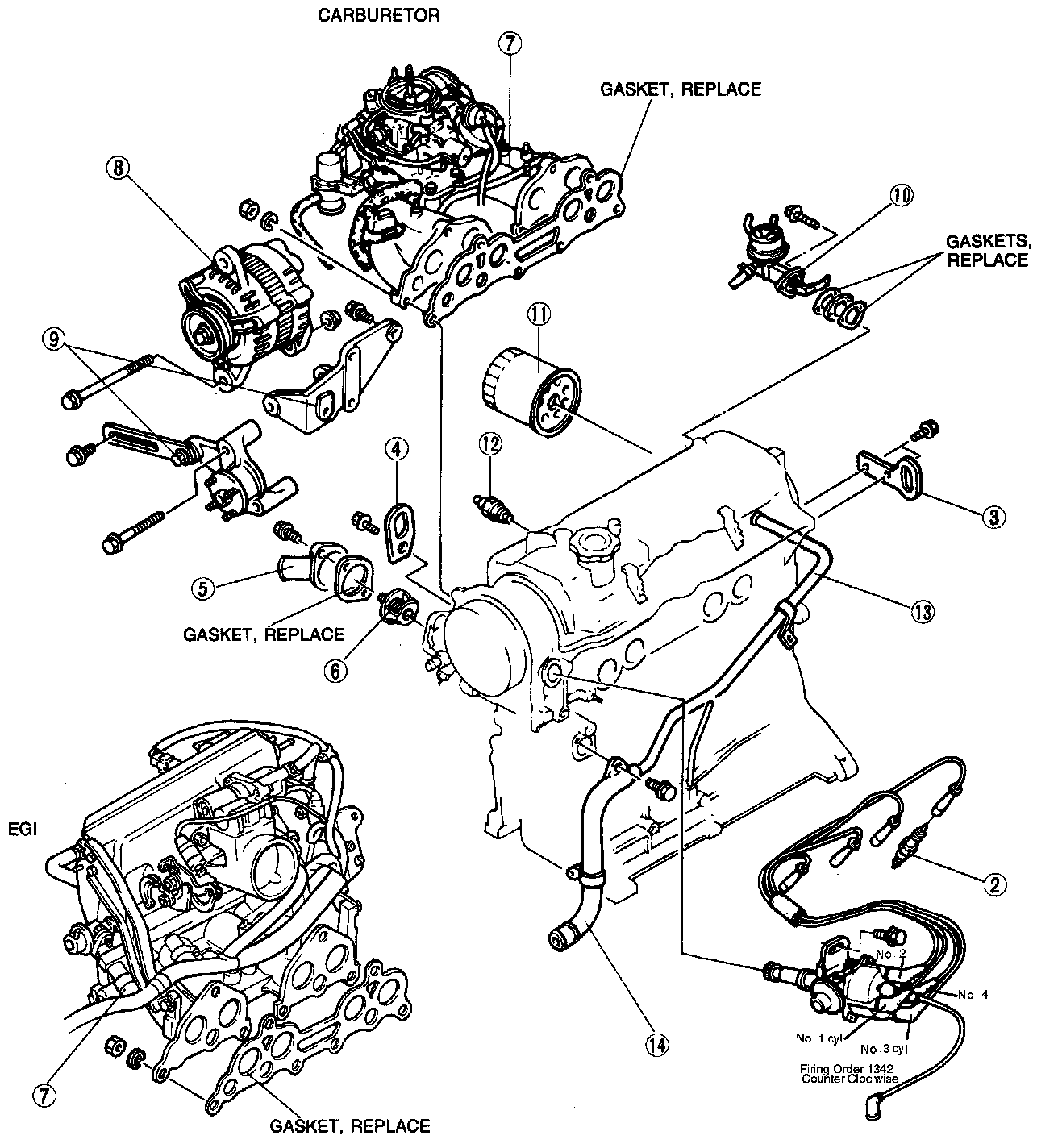

Exploded Views
>>
Engine
>>
System Diagram
>>

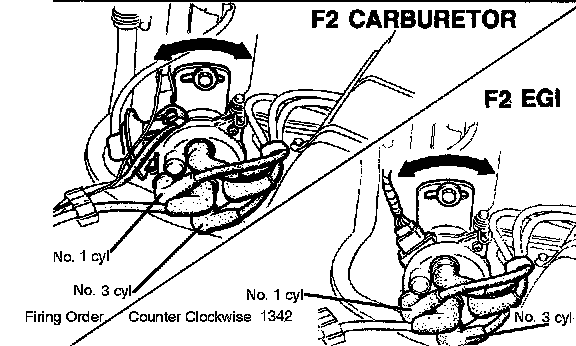

Distributor Cap
Distributor Cap
Distributor Cap

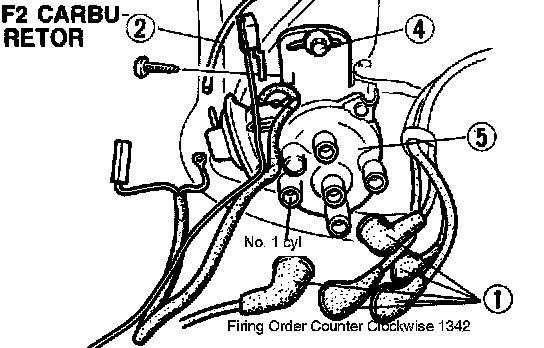

Carburated
Carburated
/

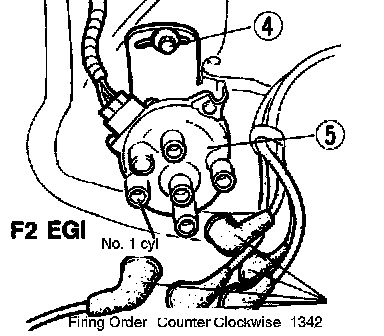

Fuel Injected
Fuel Injected
