Camber

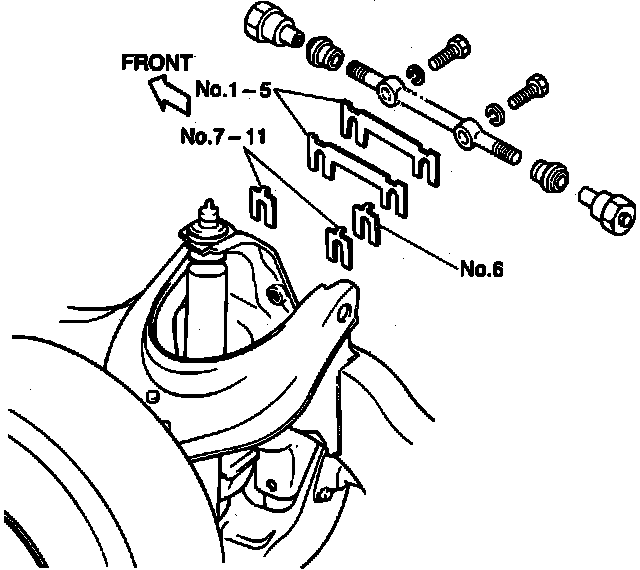

Fig. 1 Adjusting Caster & Camber:

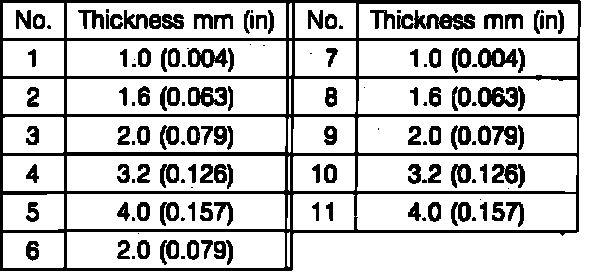

Fig. 2 Shim Thickness Chart:

Caster and camber angles are adjusted by adding or subtracting shims. Refer to Fig. 1 for adjustment shim locations, noting the following:
1. Shims Nos. 1 through 5 are used at left and right sides, shims Nos. 7 through 11 are used at front and rear left and right sides and shim No. 6 (models equipped with power steering) is used at rear left and right sides, Fig. 2.
2. To change camber, shim thicknesses (front and rear) of 1mm results in a change of 1/4°. To change caster, a shim thickness of 1mm results in a change of 1/2°.
