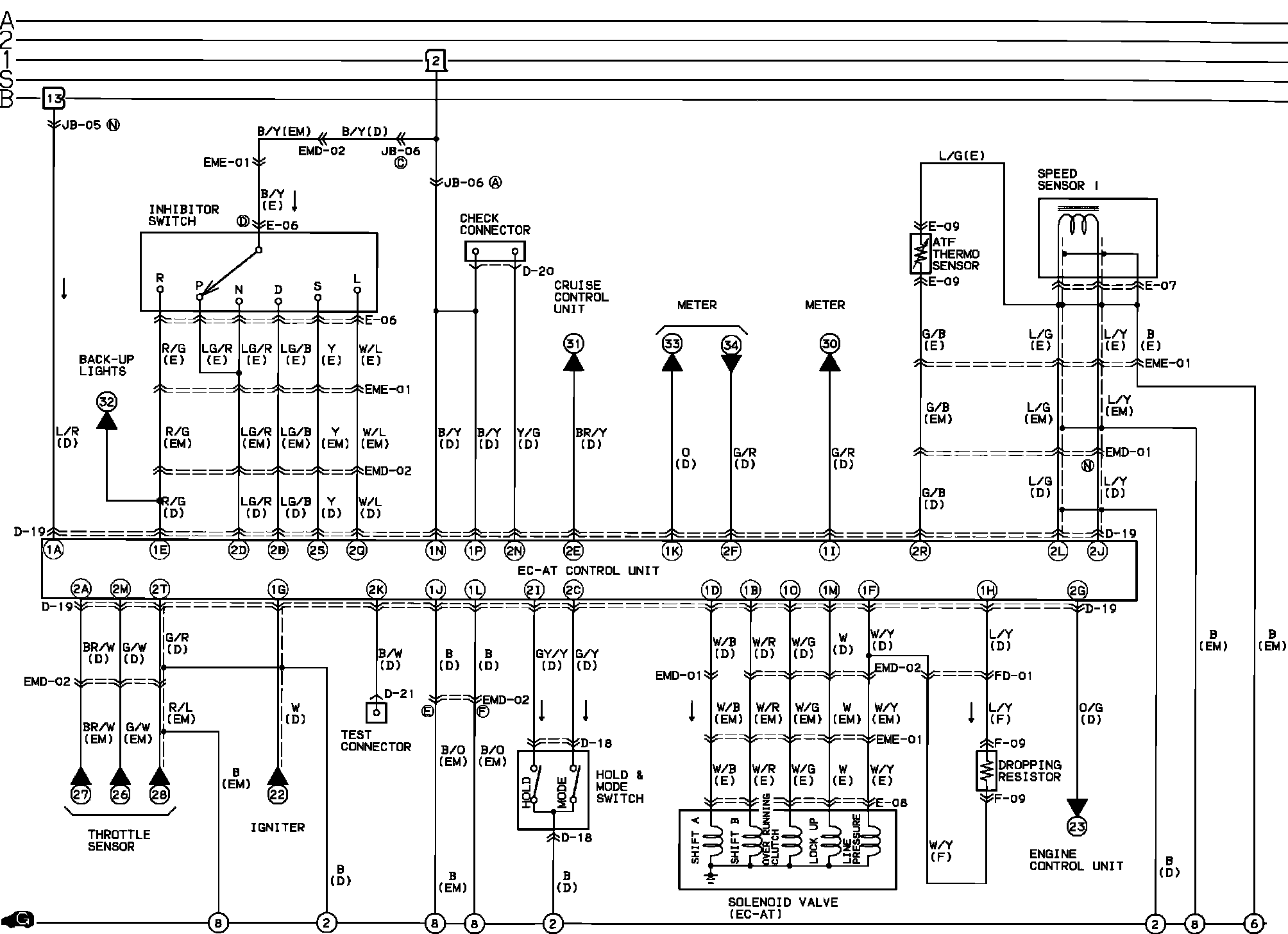

Control Module, A/T

Electrically Control Automatic Transaxle (EC-AT):



Multi-Mode Selection. 4WD:
