Home
>>
Mazda
>>
1989
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
2WD
2WD

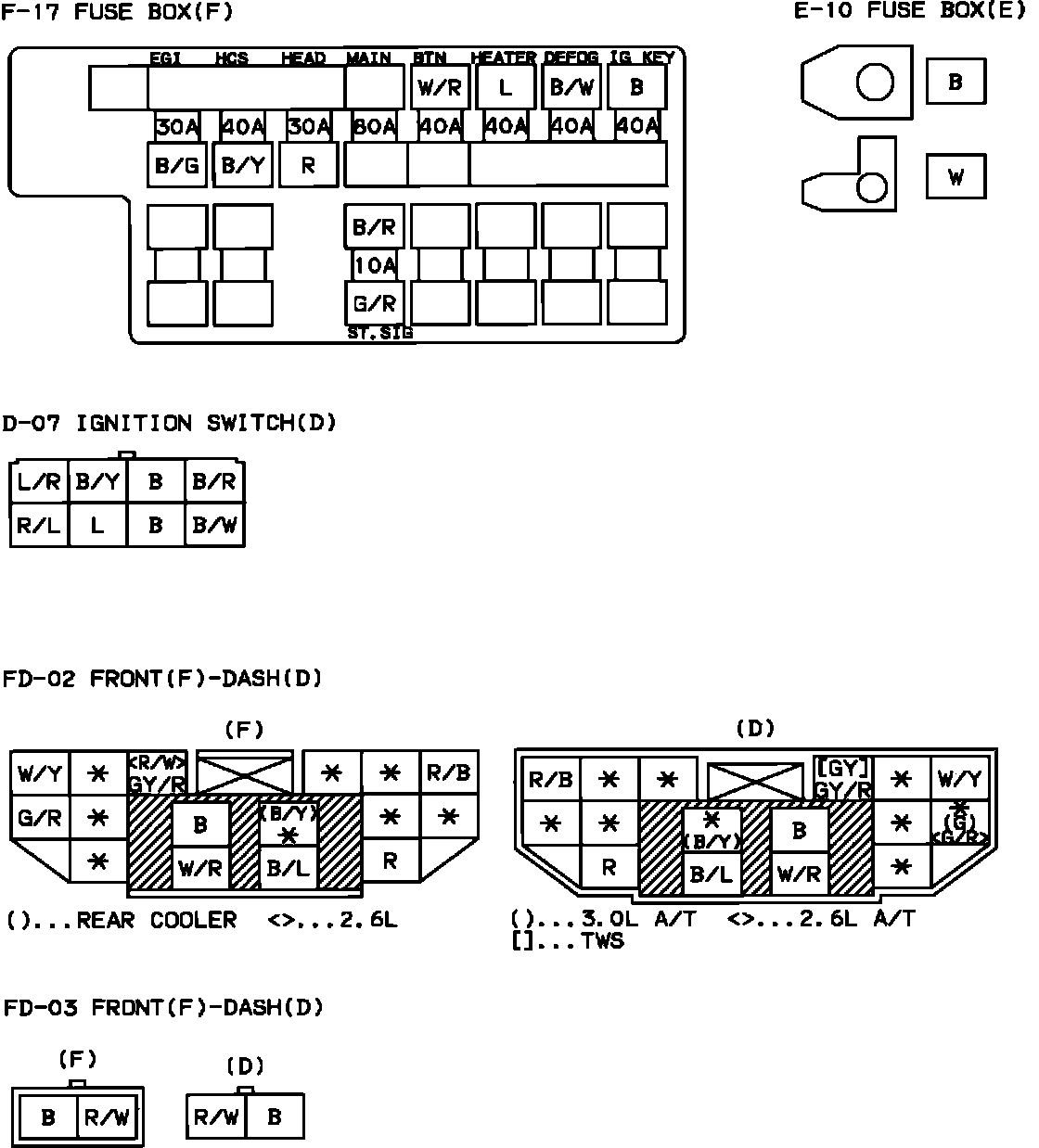

Connector Identification:
Connector Identification:
