Home >> Mazda >> 1989 >> MPV L4-2606cc 2.6L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Automatic Transmission/Transaxle >> Control Module, A/T

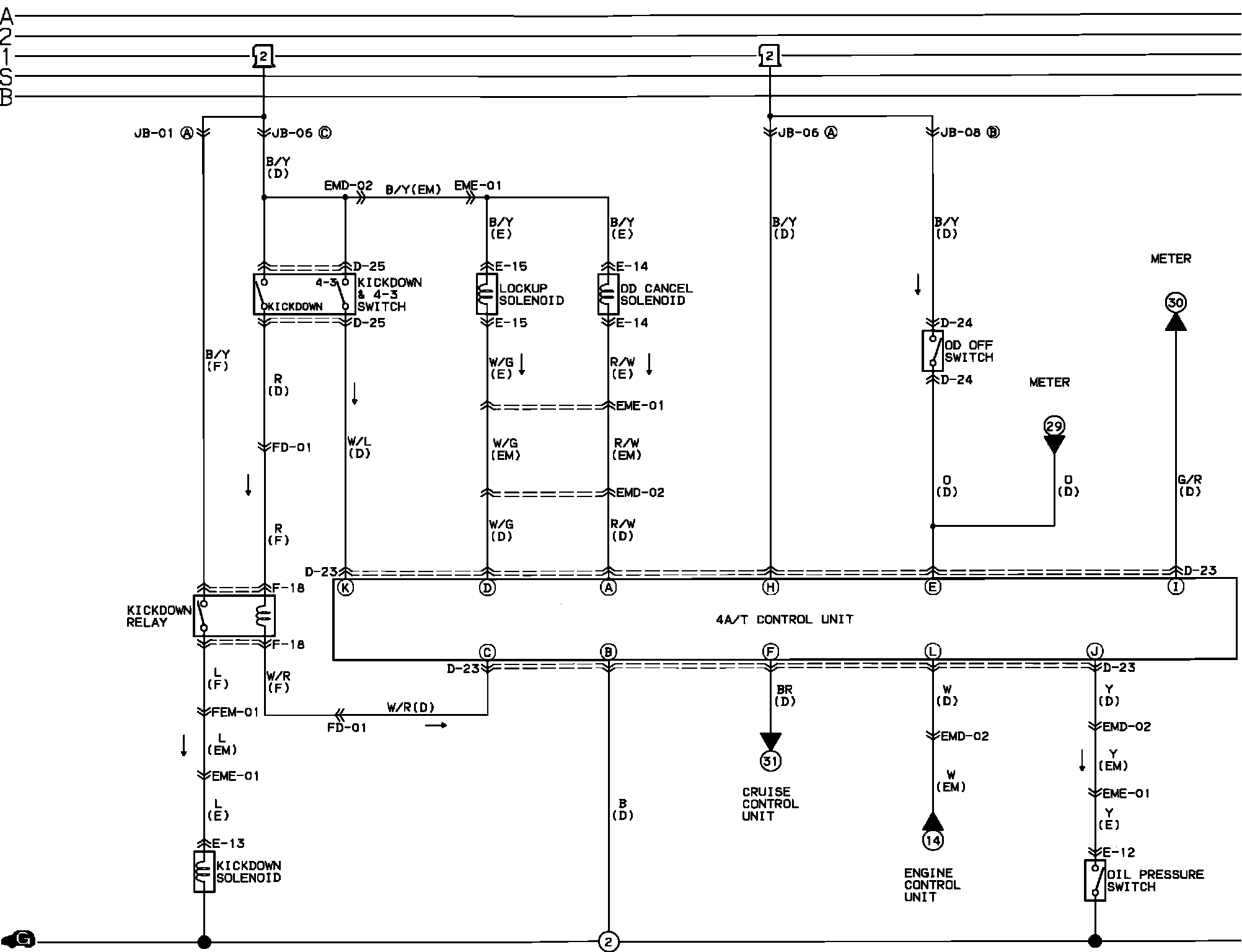

Control Module, A/T

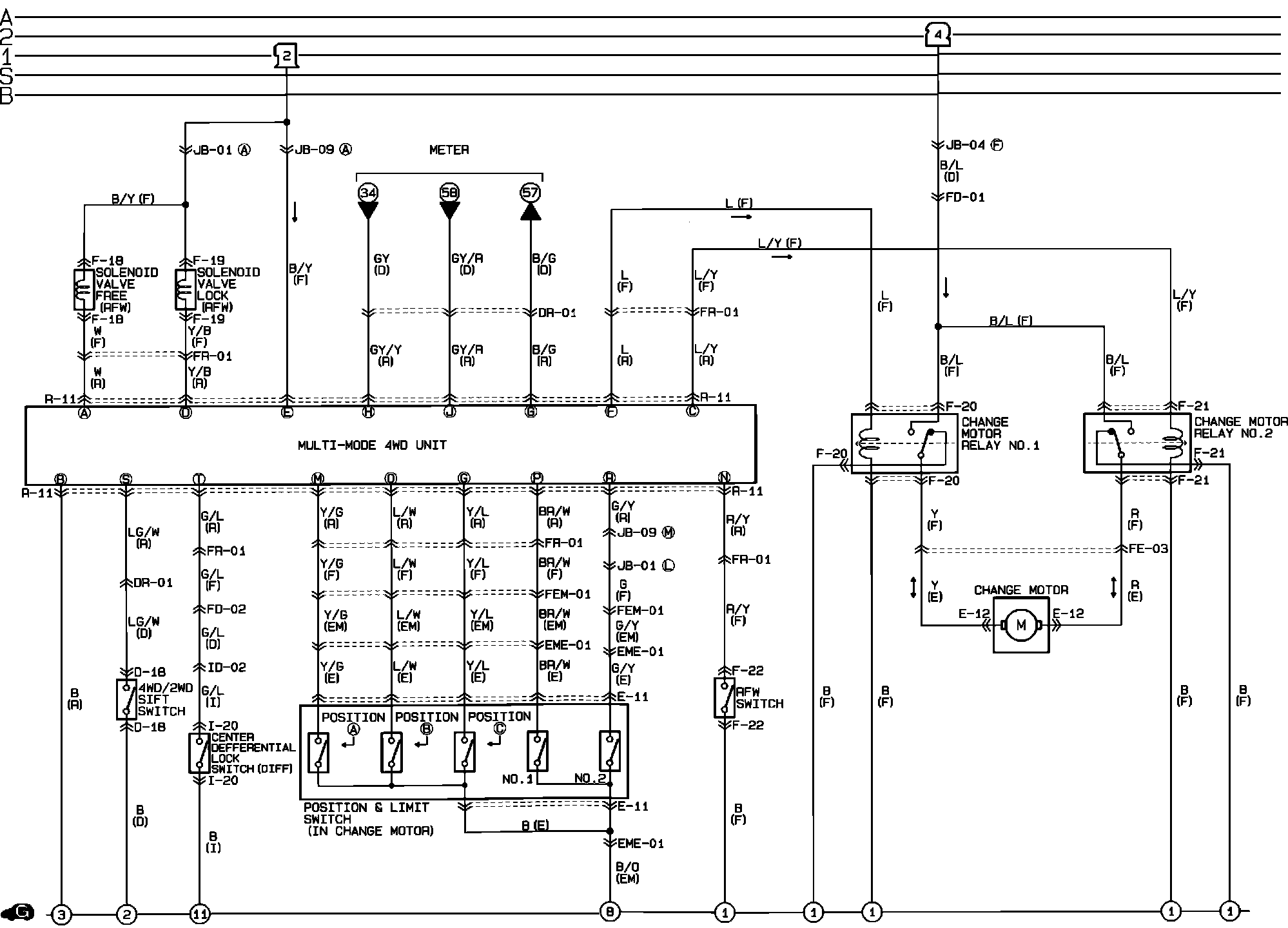

Multi-Mode Selection. 4WD:
