Mazda
>>
1989
>>
MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
2WD
>>
Connector Joint Box
Connector Joint Box

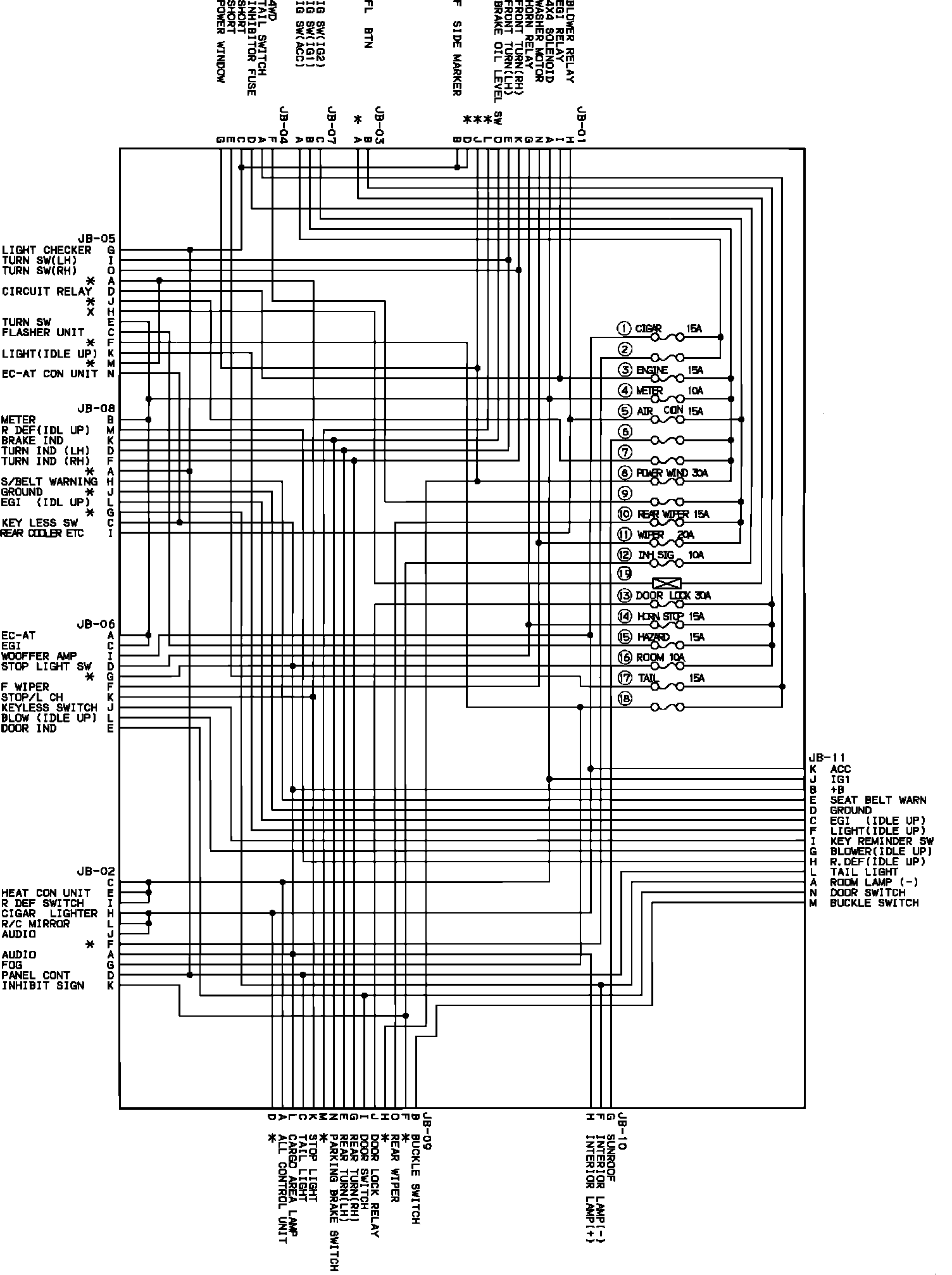

Inter Connection Of Joint Box:
