Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Component Locations
>>
4WD
4WD

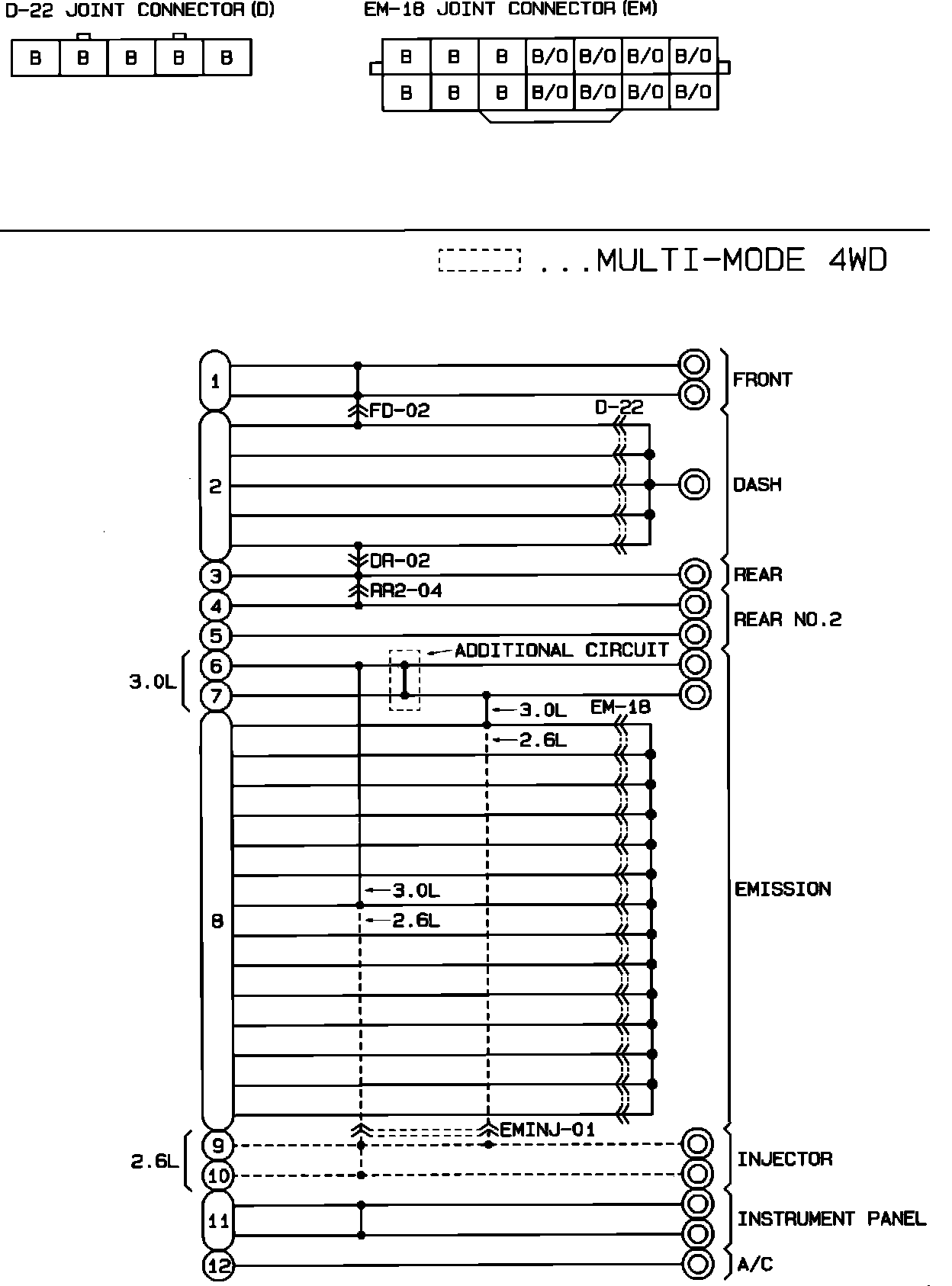

Ground Circuit & Connector Identification. 4WD:
