Component Locations

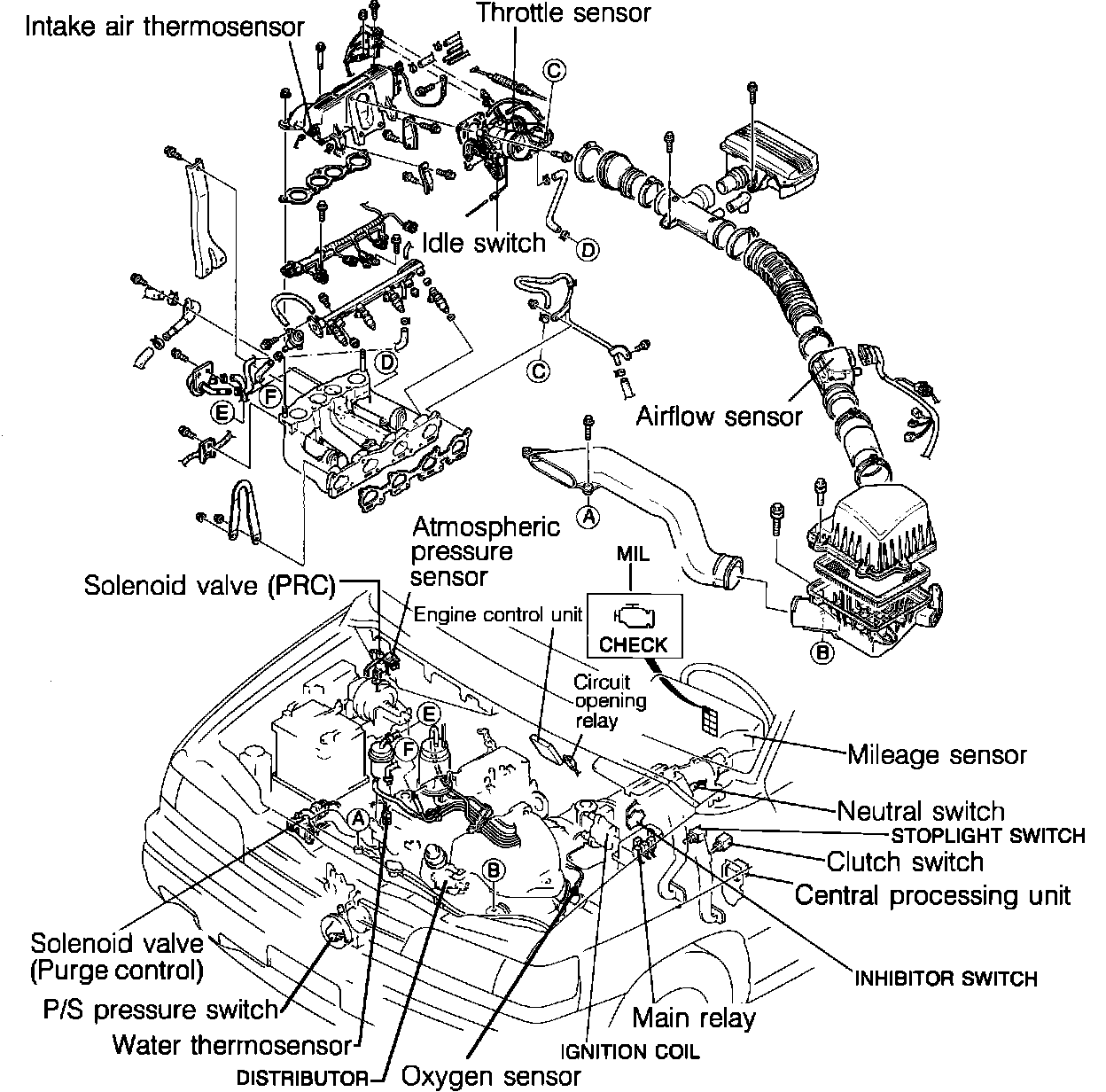

Fig. 4 Component Locations:

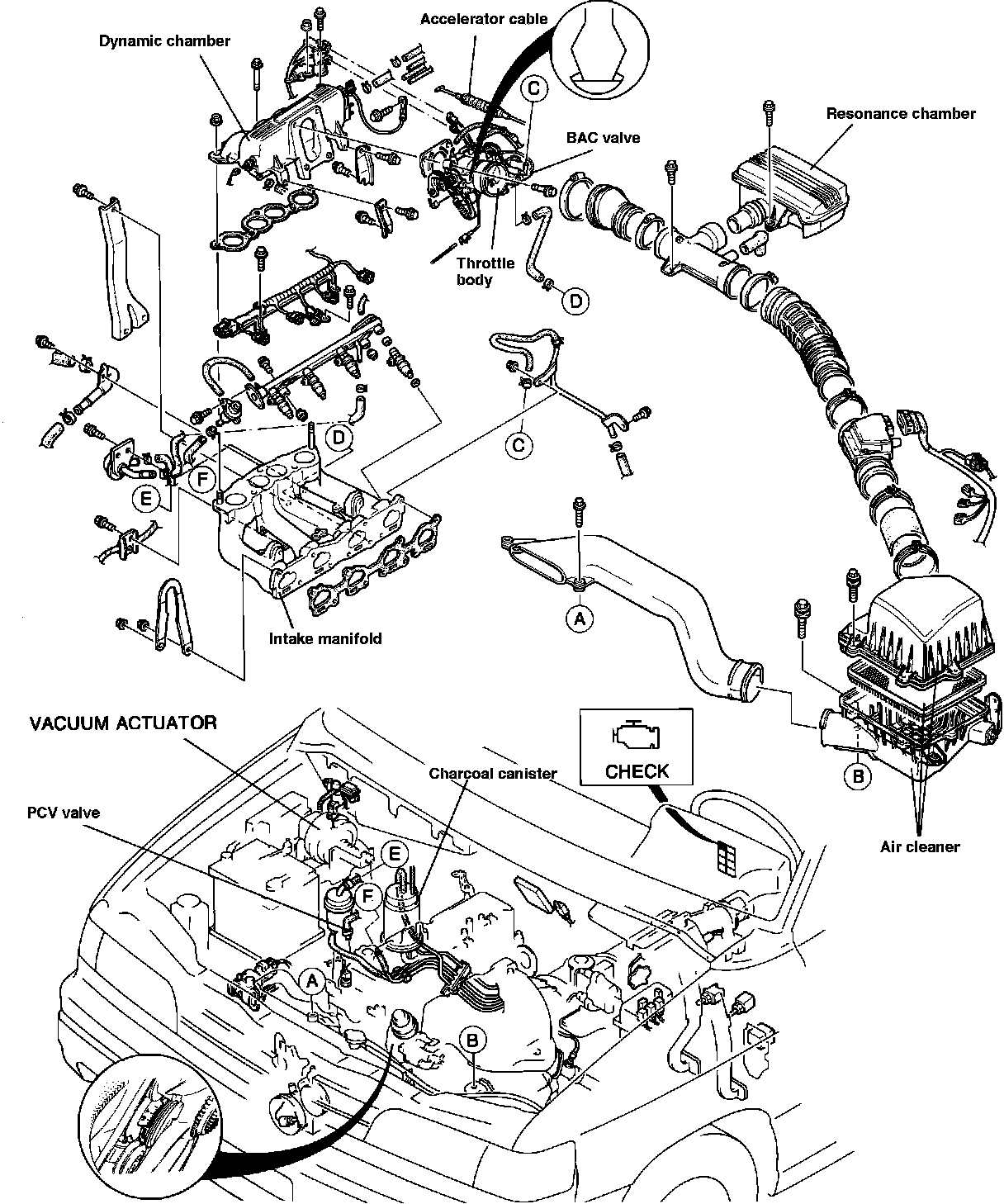

Fig. 5 Component Locations:

AIR FLOW METER
Mounted on the intake boot between the air cleaner box and the throttle chamber.

AIR VALVE
Integrated into the By-Pass Air Control (BAC) Valve, mounted to the throttle chamber.

ATMOSPHERIC PRESSURE SENSOR
Mounted to the top of the firewall on the right side.

BY-PASS AIR CONTROL (BAC) VALVE
Mounted to the throttle chamber.

CENTRAL PROCESSING UNIT
Mounted to the body in the L.F. kick panel.

CHECK CONNECTORS
GREEN 6-Pin connector (for self-diagnosis checker) L.F. corner of the engine compartment.

CIRCUIT OPENING RELAY
Located in the front passenger's footwell area next to the ECU.

CLUTCH SWITCH
Mounted to the control pedal bracket in the drivers compartment.

CRANK ANGLE SENSOR
Integrated into the distributor.

DISTRIBUTOR
Mounted to the front of the cylinder head.

EGI MAIN FUSE
Located in the main fuse panel.

EGI MAIN RELAY
Located in the relay box mounted to the inner L.F. fender well near the firewall.

ENGINE CONTROL UNIT
Located in the front passenger's footwell area.

FUEL PUMP
Located in the fuel tank, on top.

IDLE SPEED CONTROL (ISC) VALVE
Integrated into the BAC Valve, mounted to the throttle chamber.

IDLE SWITCH
Integrated into the throttle sensor. Mounted on the throttle chamber.

IGNITER
Mounted on the inner side of the L.F. fenderwell near the ignition coil.

IGNITION SWITCH
Mounted on the steering column.

INHIBITOR SWITCH (A/T ONLY)
Mounted on the transmission at the selector shaft.

INJECTOR
In the intake manifold near the cylinder head.

INTAKE AIR THERMOSENSOR
Screwed into the front of the dynamic chamber.

MAIN RELAY
Mounted to the inner fenderwell at the L.R. corner of the engine compartment.

MALFUNCTION INDICATOR LIGHT (MIL)
Located in the instrument cluster.

NEUTRAL SWITCH M/T ONLY)
Screwed into the R.H. side of the transmission tailhousing.

OXYGEN SENSOR
Screwed into the exhaust manifold.

POWER STEERING LOAD SWITCH
Screwed into the high-pressure line at the steering rack.

PURGE CONTROL SOLENOID
Mounted o0n the L.F. frame rail near the battery.

STOP LIGHT SWITCH
Mounted to the control pedal bracket in the drivers compartment.

TEST CONNECTOR
GREEN 1-Pin connector (for self-diagnosis checker, idle speed and timing adjustment) L.F. corner of the engine compartment.

THROTTLE SENSOR
Integrated with the idle switch. Mounted on the throttle chamber.

WATER THERMOSENSOR
Screwed into the thermostat housing near the top radiator hose.
