Disassembly/Assembly

Distributor Assembly:

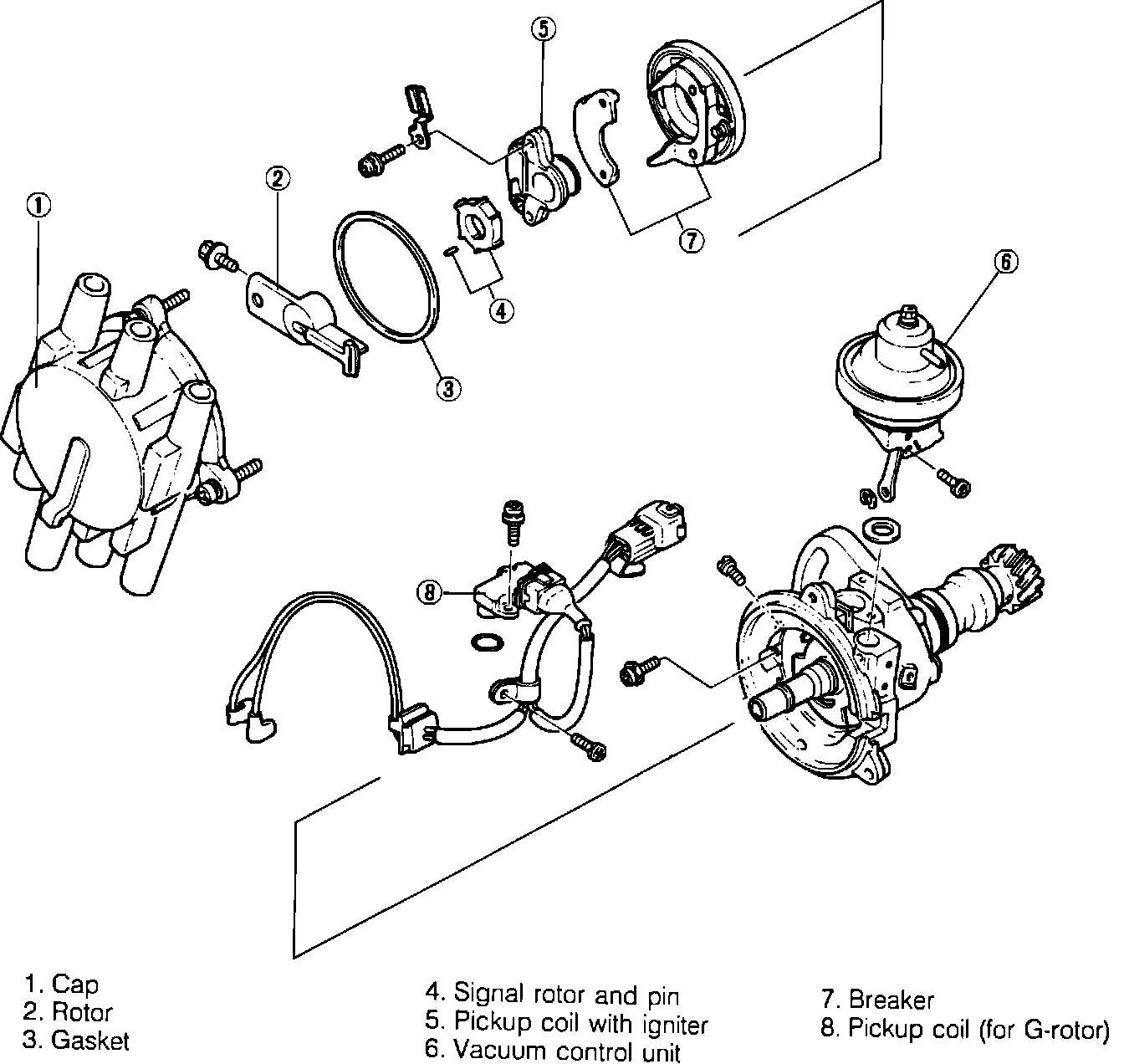

V6

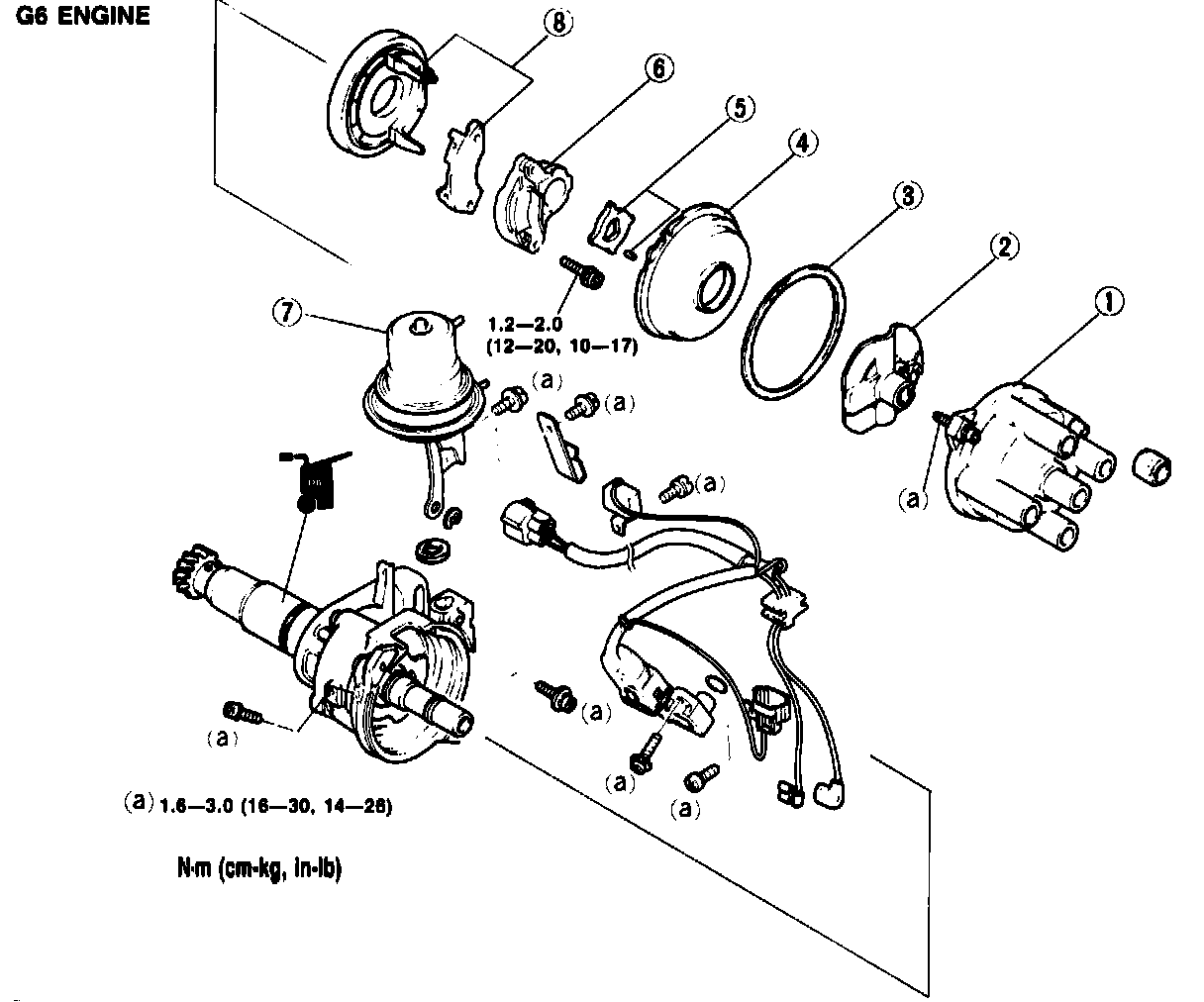

L4
Begin disassembly at # 1 in diagram. Assemble in reverse order.
