Hydraulically Controlled A/T

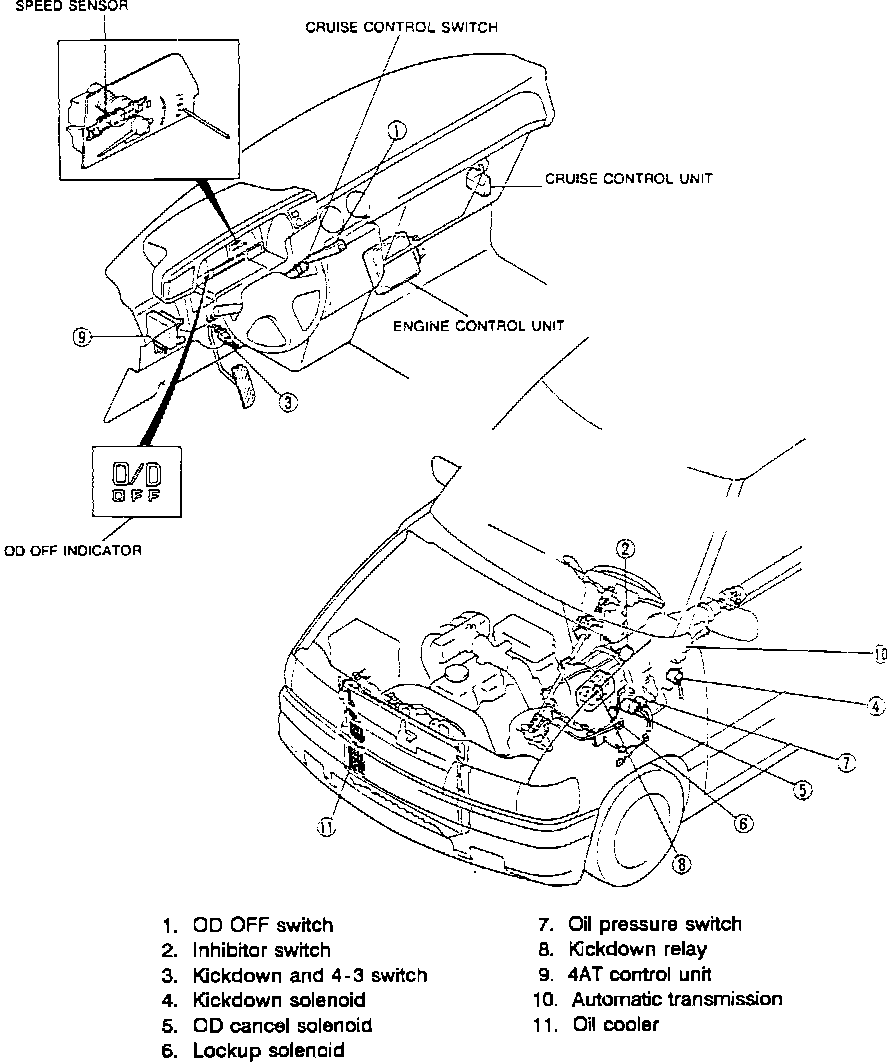

Hydraulically Controlled Automatic Transmission Components:




Behind LH Side Of Engine Compartment
