Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1990
>>
929 V6-3.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
>>
Ignition Switch
Ignition Switch

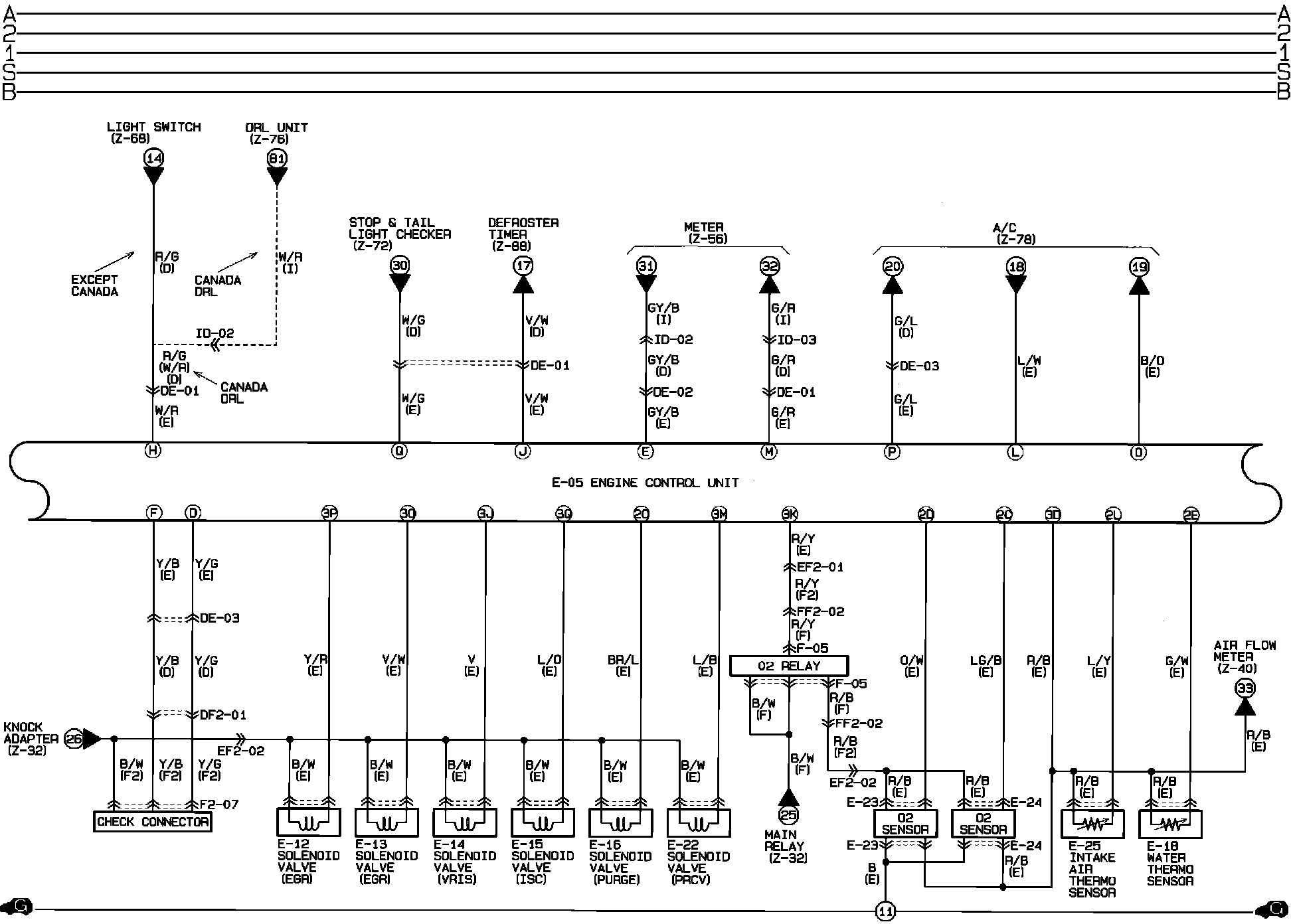

Ignition & Engine Control System. DOHC Engine:

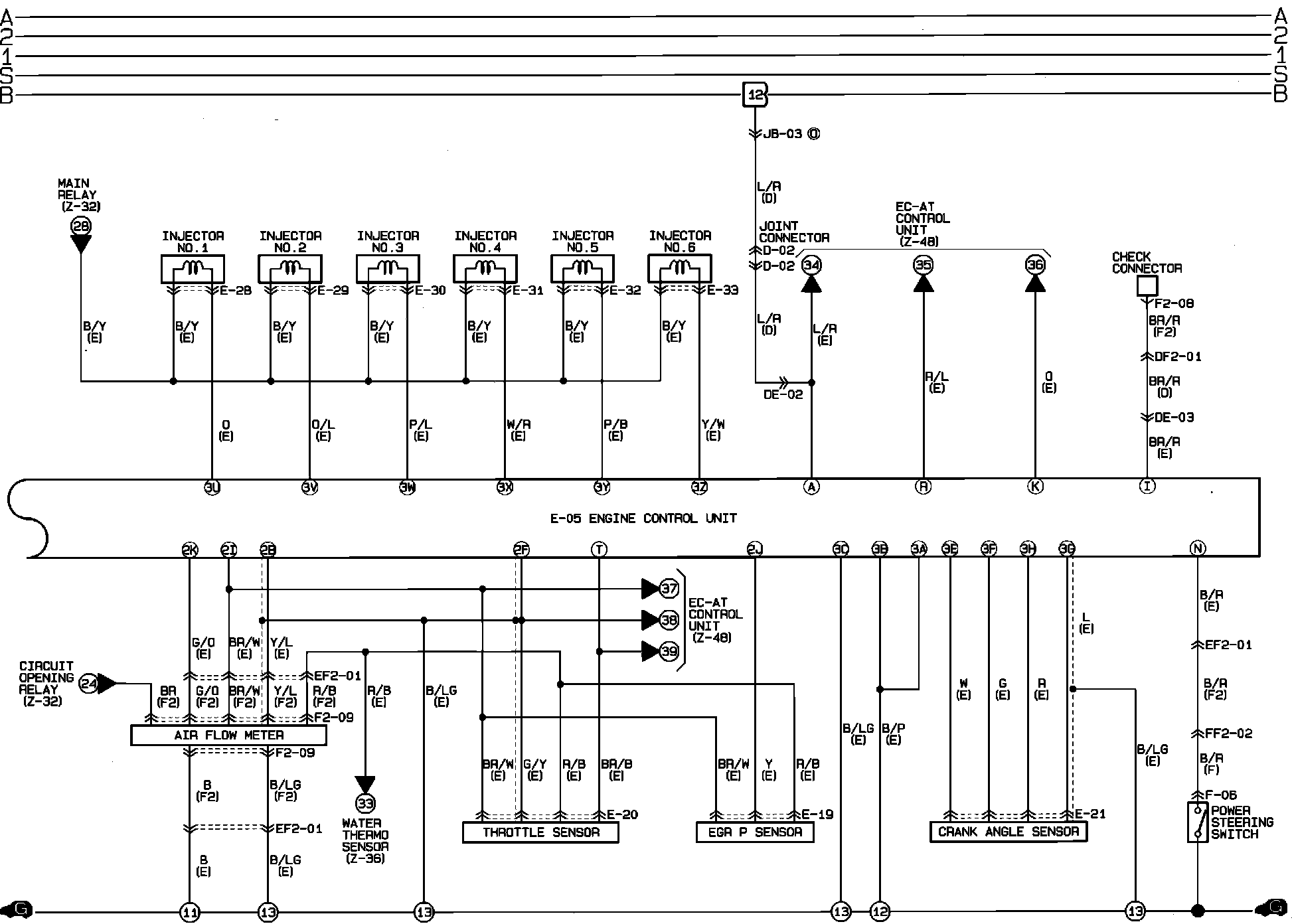

Ignition & Engine Control System. DOHC Engine:
Ignition & Engine Control System. DOHC Engine:
