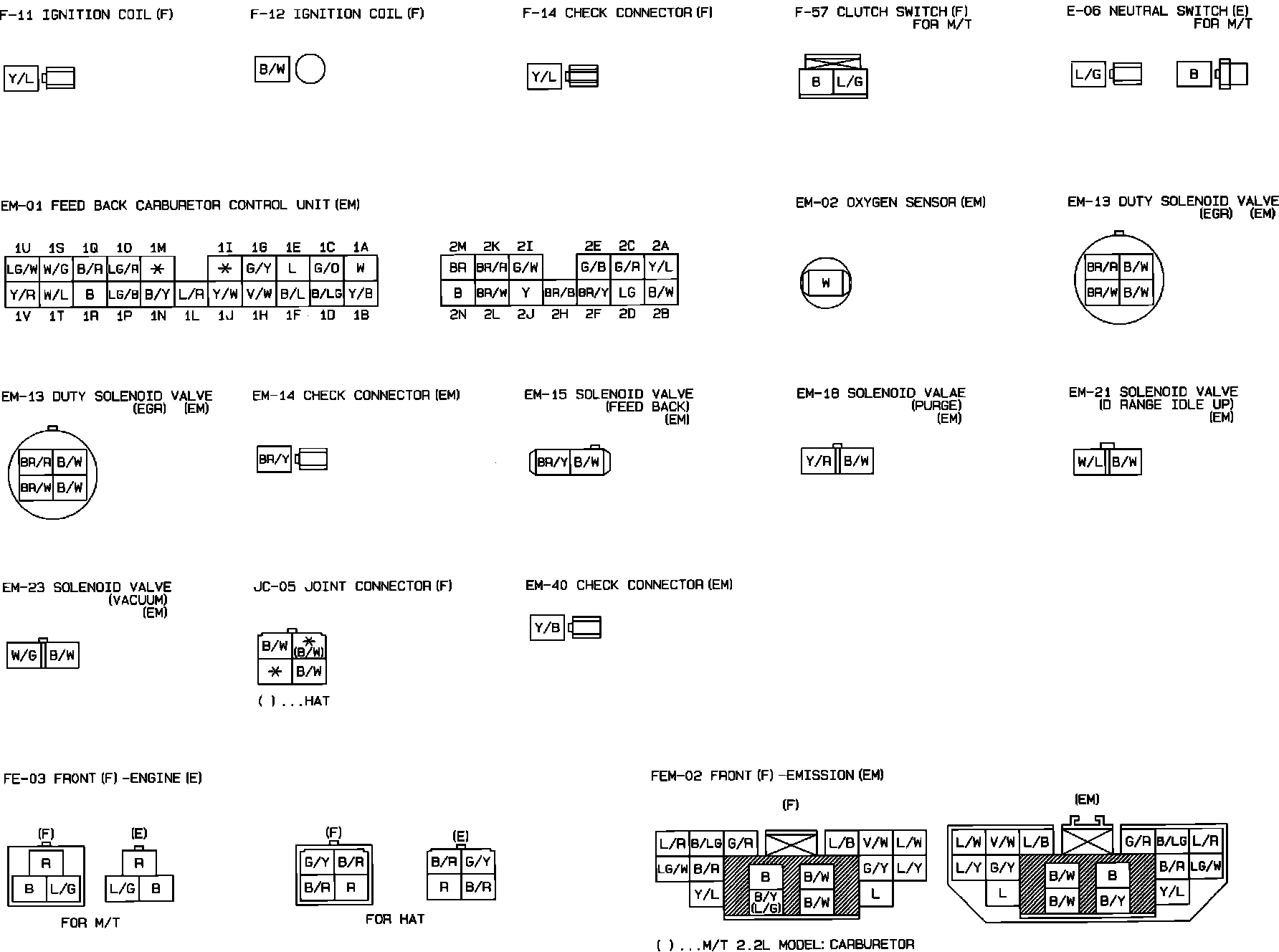

Ignition System & Feedback Carburetor Control. 2.2L. Connector Identification:

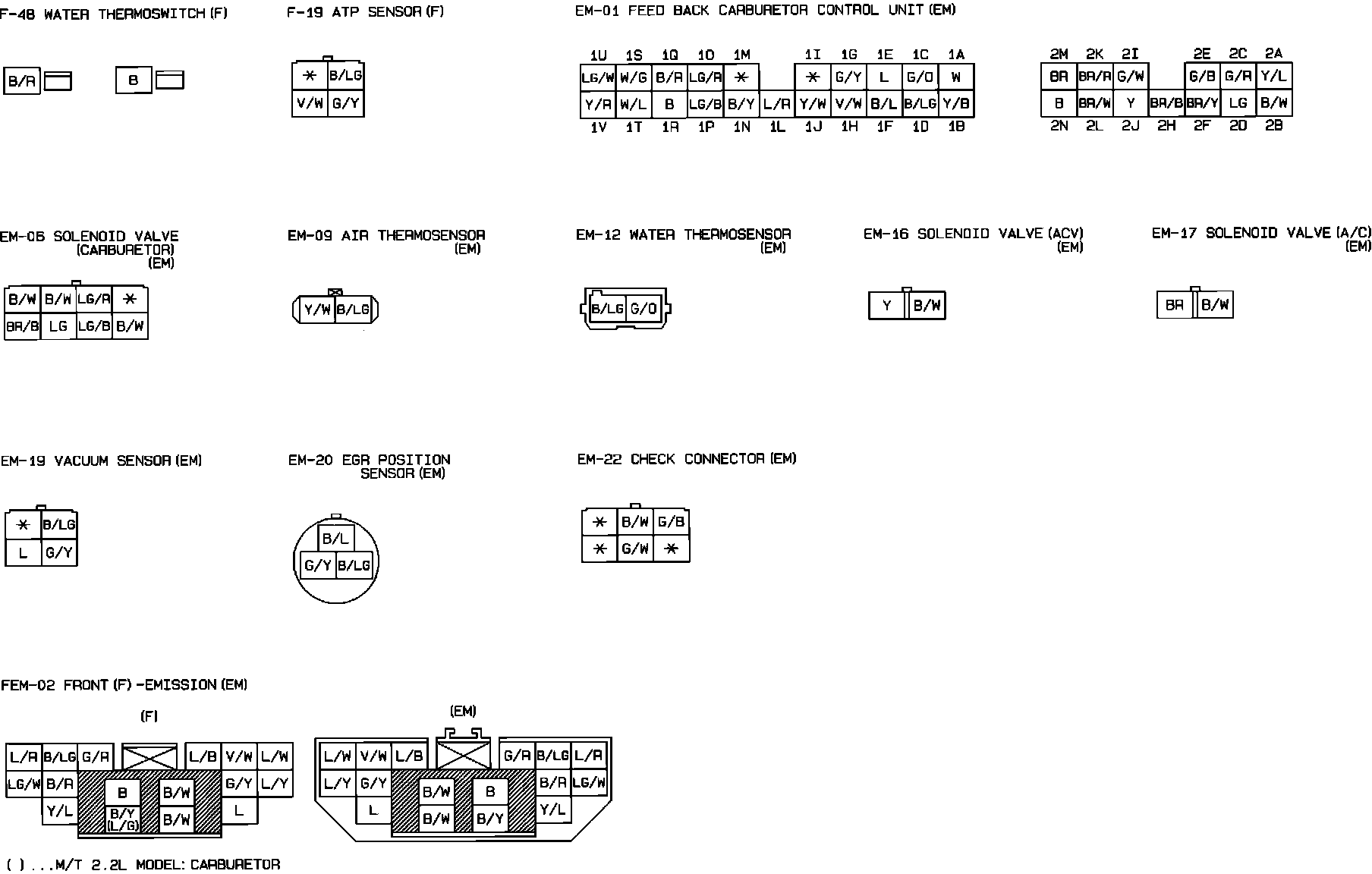

Feedback Carburetor Control System. 2.2L.. Connector Identification:
