Torque Specifications

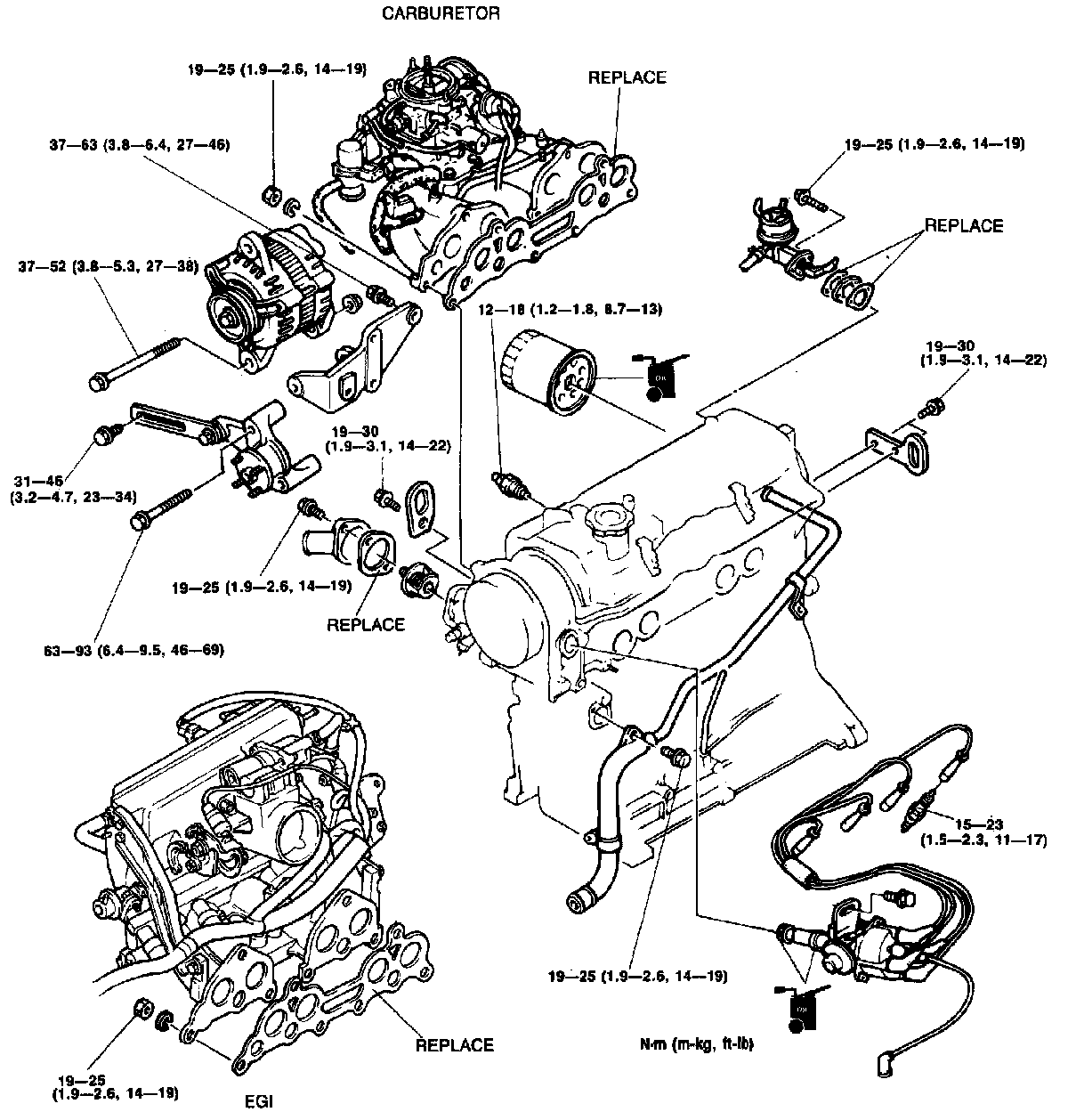

Intake (Carb & EFI):

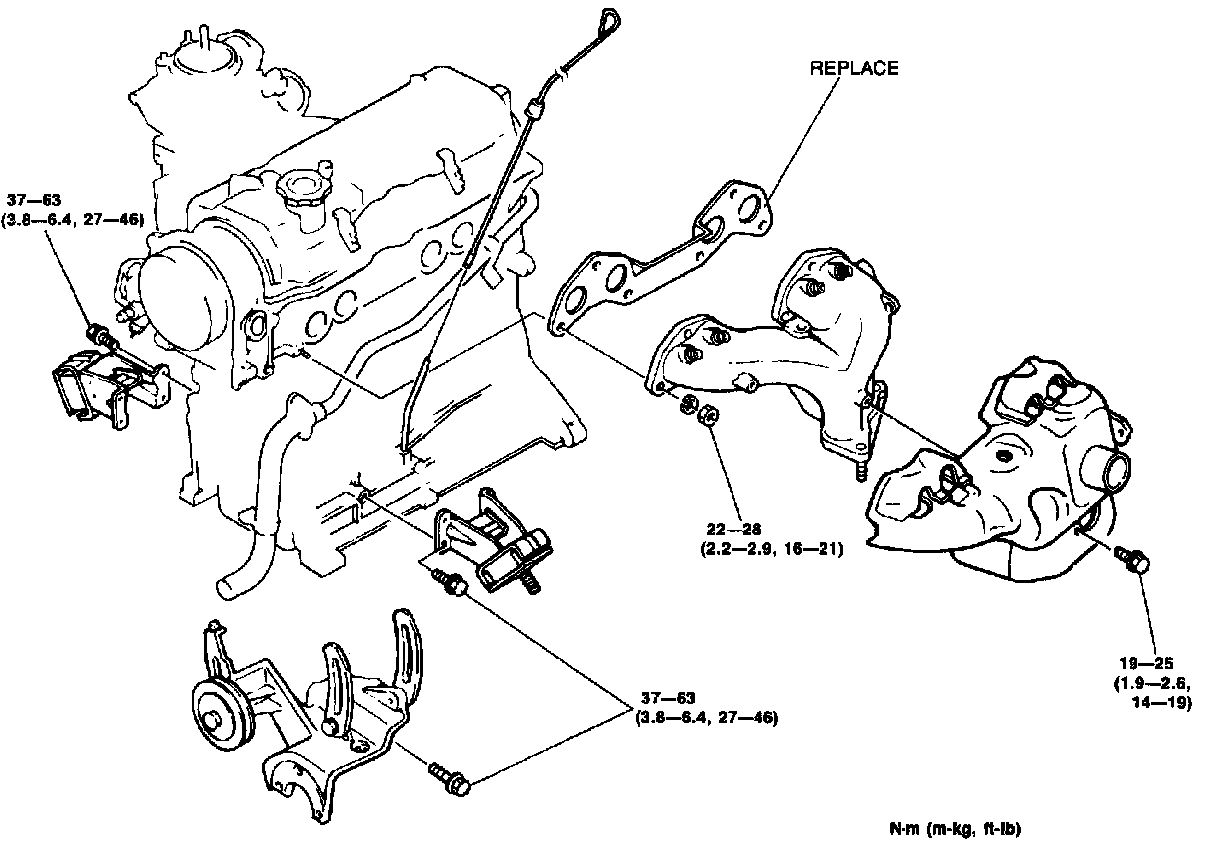

Exhaust Manifold:

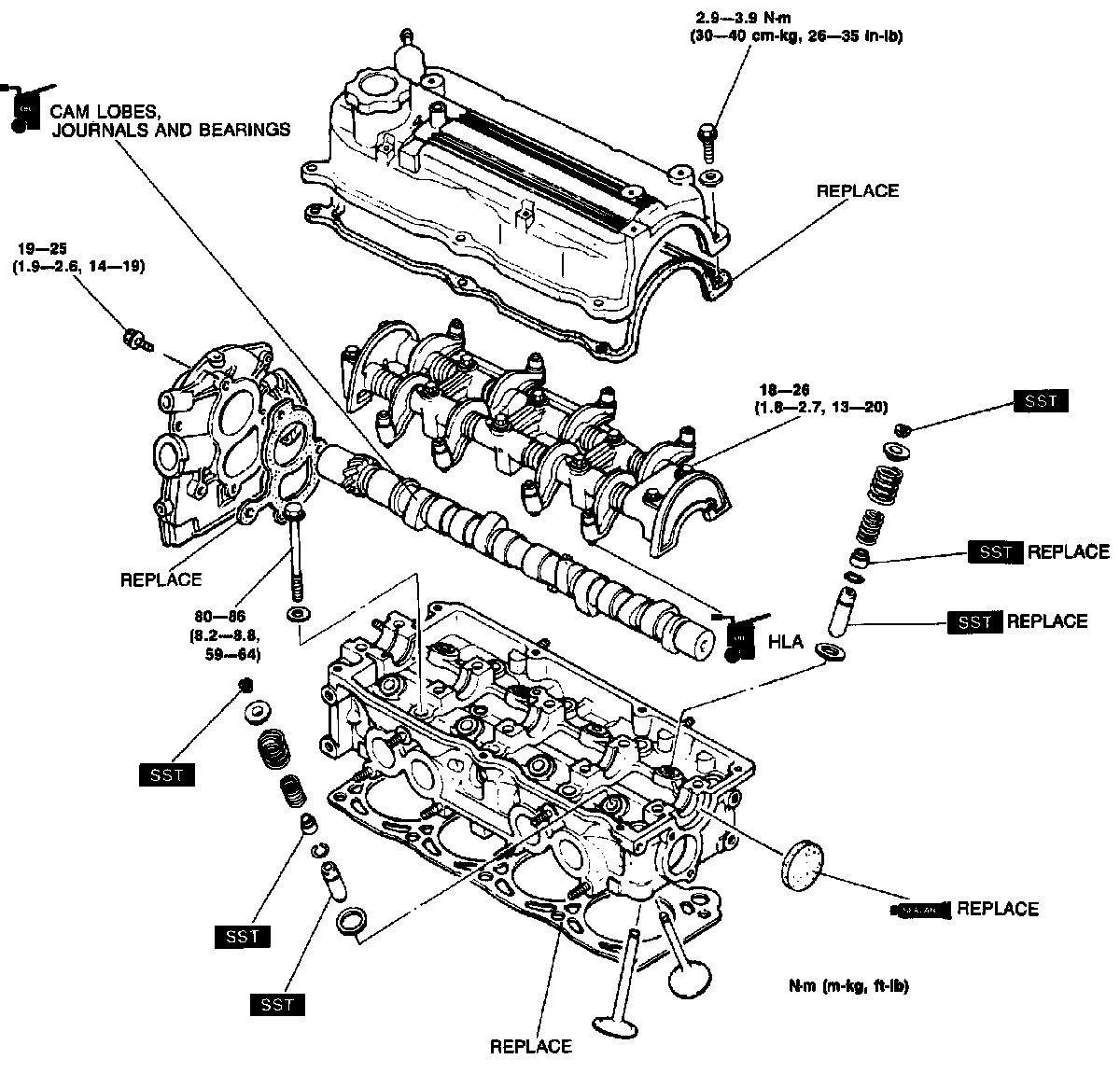

Upper Engine:

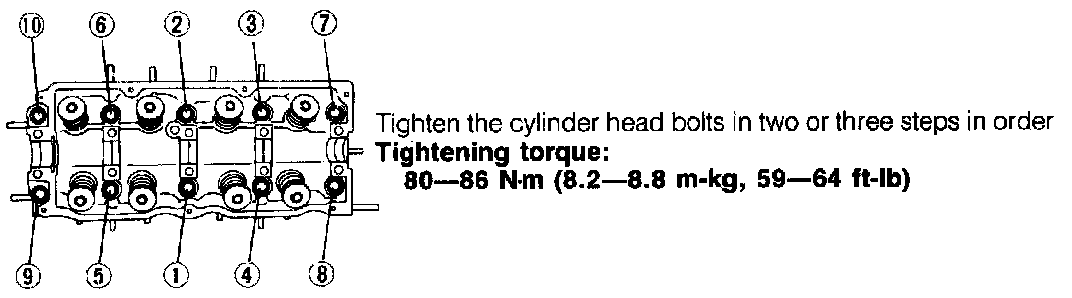

Head Bolt Torque/Sequence:

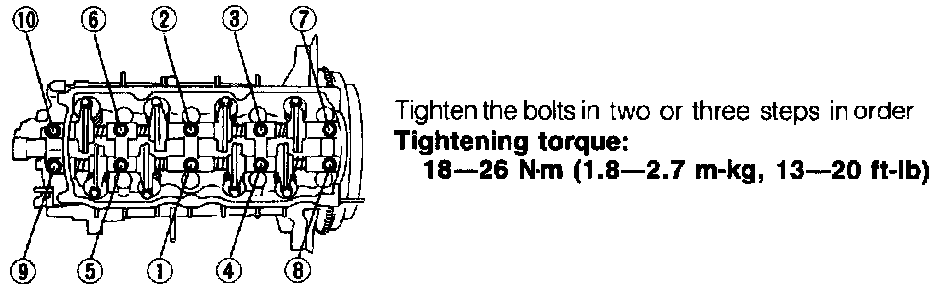

Rocker Assembly Torque/Sequence:
